2. Installation of RKRTW
The RKRTW thermostat is wall-mounted, with supplied screws
and plugs. Refer to figure 1.
Cabling towards the indoor system (field supply) should be
foreseen in advance taking the suggestions for an ideal
installation location into account. Refer to figure 2.
Before obtaining access to terminals, all power
supply circuits must be interrupted.

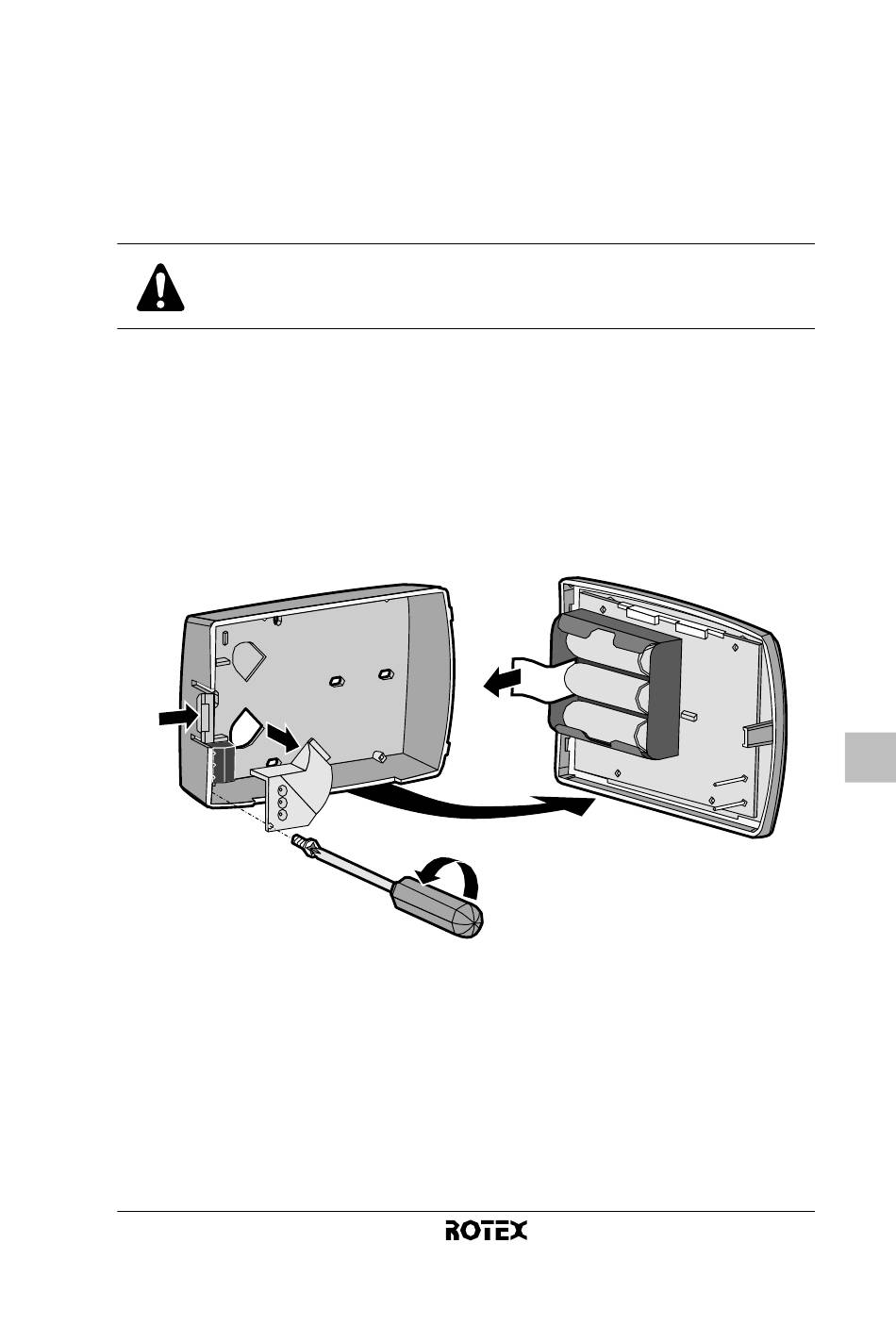

1 At the left of the thermostat, gently push the lid.
2 Remove the front cover by pulling it towards you.
3 Unscrew the screw of the cable holder in the bottom left
corner of the back part of the thermostat and remove the
transparent cable protection.
4 Remove the battery insulator.
1
3 3
5 Drill holes in the wall taking the dimensions of the thermostat
into account and insert the supplied plugs in the holes.
Refer to figure 3 (unit of measurement: mm).
RKRTW
Room thermostat
4PW50082-1
4
2
3
Installation manual
