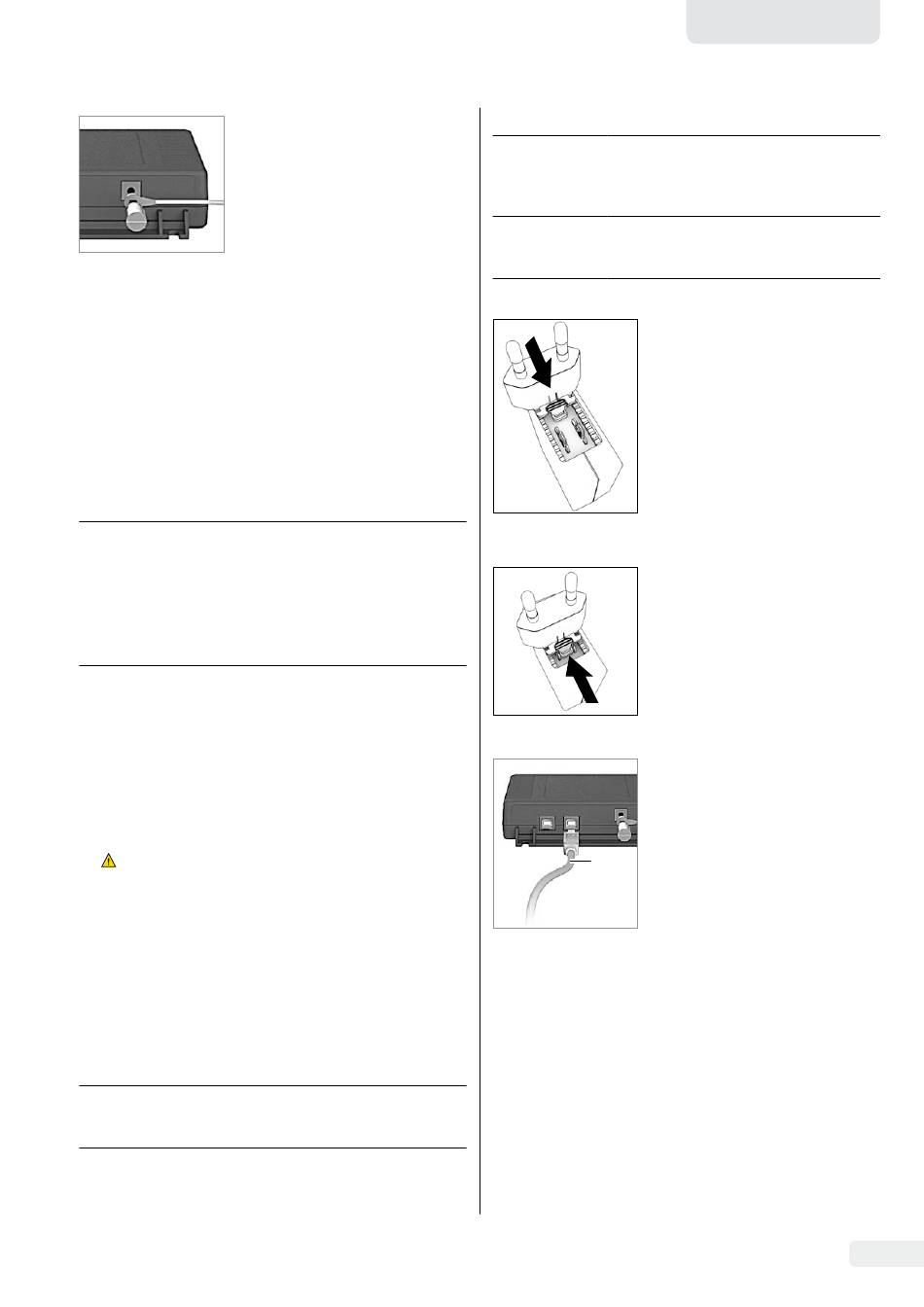

Connect the ex-link converter to
the equipotential bonding conduc-
tor using another equipotential
bonding cable with a gauge of at
least 4 mm
t
t
3.6

Establishing the Power Supply

Required qualification: Electrician
The scale is connected to the power supply via a PC/
notebook or using the optional AC adapter YEPS01-USB
(see Chapter "6 Accessories", page 10), which is supplied with
mains adapters for use in various countries.
NOTICE
− Ensure that the voltage rating printed on the AC adapter
is identical to your local mains voltage (connection data
see Chapter "8.1 General Data," page 11).
− If the stated supply voltage or the plug design of the AC
adapter does not comply with your country's standard,
please inform your nearest Sartorius representative.
Power supply via the AC adapter is only required:
− When no PC or notebook is available.
− In exceptional cases, when the output voltage of the
USB interface of the PC or notebook is not sufficient.
AC adapter assembly is described in the following.
3.6.1 Installing AC Adapter
WARNING Lethal electric shock and equipment
t
damage due to incorrect power plug adapter! Only use
the country-specific power plug adapter. Never plug
the power plug adapter into the socket when it is
disconnected from the AC adapter.
Select the correct mains adapter for your mains power
t
supply. The mains adapter must be suitable for use with
the wall outlet at the installation site.
Mains adapter sets
Bag Region/country
YEPS01-PS1 − USA and Japan (US+JP)
− Europe (EU)
− United Kingdom (GB)
.
2
Connect the cable lug of the
equipotential bonding cable to
the grounding terminal of the
ex-link converter.
Connect the equipotential
bonding cable to the custom-
er-supplied equipotential
bonding conductor.
Bag Region/country
YEPS01-PS6 − Argentina (AR)
− Brazil (BR)
− Australia (AU)
− South Africa (ZA)
YEPS01-PS7 − China (CN)
− India (IN)
− Korea (KR)
t
t
t
y
Removing/Replacing the Mains
Adapter
t
t
Connecting a PC/Notebook
t
1
EVO1X | LAB1X Installation Instructions
English
Insert the power plug adapter
into the power supply. The
grooved button must be facing
upwards.
Push the power plug adapter as
far as you can until it clicks into
place.
Check whether the power plug
adapter is securely locked in
place by pulling it gently.
If the power plug adapter does
not move, it is locked in place.
Press the grooved button from
above and pull back on the
mains adapter.
Push the power plug adapter
out of the power supply and
remove it.
Insert a USB cable (1) into
the right-hand socket on the
ex-link converter and connect
the cable to a PC or notebook.
If the ex-link converter
YCO14-Y is being used and
installed in Zone 2 or Division 2
potentially explosive areas and
the USB cable (1) does
not have an intrinsically safe
electrical circuit, the cable
must be secured against
disconnection. Refer to the
Control Drawing 2021459 and
Safety Instructions 2023040
from Page 53 as well as the
following illustrations.
