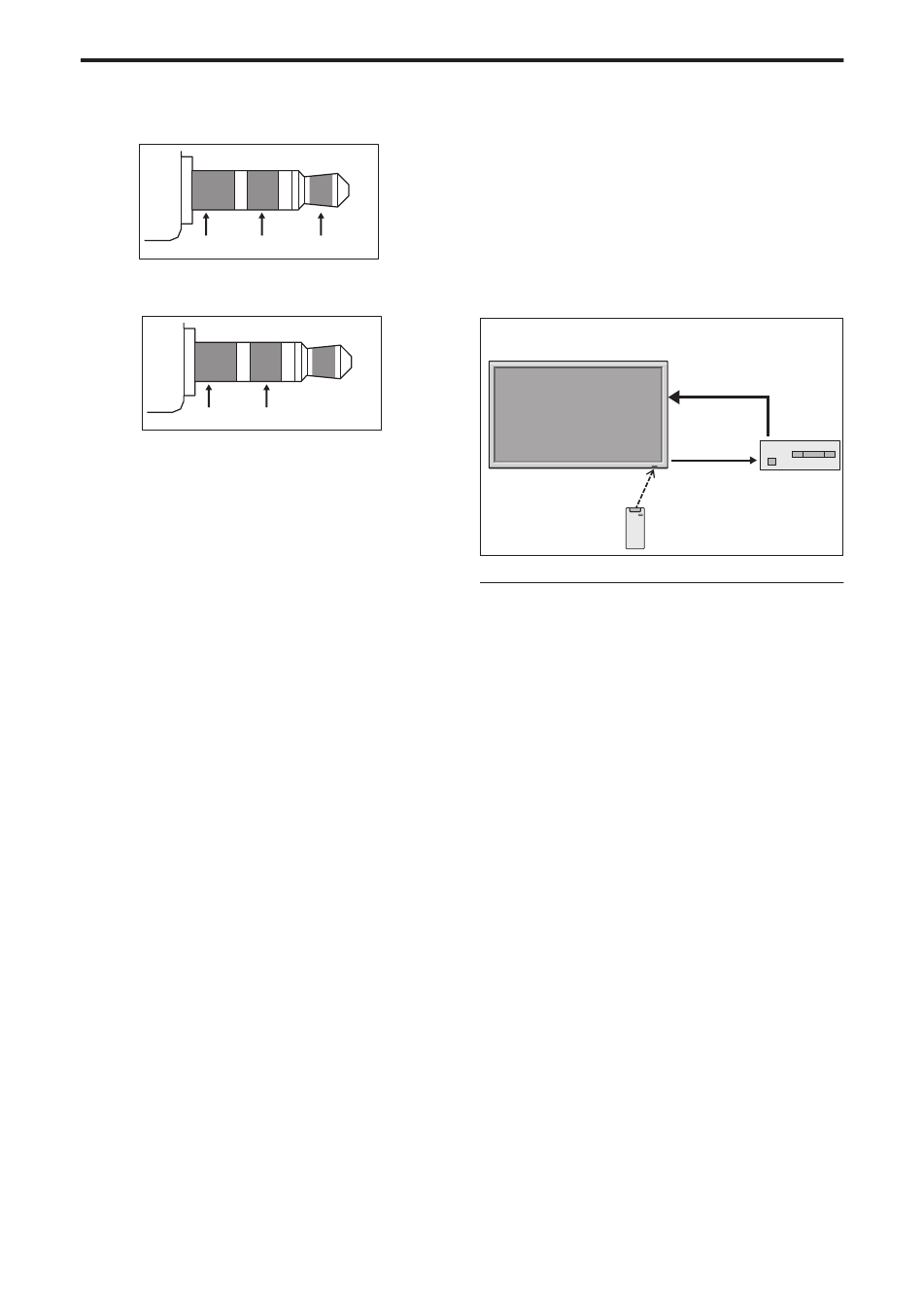

1/8 Stereo Mini Jack (not supplied)
for REMOTE IN/OUT
Plasma monitor REMOTE IN
GND DATA (DC +5 V)
Plasma monitor REMOTE OUT
GND DATA (C-MOS DC +5 V)
VDD (DC +3 V)
En-40

Connection with STB

Following is the connection example of STB (Set-top Box)
using the REMOTE IN/OUT connectors of the plasma
monitor. Consult your dealer about the actual connection
and operation.
* Connection Example
• STB has the REMOTE IN connector.
• The pin assignment of the REMOTE IN connector of
STB is same as that of 1/8 stereo mini cable connected
to the REMOTE OUT connector (En-40).
• The transmit frequency of the remote control of STB is
37.9 kHz (Typical).
Connection Example: Connecting an STB
PLASMA DISPLAY
STB
Remote Control
Carrier fHz: 37.9 kHz (Typical)
* The 1/8 Stereo Mini cable must be purchased separately.
Video cable
IN
OUT
STB
OUT IN
Remote cable*
