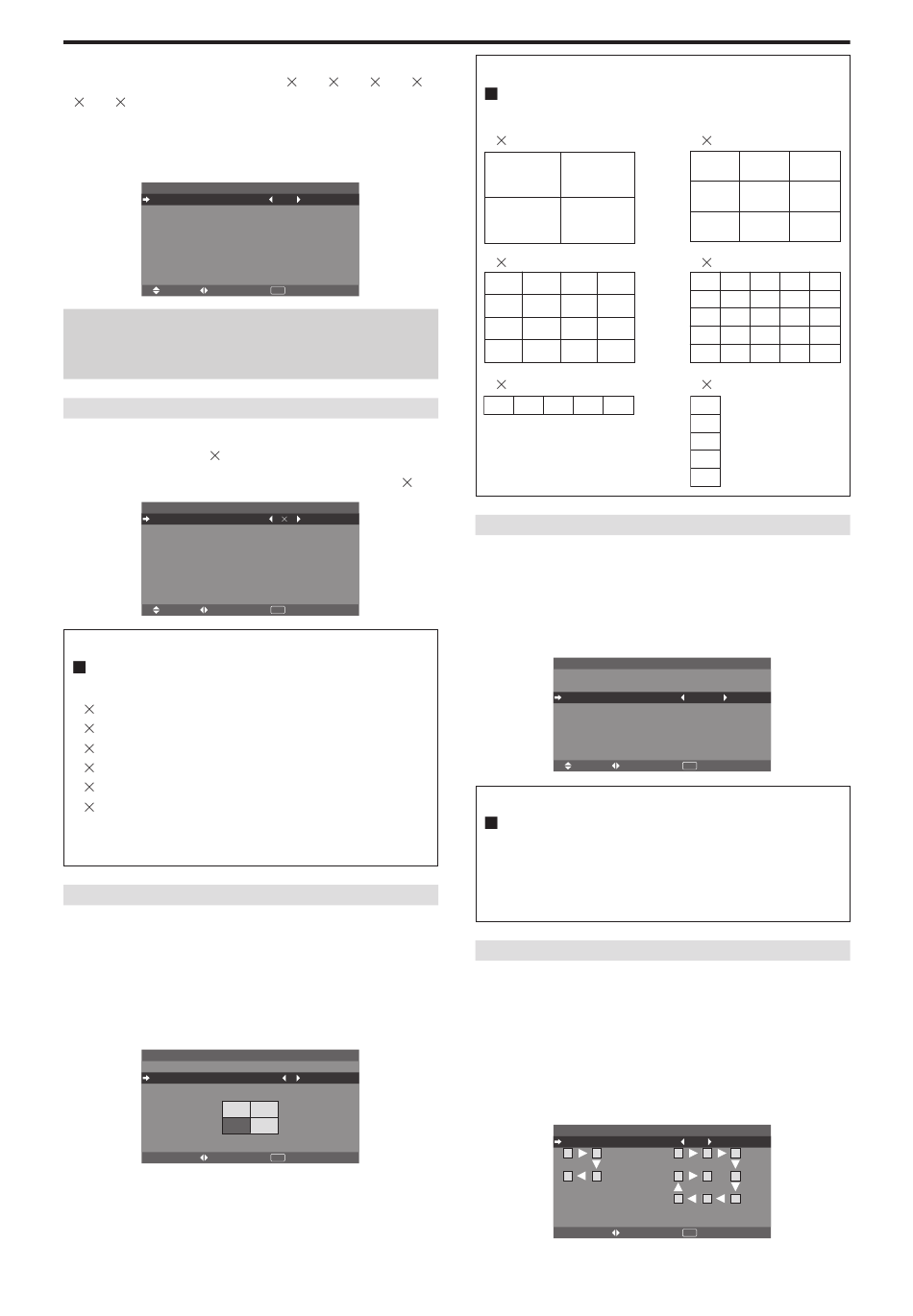

Video Wall setting

Use this feature to configure a (2 2, 3 3, 4 4, 5 5,
5 1, 1 5) video wall.
On "OPTION3" menu, select "VIDEO WALL", then press
the MENU/ENTER button.
The "VIDEO WALL" screen appears.
VIDEO WALL
DIVIDER
POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
SEL. ADJ.
Note: A contingency method of shutting off the electric
power should be used in cases of emergency during video
wall setup.
DIVIDER
Set the video wall.
Example: Setting "2 2"
On "DIVIDER" of "VIDEO WALL" menu, select "2 2".
VIDEO WALL
DIVIDER
POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
SEL. ADJ.
Information
DIVIDER settings
OFF, 1: 1 Screen (Matrix display function does not work)
2 2: 4 Screens
3 3: 9 Screens
4 4: 16 Screens
5 5: 25 Screens
5 1: 5 Screens horizontally
1 5: 5 Screens vertically
* When you select 2×2, 3×3, 4×4, 5×5, 5×1, 1×5, set the
VIDEO WALL POSITION.
VIDEO WALL POSITION
Set the position of each display.
Example: Setting "4"
On "VIDEO WALL" menu, select "POSITION", then press
the MENU/ENTER button.
The "VIDEO WALL POSITION" screen appears.
Select "4" of "POSITION NO.".
VIDEO WALL POSITION
POSITION NO.
ADJ.
: OFF
: SPLIT
: OFF
: OFF
: OFF
EXIT RETURN
: 2 2
: SPLIT
: OFF
: OFF
: OFF
EXIT RETURN
4
RETURN
EXIT
Information
VIDEO WALL POSITION settings
1 Screen: There is no need to set POSITION.
2 2 Screens
NO. 1 NO. 2
NO. 4 NO. 3
4 4 Screens
NO. 16 NO. 17 NO. 18 NO. 19
NO. 20 NO. 21 NO. 22 NO. 23
NO. 24 NO. 25 NO. 26 NO. 27
NO. 28 NO. 29 NO. 30 NO. 31
5 1 Screens
NO. 1 NO. 2 NO. 3 NO. 4 NO. 5
DISP. MODE
Select the screen mode between two choices (Splitting,
Blanking).
Example: Setting "BLANK"
On "DISP. MODE" of "VIDEO WALL" menu, select
"BLANK".
DIVIDER
POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
SEL.
Information
DISP. MODE settings
SPLIT: Combines enlarged screens and creates
multiple screens.
BLANK: Corrects misalignment of combined screen
portions and creates multiple screens.
AUTO ID
This feature automatically sets the ID numbers of multiple
displays connected to each other.
Example: Setting "ON"
Set the ID number for the No. 1 display on ID NUMBER
menu.
On "AUTO ID" of "VIDEO WALL" menu, select "ON",
then press the MENU/ENTER button.
AUTO ID
1 2
4 3
WIRED CABLE
En-34
3 3 Screens
NO. 7 NO. 8
NO. 10 NO. 11
NO. 13 NO. 14
5 5 Screens
NO. 32 NO. 33 NO. 34 NO. 35 NO. 36
NO. 37 NO. 38 NO. 39 NO. 40 NO. 41
NO. 42 NO. 43 NO. 44 NO. 45 NO.46
NO. 47 NO. 48 NO. 49 NO. 50 NO. 51
NO. 52 NO. 53 NO. 54 NO. 55 NO. 56
1 5 Screens
NO. 1
NO. 2
NO. 3
NO. 4
NO. 5
VIDEO WALL
: 1
: BLANK
: OFF
: OFF
: OFF
ADJ. RETURN
EXIT
AUTO ID
: ON
1 2 3
8 9 4
7 6 5
CONNECTION TURN
ADJ. RETURN
EXIT
NO. 9
NO. 12
NO. 15
