KNOW YOUR GENERATOR

Read this Operator's Manual and safety rules before operating your generator.

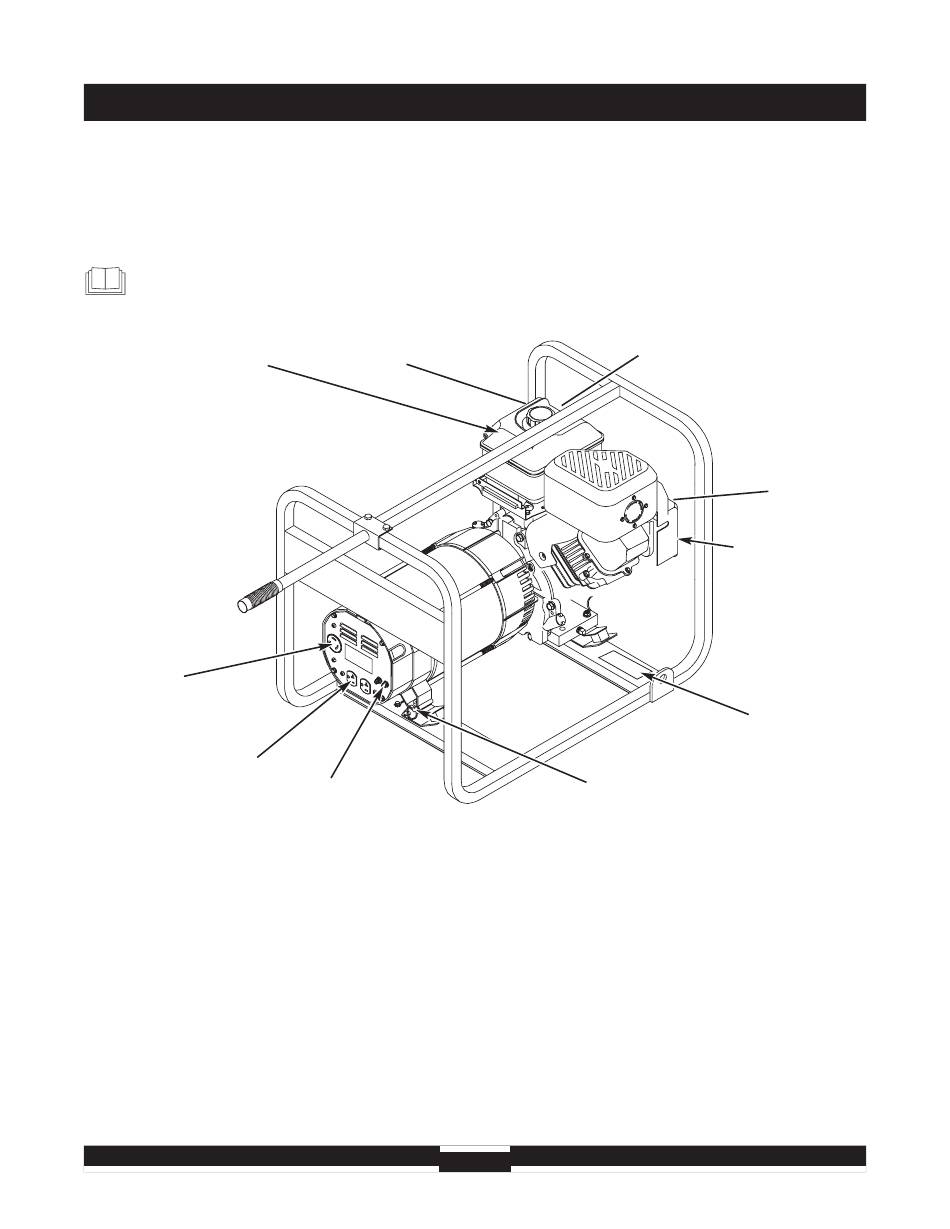

Compare the illustrations with your generator, to familiarize yourself with the locations of various controls
and adjustments. Save this manual for future reference.
Fuel Tank
120 Volt AC, 30 Amp
Locking Receptacle
120 Volt AC, 20 Amp
Duplex Receptacle
120 Volt AC, 20 Amp Duplex Receptacle — May be
used to supply electrical power for the operation of
120 Volt AC, 20 Amp, single phase, 60 Hz electrical
lighting, appliance, tool and motor loads.
120 Volt AC, 30 Amp Locking Receptacle — May be
used to supply electrical power for the operation of
120 Volt AC, 30 Amp, single phase, 60 Hz electrical
lighting, appliance, tool and motor loads.
Air Cleaner — Protects engine by filtering dust and
debris out of intake air.
Choke Lever — Used when starting a cold engine.
FEATURES AND CONTROLS
Recoil Starter
Circuit Breakers (AC)
www.mymowerparts.com
Rocker Switch
Grounding Fastener
Circuit Breakers (AC) — Each receptacle is provided
with a push-to-reset circuit breaker to protect the
generator against electrical overload.
Data Tag – Provides model, revision and serial
number of generator. Please have these readily
available if calling for assistance.
Fuel Tank — Capacity of one U.S. gallon.
Grounding Fastener — Consult your local agency
having jurisdiction for grounding requirements in your
area.
Recoil Starter — Used to start the engine.
Rocker Switch — Set this switch to "On" before using
recoil starter. Set switch to "Off" to switch OFF engine.
5
Choke Lever
Air Cleaner
Data Tag
