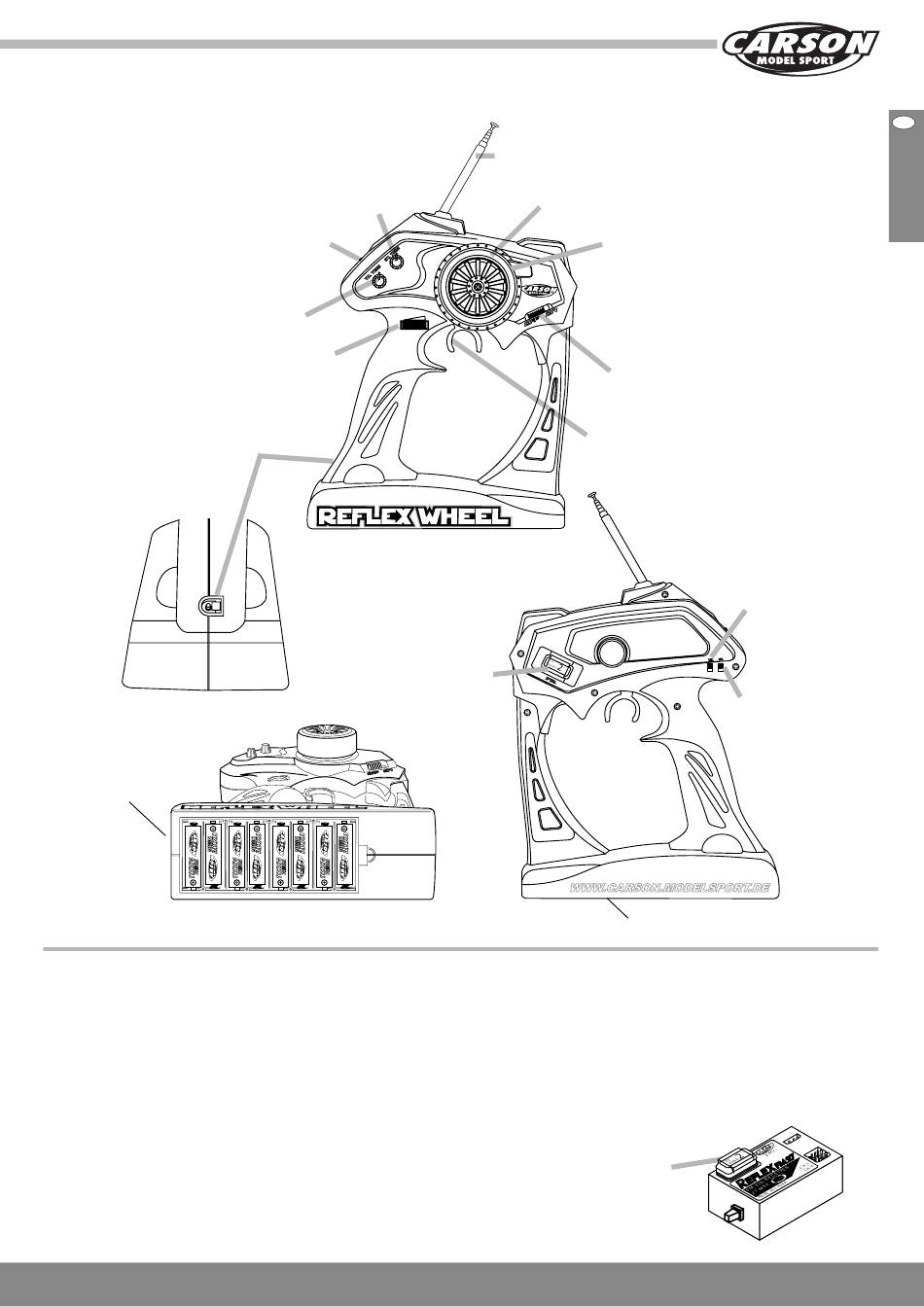

External view of transmitter
Third Channel Switch
For additional ON/OFF function
Throttle Trim
Steering Rate Adjuster
Charging Jack
Battery
Compartment
How to change the frequencies
Transmitter
• A rapid change of frequencies is possible simply
by unplugging an interchangeable plug-in crystal on
the back of the transmitter and then plugging in
another one.
• The use of crystals, other than CARSON's, may
damage the radio and invalidates our guarantee
for our products.
ST.TRIM
Steering Trim
Crystal
Identification mark:
Antenna
Steering Wheel
Power LED
Blinking LED indicates that
the batteries are getting weak.
When LED turns off, the
batteries are dead and need
to be changed to new ones.
Power Switch
Throttle Trigger
2 7
F M
TX
Battery Cover
Receiver
• Plug an interchangeable crystal into the receiver
for a rapid change of frequencies.
• Make sure that the crystal is fully inserted in the
receiver, not partially
Crystal
Identification mark:
RX
CARSON Nitrobone RTR 103014
Throttel
Servo Reverse
Channel 2
Steering
Servo Reverse
Channel 1
.
GB
