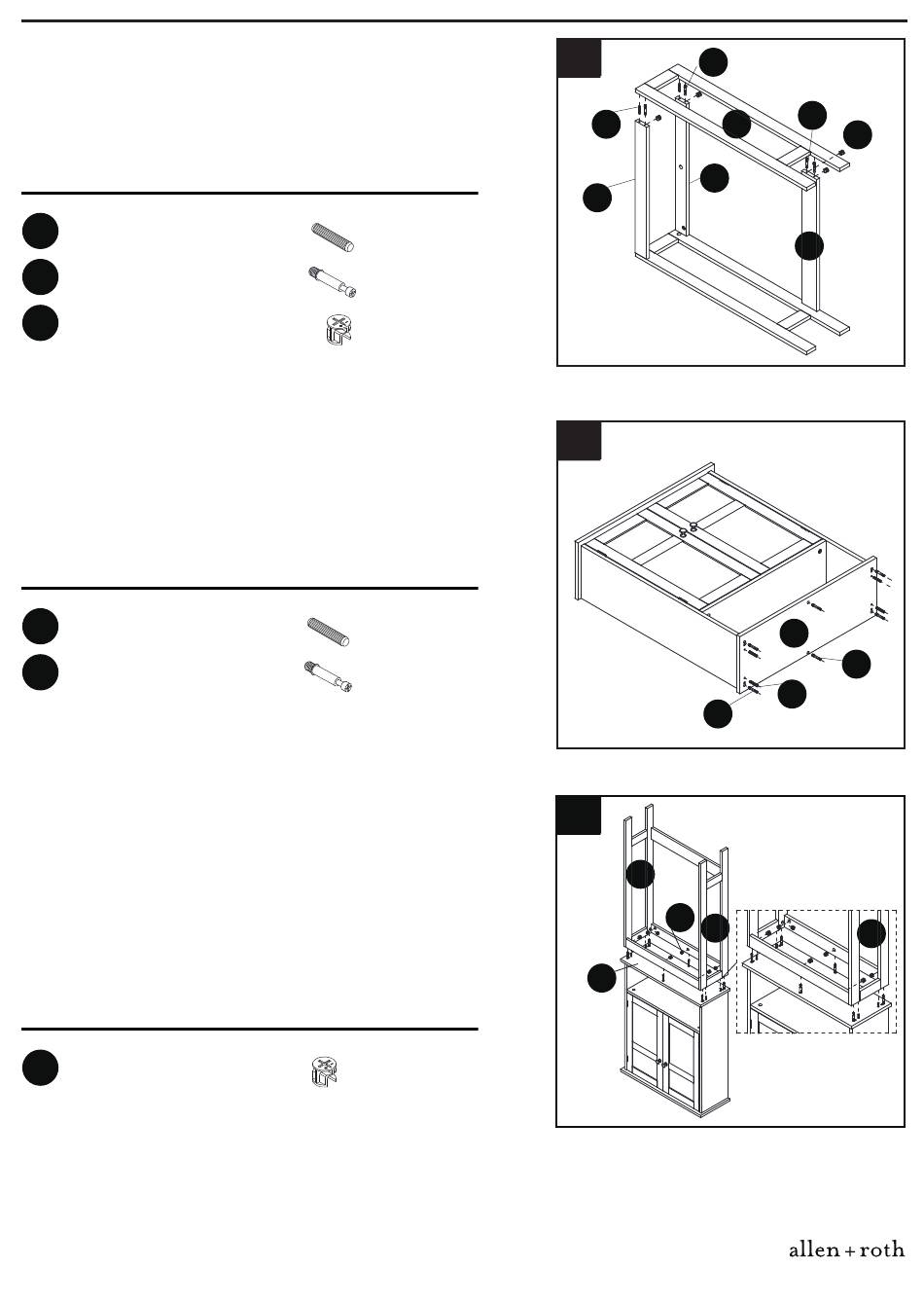

ASSEMBLY INSTRUCTIONS
9. Repeat step 8 to secure right lower side panel (L) to bottom
cross (P) and middle crosses (O).
Hardware Used
AA
Wood Dowel
BB
Metal Dowel
CC Locking Nut
10. Insert wood dowels (AA) and metal dowels (BB) where
shown into the underside of bottom panel (G).
Hardware Used
AA
Wood Dowel
BB Metal Dowel
11. With the assistance of another person, flip the top
assembly so top panel (A) rests on a flat, level surface.
Attach the bottom assembly as shown, insert locking
nuts (CC) into the appropriate holes. Secure the locking
nuts (CC) to the metal dowels (BB) using a Phillips
screwdriver.
Hardware Used
CC
Locking Nut
9
AA
O
x 2
x 4
x 4
10
x 4
x 6
11
G
x 6
7
BB
BB
L
O
P
G
AA
BB
L
CC
K
