PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble
the product.
Estimated Assembly Time:
Tools Required for Assembly (not included): Philips Screwdriver, Hammer, Electric Drill, 3/16 in. Drill Bit,
Level and Pencil.
ASSEMBLY INSTRUCTIONS

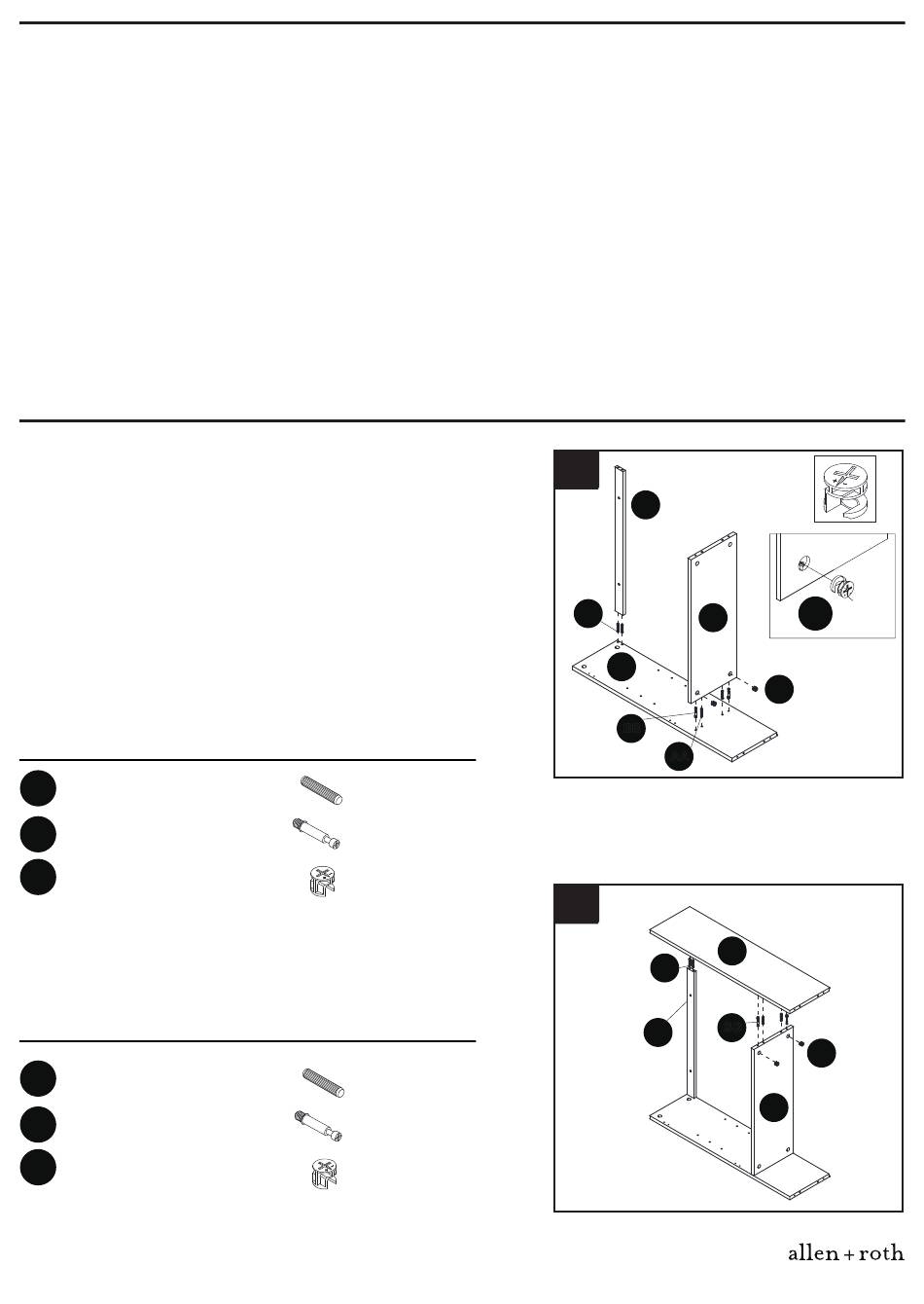

1. Lay left upper side panel (B) on a soft, flat surface. Insert
wood dowels (AA) where shown, then attach upper cross
(D) to top edge.
Insert metal dowels (BB) where shown, then attach middle
panel (F). Insert locking nuts (CC) into holes at the bottom
of middle panel (F), securing to metal dowels (BB) using a
Phillips screwdriver (not included).
Note: For ALL applicable steps, ensure the arrow indicator on
locking nuts (CC) are pointing toward the panel edge before
tightening.
Hardware Used
AA
Wood Dowel
BB
Metal Dowel
CC
Locking Nut
2. Repeat step 1 to secure right upper side panel (C) to
upper cross (D) and middle panel (F).
Hardware Used
AA
Wood Dowel
BB
Metal Dowel
CC
Locking Nut
30 minutes
x 4
x 2
x 2
x 4
x 2
x 2
1
AA
B
BB
2
4
D
CC
F
CC
AA
C
AA
BB
D
F
Lowes.com/allenandroth
Arrow
CC
™
