ASSEMBLY INSTRUCTIONS

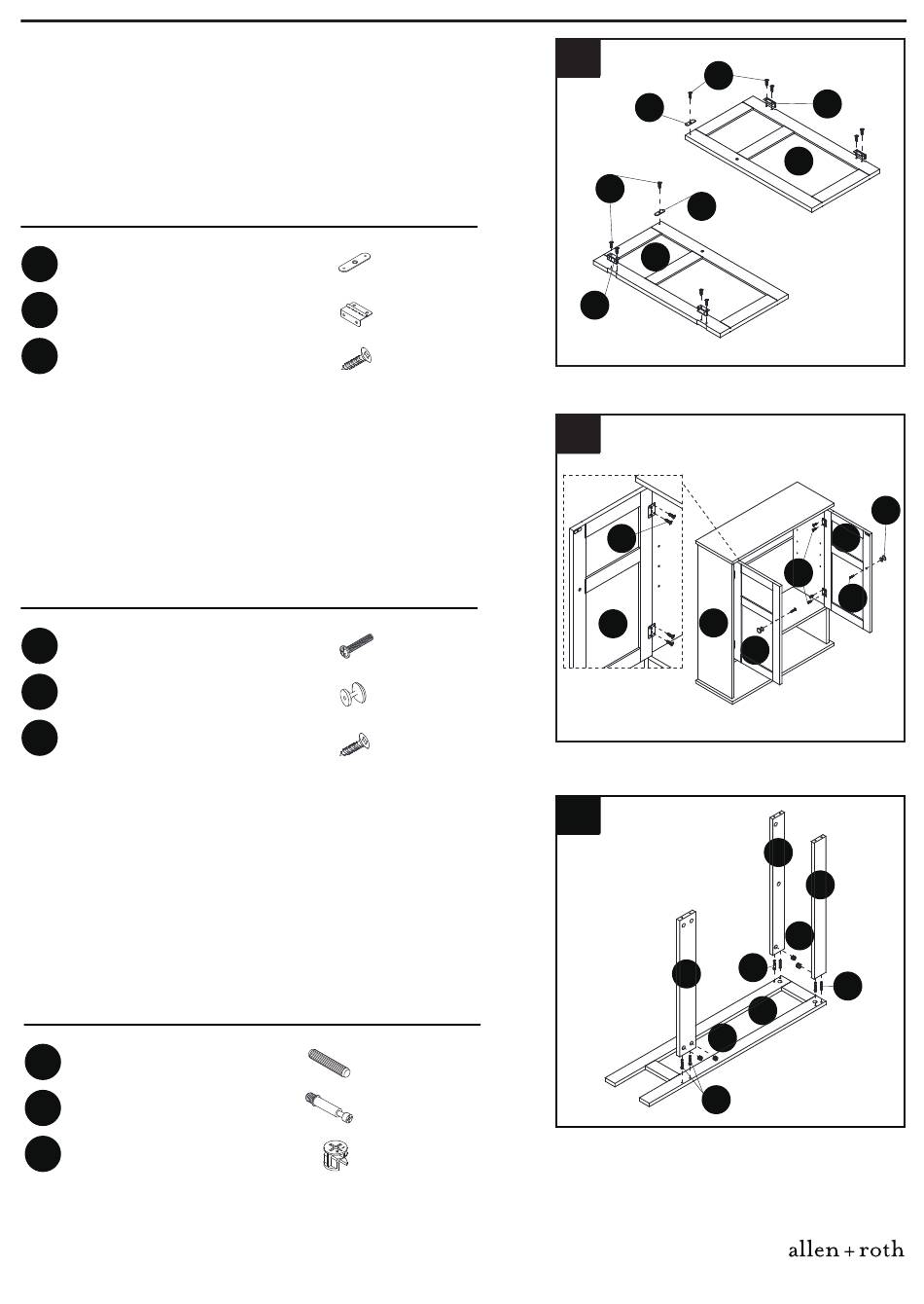

6. Attach the door catch plate (HH) to the upper inside of left
door (M) using a M3 x 10 mm screw (II) as shown. Repeat
for right door (N).
Attach door hinges (LL) to the inside edge of left door (M)
using M3 x 10 mm screws (II). Repeat for right door (N).
Hardware Used
HH
Door Catch Plate
LL
Door Hinge
II M3 x 10 mm Screw
7. Attach left door (M) to the inside of left upper side panel (B)
using M3 x 10 mm screws (II) through the open holes of
door hinges (LL). Repeat for right door (N).
Attach handles (GG) to the left door (M) and right door (N)
using a M4 x 18 mm screw (FF) through each door and
into handle (GG).
Hardware Used
FF M4 x 18 mm Screw
GG
Handle
II
M3 x 10 mm Screw
8. Lay left lower side panel (K) on a soft, flat surface. Insert
wood dowels (AA) and metal dowels (BB) where shown.
Attach middle crosses (O) and bottom cross (P) where
shown, then insert locking nuts (CC) into holes at the
bottom of each. Secure locking nuts (CC) to metal dowels
(BB) using a Phillips screwdriver.
Hardware Used
AA
Wood Dowel
BB
Metal Dowel
CC Locking Nut
6
II
x 2
LL
x 4
x 10
7
M
x 2
x 2
x 8
8
x 2
x 4
x 4
6
II
HH
M
HH
N
II
B
M
O
CC
BB
P
K
CC
BB
Lowes.com/allenandroth
LL
GG
N
II
FF
O
AA
™
