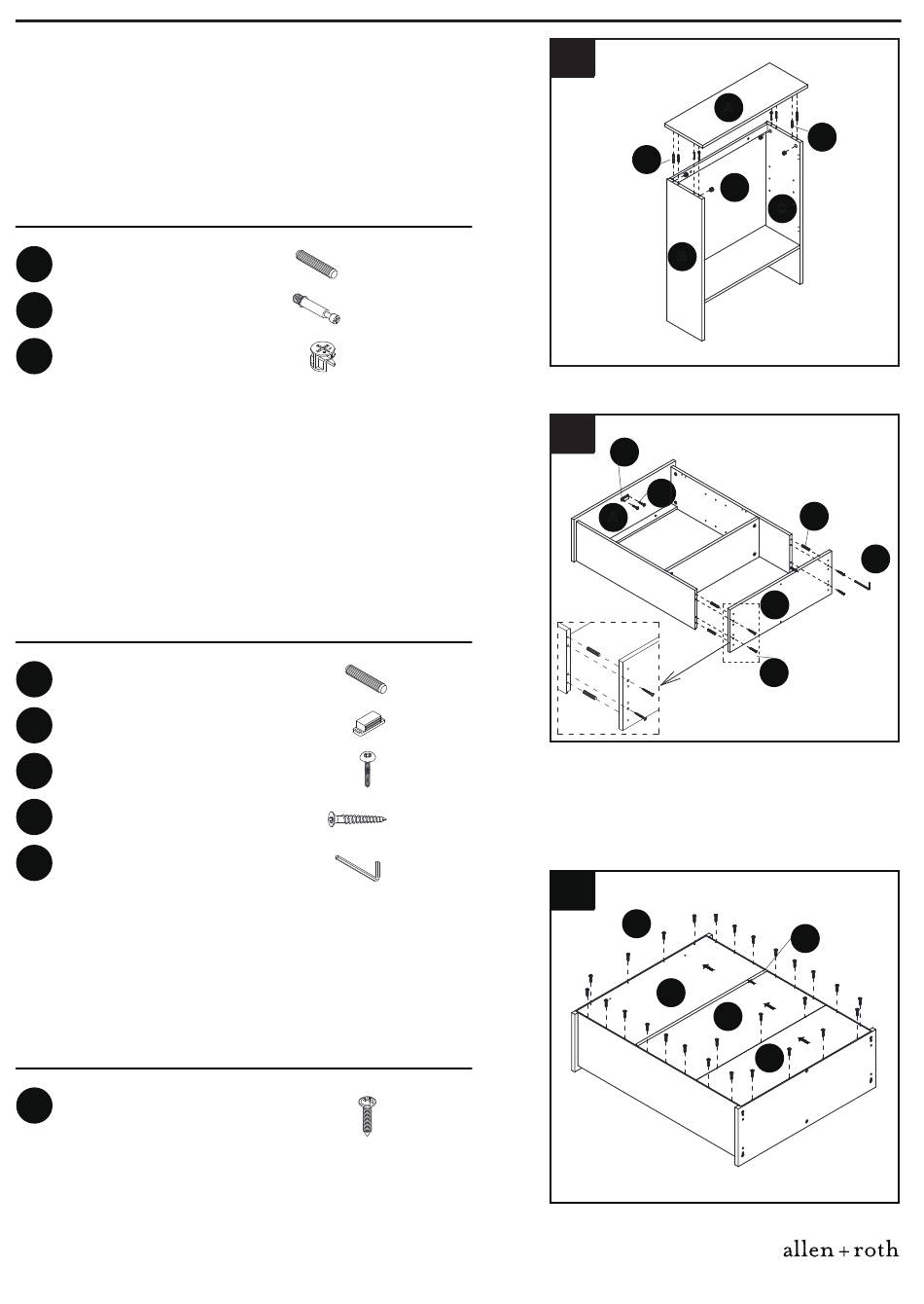

ASSEMBLY INSTRUCTIONS
3. Flip assembly upright. Insert wood dowels (AA) and metal
dowels (BB) where shown, then attach top panel (A).
Insert locking nuts (CC) into holes at the top of left upper
side panel (B) and right upper side panel (C), securing to
metal dowels (BB) using a Phillips screwdriver.
Hardware Used
AA
Wood Dowel
BB Metal Dowel
CC
Locking Nut
4. Carefully set assembly down. Attach magnetic catch
(DD) to the underside of top panel (A) using M2.5 x 14 mm
screws (EE).
Insert wood dowels (AA) where shown in the bottom of left
upper side panel (B) and right upper side panel (C), then
attach bottom panel (G). Secure with M5 x 40 screws (JJ),
tightening with Allen key (PP).
Hardware Used
AA
Wood Dowel
DD
Magnetic Catch
EE
M2.5 x 14 mm Screw
JJ
M5 x 40 mm Screw
PP Allen Key
5. Set upper back panel (H), middle back panel (I) and lower
back panel (J) where shown. Then, fit back panel
connector (Q) where shown before securing all parts using
M2.5 x 10 mm screws (MM) around the edges.
Hardware Used
MM
M2.5 x 10 mm Screw
3
x 4
x 4
x 4
4
x 4
x 1
x 2
x 4
x 1
5
x 27
5
A
BB
CC
C
B
DD
EE
A
G
JJ
MM
H
I
J
Lowes.com/allenandroth
AA
AA
PP
Q
™
