Household AC
Power Cable
(Included)
Outer Row
POWER/BATT
R6/LR6 (AA, UM-3)
O0_3 G 4 »O
9 1 )9 2 0
outlet

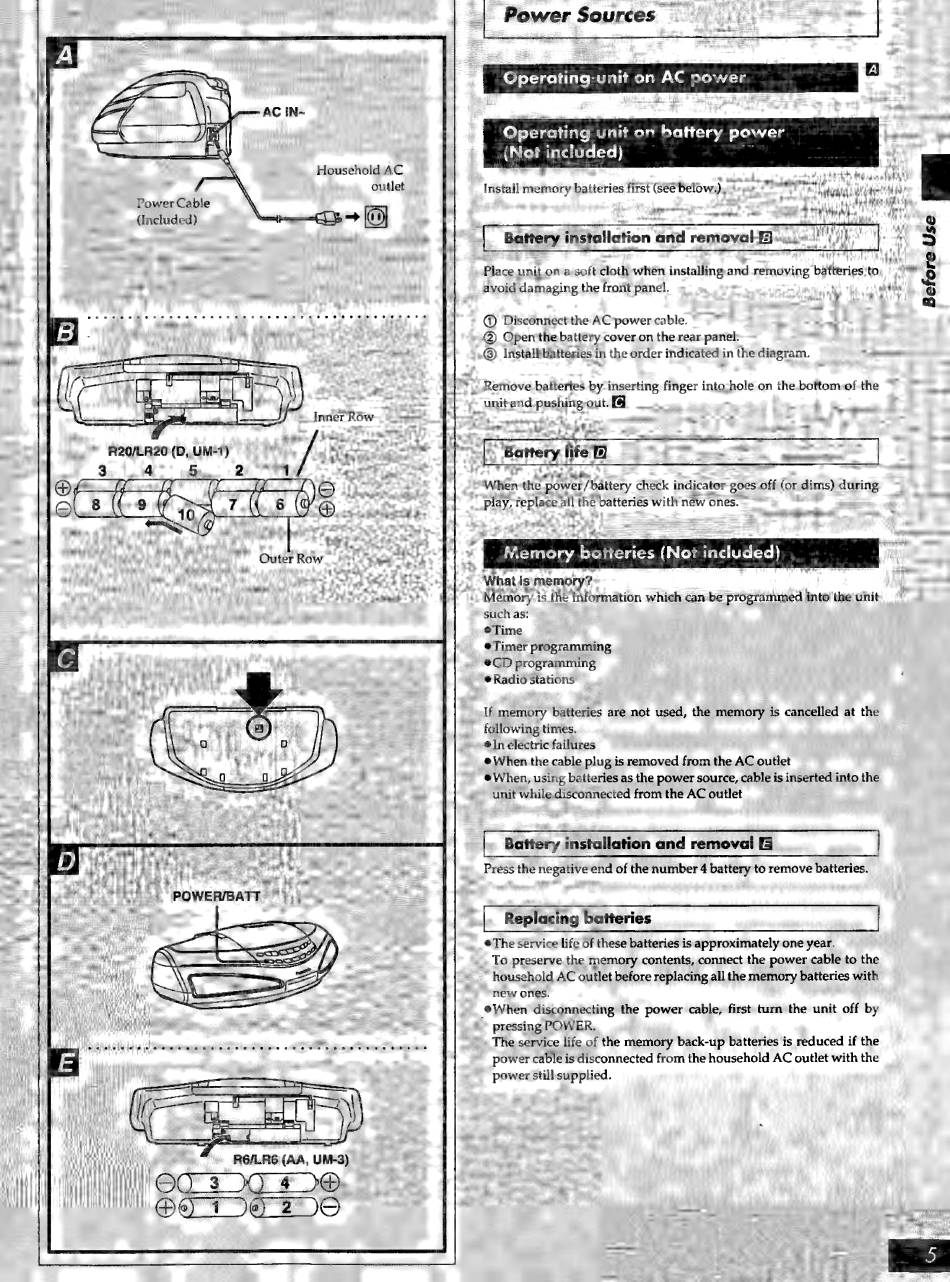

Power Sources
Operating unit on AC power
Operating unit on battery power
(Not included)
Install memory batteries first (see below.)
Befo Use |
Battery installation and removal FE;
Place unit on a soft cloth when installing and removing batteries to
avoid damaging the front panel.
Q) Disconnect the AC power cable.
@) Open the battery cover on the rear panel.
@) Install batteries in the order indicated in the diagram.
Remove batteries by inserting finger into hole on the bottom of the
unit and pushing out.
Battery life P
When the power/battery check indicator goes off (or dims) during
piay, replace all the batteries with new ones.
Memory batteries (Not included)
What is memory?
Memory is the information which can be programmed into the unit
Timer programming
eCD programming
e Radio stations
If memory batteries are not used, the memory is cancelled at the
following times.
en electric failures
e When the cable plug is removed from the AC outlet
e When, using batteries as the power source, cable is inserted into the
unit while disconnected from the AC outlet
Battery installation and removal
Press the negative end of the number 4 battery to remove batteries.
Replacing batteries
@The service life of these batteries is approximately one year.
To preserve the memory contents, connect the power cable to the
household AC outlet before replacing all the memory batteries with
new ones.
eWhen disconnecting the power cable, first turn the unit off by
pressing POWER.
The service life of the memory back-up batteries is reduced if the
power cable is disconnected from the household AC outlet with the
power still supplied.
