Evolution R185 SMS Notice Originale page 15

www.evolutionpowertools.com
35 36

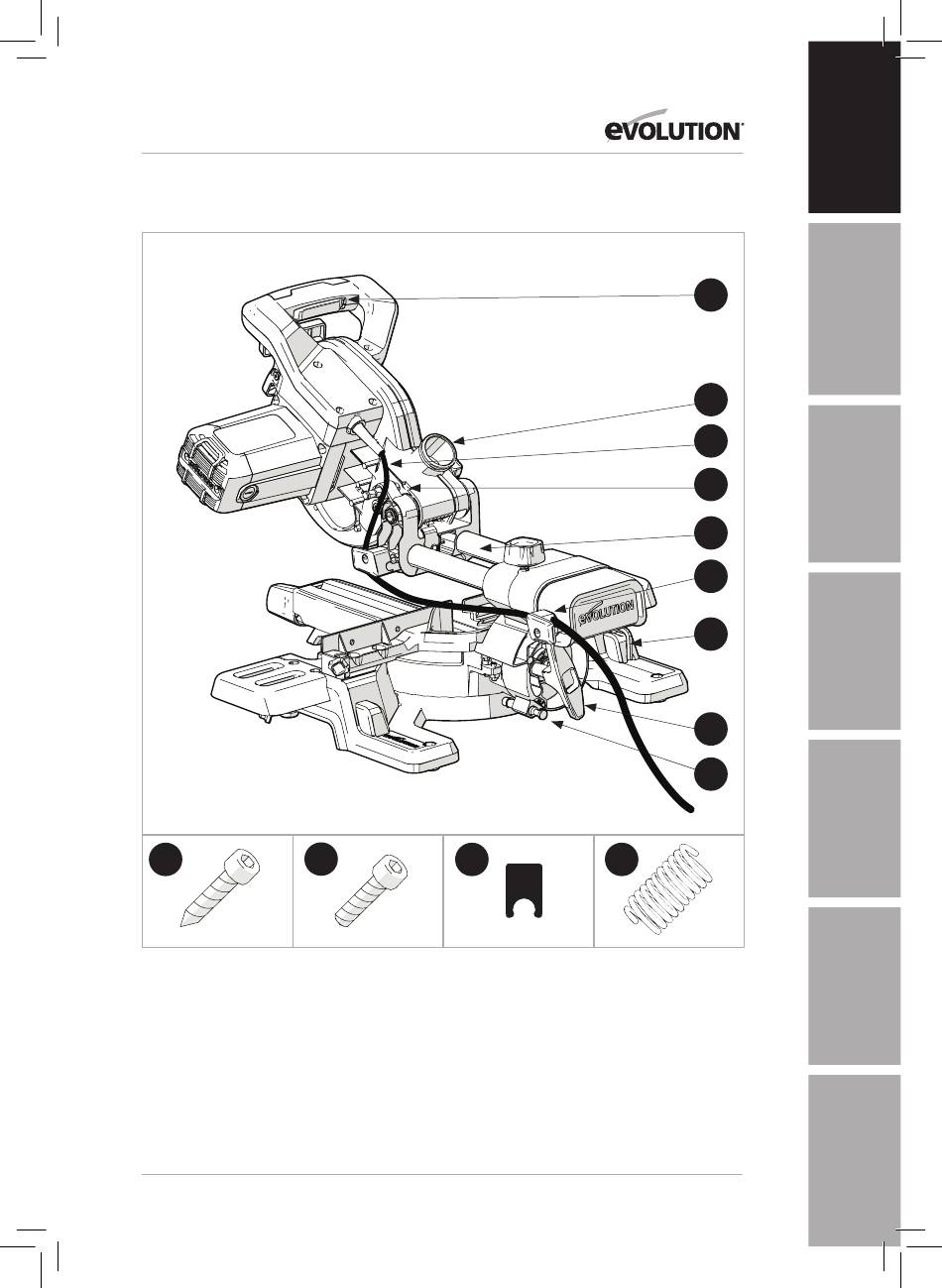

26. ON / OFF TRIGGER SWITCH
27. DUST EXTRACTION PORT
28. CABLE
29. CUTTING HEAD LOCKING PIN
30. REAR SLIDING CARRIAGE
31. CABLE GUIDE CLAMP
32. HEX KEY
33. BEVEL LOCK HANDLE
34. 33.9˚ BEVEL PIN
35. M4 SELF TAPPING CAP SCREW x1
37 38
36. M4 SOCKET HEAD SCREW x4
37. CABLE GRIP COMPONENT
(FITTED TO THE CABLE GUIDE CLAMP)
38. ANTI-VIBRATION SPRING
(FITTED TO ITEM '4' - THE SLIDE
LOCKING SCREW)
15
EN
26
DE
27
28
ES
29
30
31
32
FR
33
34
PL
PT
RO
