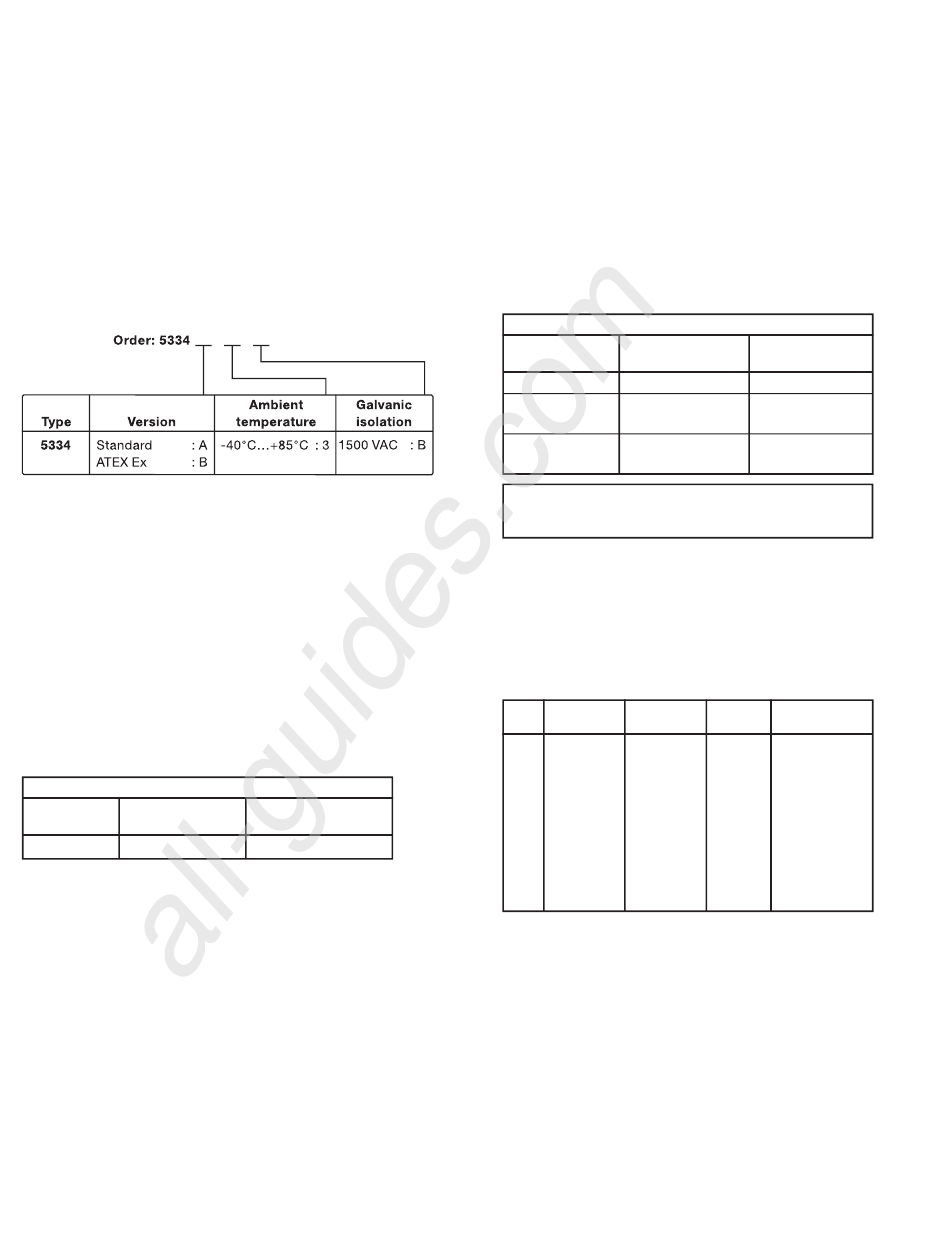

Electrical specifications:
Specifications range:
-40°C to +85°C
Common specifications:
Supply voltage, DC
Standard............................................... 7.2...35 V
ATEX Ex ................................................ 7.2...30 V
Internal consumption .................................. 25 mW...0.8 W
Voltage drop ................................................ 7.2 VDC
Isolation voltage, test / operation ............... 1.5 kVAC / 50 VAC
Warm-up time .............................................. 5 min.
Communications interface .......................... Loop Link
Signal / noise ratio ...................................... Min. 60 dB
Response time (programmable) .................. 1...60 s
EEprom error check .................................... < 3.5 s
Signal dynamics, input ................................ 18 bit
Signal dynamics, output.............................. 16 bit
Calibration temperature............................... 20...28°C
Accuracy, the greater of general and basic values:
General values
Absolute
Input type accuracy
 ±0.05% of span
All
18
All manuals and user guides at all-guides.com
Temperature
coefficient
 ±0.01% of span / °C
Basic values
Basic
Input type accuracy
 ±10 µV
Volt
TC type:
 ±1°C
E, J, K, L, N, T, U
TC type: B, R, S,
 ±2°C
W3, W5, LR
EMC immunity influence ..................................... < ±0.5% of span
Extended EMC immunity:
NAMUR NE 21, A criterion, burst ....................... < ±1% of span
Effect of supply voltage variation ................ < 0.005% of span / VDC
Vibration ...................................................... IEC 60068-2-6 Test FC
Lloyd's specification no. 1........................... 4 g / 2...100 Hz
Max. wire size .............................................. 1 x 1.5 mm
Humidity ...................................................... < 95% RH (non-cond.)
Dimensions .................................................. Ø 44 x 20.2 mm
Protection degree (enclosure / terminal) ..... IP68 / IP00
Weight ......................................................... 50 g
Electrical specifications, input:
Max. offset................................................... 50% of selec. max. value
TC input:
Min. Max.
Type temperature temperature
B +400°C +1820°C
E -100°C +1000°C
J -100°C +1200°C
K -180°C +1372°C
L -100°C +900°C
N -180°C +1300°C
R -50°C +1760°C
S -50°C +1760°C
T -200°C +400°C
U -200°C +600°C
W3 0°C +2300°C
W5 0°C +2300°C
LR -200°C +800°C
Temperature
coefficient
 ±1 µV/°C
 ±0.05°C/°C
 ±0.2°C/°C
2
stranded wire
Min.
span Standard
200°C IEC584
50°C IEC584
50°C IEC584
50°C IEC584
50°C
DIN 43710
100°C IEC584
200°C IEC584
200°C IEC584
50°C IEC584
75°C
DIN 43710
200°C ASTM E988-90
200°C ASTM E988-90
50°C GOST 3044-84
