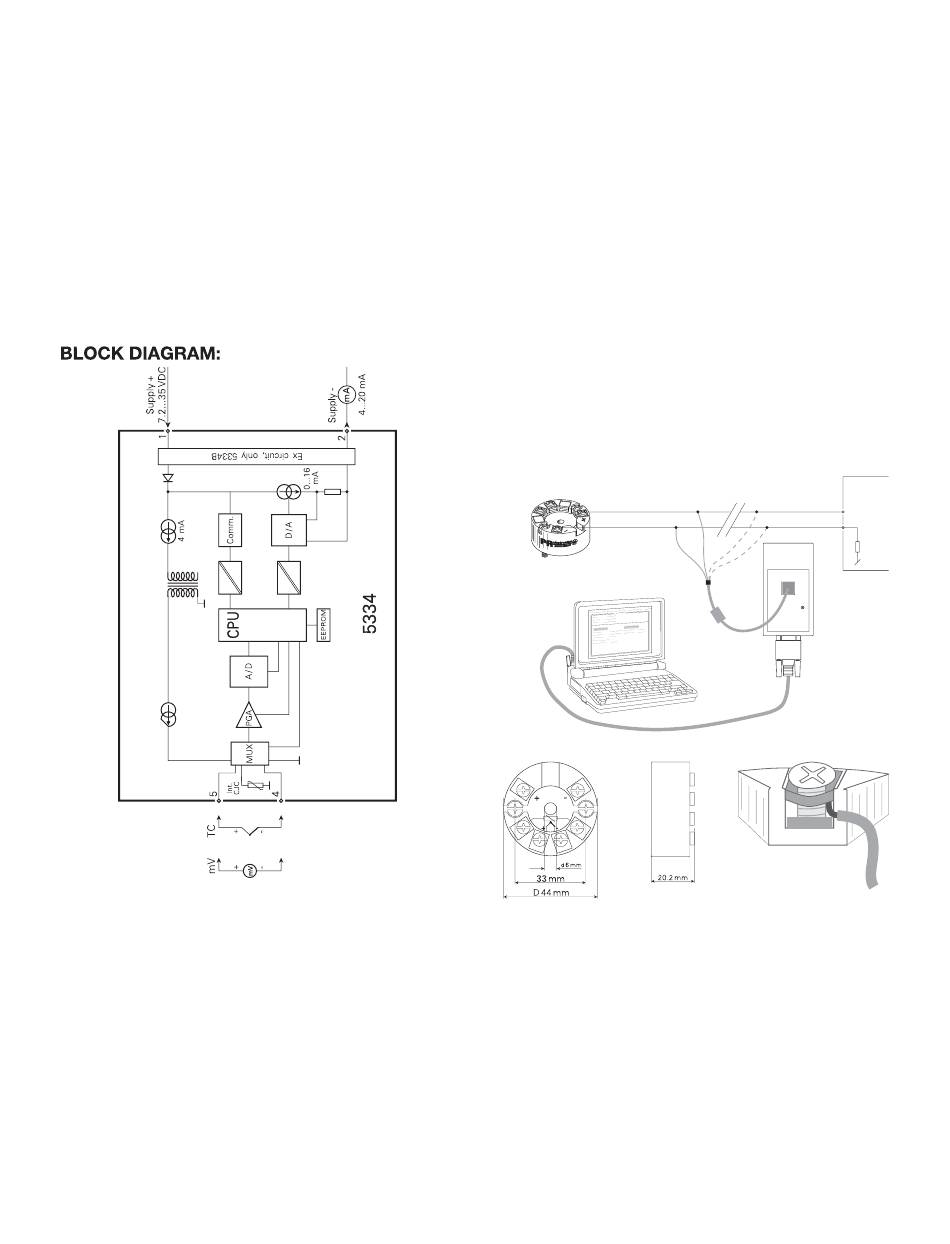

Programming:
• Loop Link is a battery-powered communications interface that is needed for
programming PRetop 5334.
• For programming please refer to the drawing below and the help functions in
PReset.
• Loop Link is not approved for communication with modules installed in
hazard ous (Ex) areas.
Order: Loop Link
1
2
Black
PRetop 5334
Mechanical specifications:
Receiving
Equipment
Disconnect
+Vsupply
Yellow
Red
*
Input
Green
*
Connector
COM
Loop Link
* Connected only for
on-line programming
Mounting of sensor wires
Wires must be mounted between the metal
plates.
