Creation of radio communication
Adaptation of the wireless actuator to the "R-Tronic"

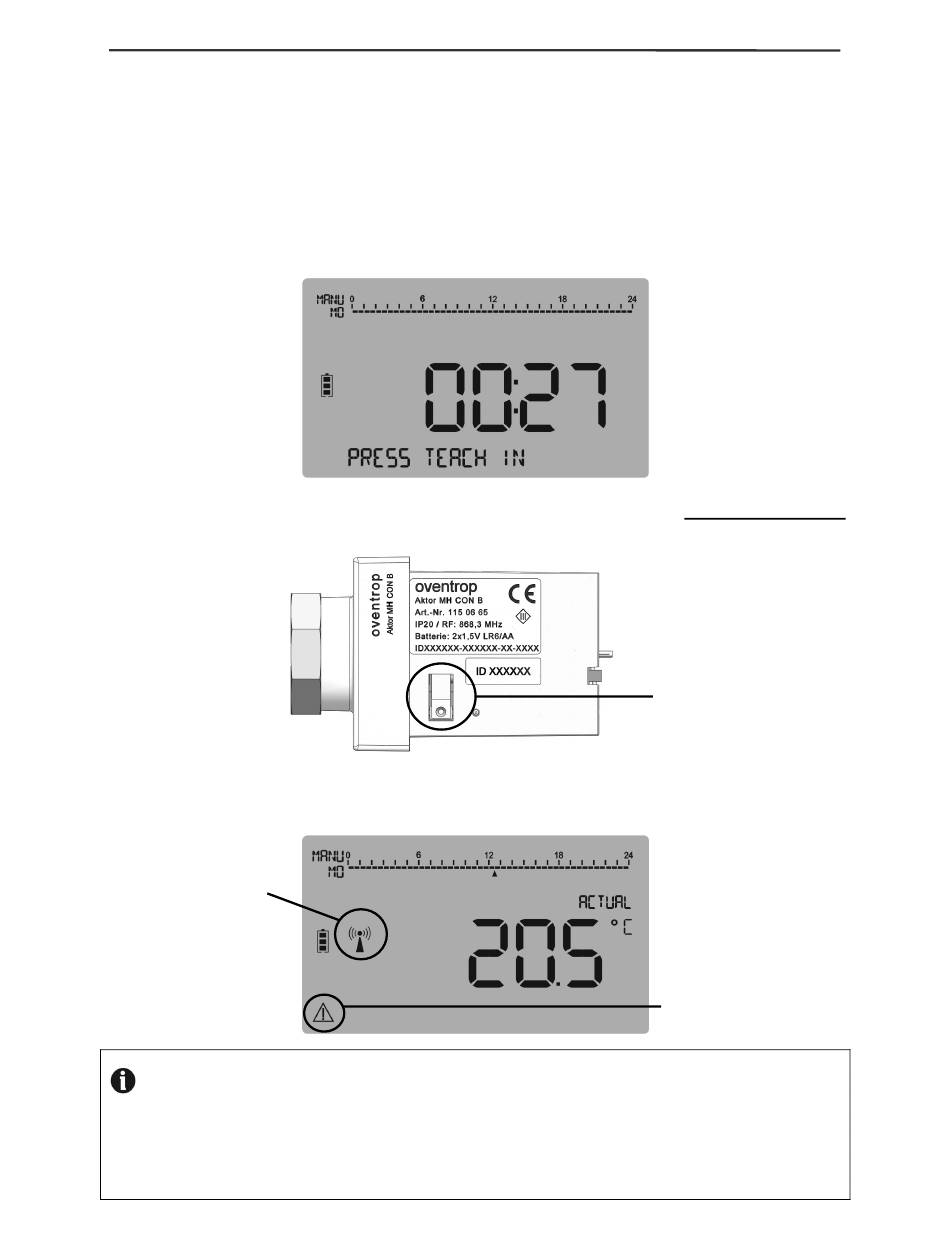

1. Set date and time. The standard display with the current room temperature appears on
the display of the "R-Tronic" (ACTUAL VALUE).
2. Now proceed to the following menu:
MAIN MENU ► SETTINGS ► INSTALLATION ► TEACH IN
3. Start "teach" in process (Press Menu-button). A running count down of 30
seconds is displayed.
4. Now the "teach in"/adjustment button at the actuator has to be pressed quickly (!)
within this countdown.
5. The message SUCCESS which shortly appears on the "R-Tronic" display signalizes
that the "teach in" process has been completed successfully and the following radio
symbol is displayed:
The wireless symbol
signalizes that the
"teach in" process has
been completed
successfully.
NOTE of an unsuccessful "teach in" process
The "teach in" process may fail if the radio communication is interrupted by spatial factors,
such as room geometry, existing objects, materials and interference sources. In this case,
the "R-Tronic" should be installed at a different location and the "teach in" process
should be repeated.
