oventrop R-Tronic RT B Instructions Condensées page 5

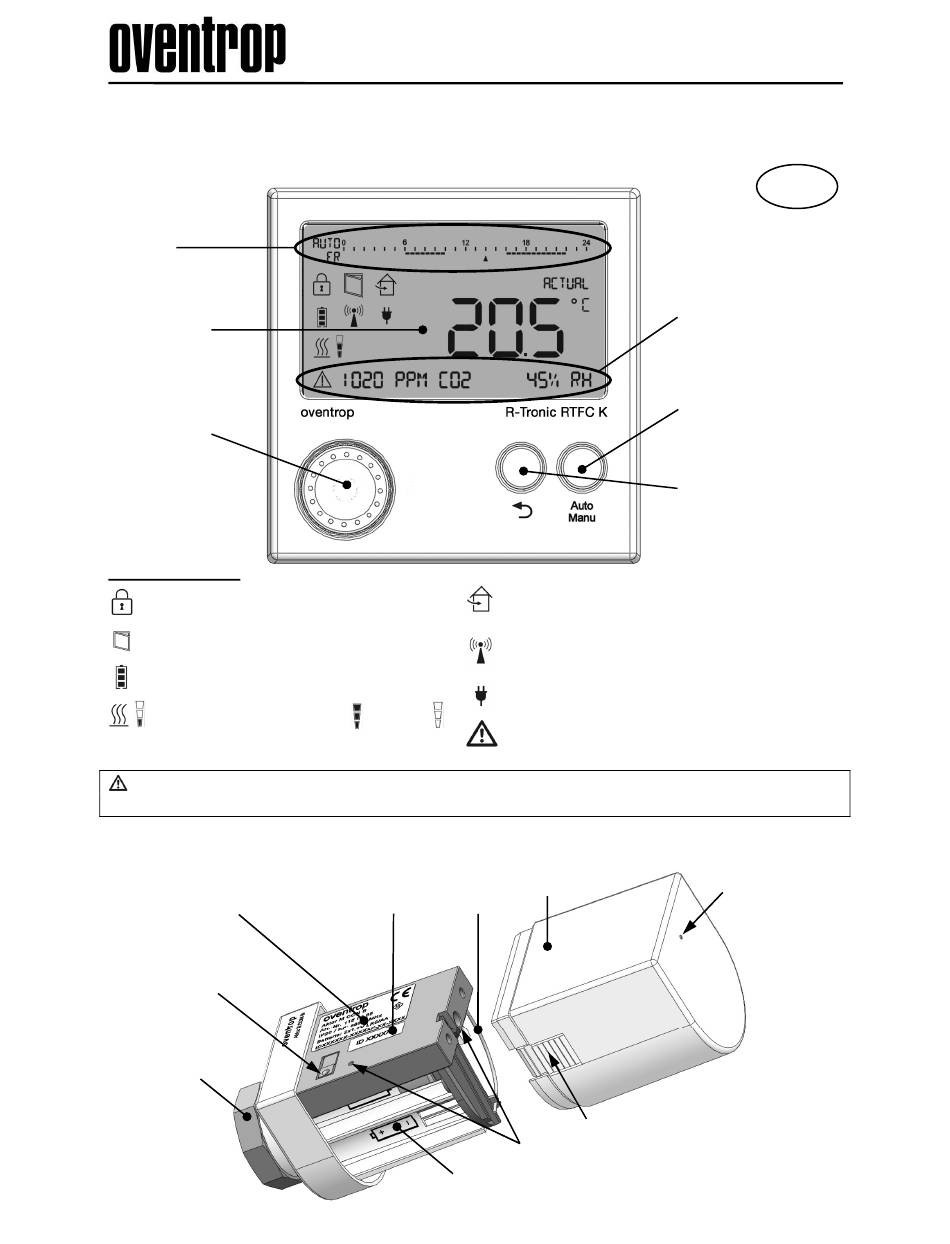

"R-Tronic" (Climate display device/control)
Operating mode-
and time profile
Display (illuminated):
Symbols and
display units.
Menu-button:
Navigation and
nominal setting
by turning
and pressing
(confirmation)
Display symbols
Child-proof lock activated
Window open (sensor controlled)
Battery status (fully charged, low, empty)
Heating period / Valve OPEN
WARNING
Electrical Connections must only be carried out by qualified electricians!
"Aktor MH/MD CON B" (Actuator for radiators, radio controlled)
Type plate
Teach in-
/adjustment
button
Collar nut
(MH CON B)
Squeeze
Connection:
MD CON B
[not pictured]
All manuals and user guides at all-guides.com
CLOSED
Aktor-ID Antenna
Battery case for two batteries (AA 1,5 V round cell)
5
Valves, controls + systems
"R-Tronic RT B / RTF B / RTFC K"
"Aktor MH CON B / MD CON B"
Recommendation for room ventilation
(only "R-Tronic RTFC K")
Wireless control active
(at least one "teached in" actuator)
Current supply via external power pack or mains adaptor
Important information in the menu (display of notes
and error messages)
Casing cover
Release tab (press to remove)
2 x info LED
Brief instruction
GB
Text line display:
supplies information on
- Measured values
- Menu structure
- Diagnosis (advice)
Auto/Manu-button:
Switching between the
standard heating profiles
Return-button:
Previous menu level;
keep pressed: return to
default view
Viewer
info LED
