Fig. 6-4: Glueing the adhesive antenna into place
6.3.5 Terminating
1. Refit the cover of the product and close it.
2. Install the room controllers in the appropriate rooms. Observe the assignment
room temperature controller/control circuit/room when doing so.
6.3.6 Function test room controller
 Verify that the room temperature is between +15 °C and +25 °C. Test the room
controllers one after another.
1. Verify that the room controller to be tested is connected to the correct control
circuit.
2. Set the room controller to +30 °C.
- After one minute, the yellow LED lights up at the controller module to which
the room controller is connected.
3. Repeat this procedure for all other room controllers.
Commissioning
RoCon UFH

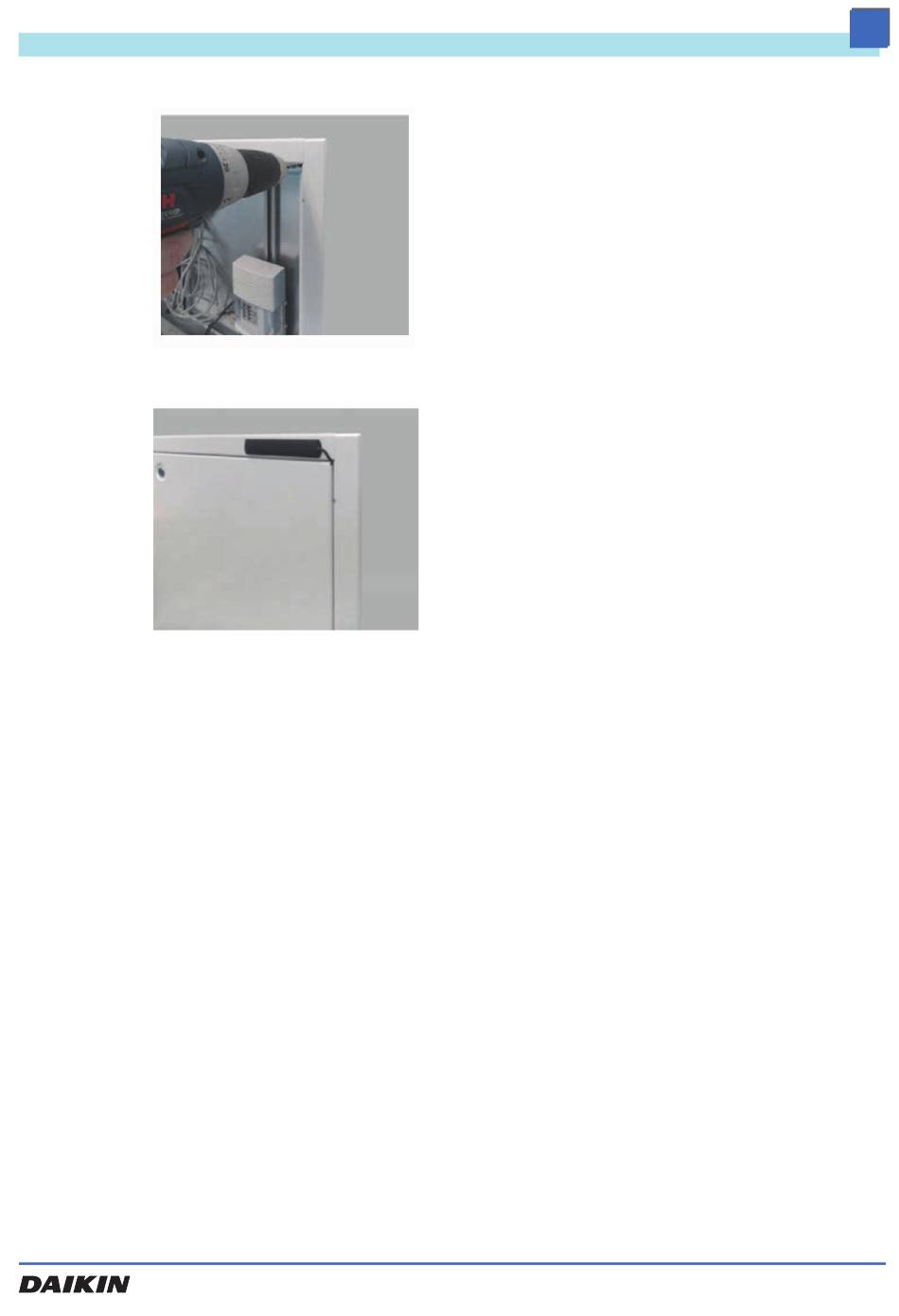

2. Drill a hole into the inside of the cabi-
net using a power drill.
3. Route the cable through the drilled
hole.
4. Push the antenna connector onto the
product and screw it on (see fig.
5-22).
5. Remove the protective film from the
adhesive antenna and push the adhe-
sive antenna onto the outer edge of
the cabinet.
6. Close the cover of the cabinet.
