5.7
Connecting the adhesive antenna
ELECTROSTATIC DISCHARGE
Always earth yourself before touching electronic components.
Failure to follow these instructions can result in equipment damage.

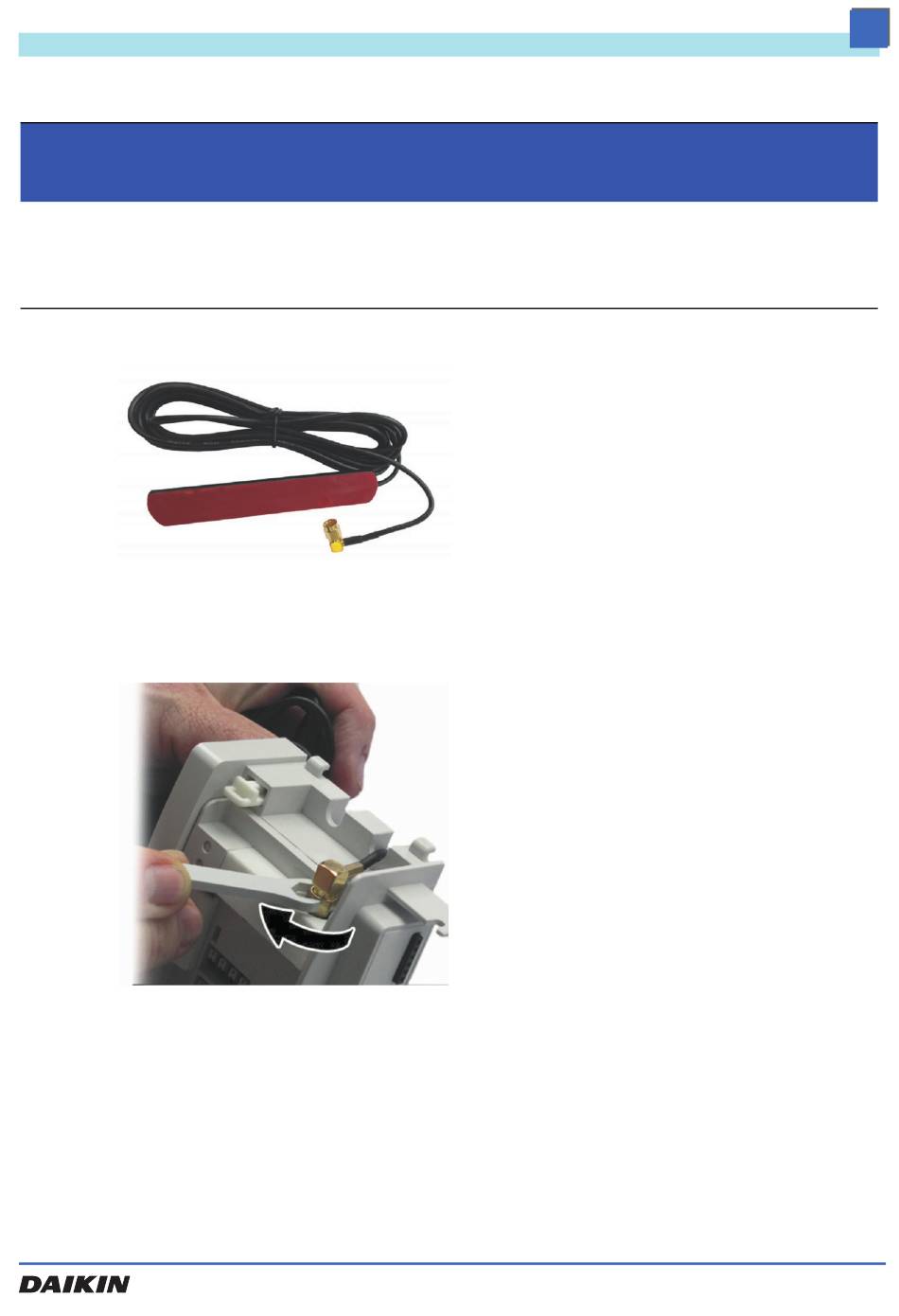

Fig. 5-21: Adhesive antenna (contained in scope of delivery of controller module)
 Verify that the base module is disconnected from mains.
Fig. 5-22: Mounting the antenna cable
Mounting
RoCon UFH
NOTICE
Transmission power gain: 2 dbi
1. Open the cover of the product.
2. Push the antenna cable onto the wire-
less module and screw it on.
3. Close the cover of the product.
See chapter 6.3.4 for information on
mounting the adhesive antenna.
