Mounting the product

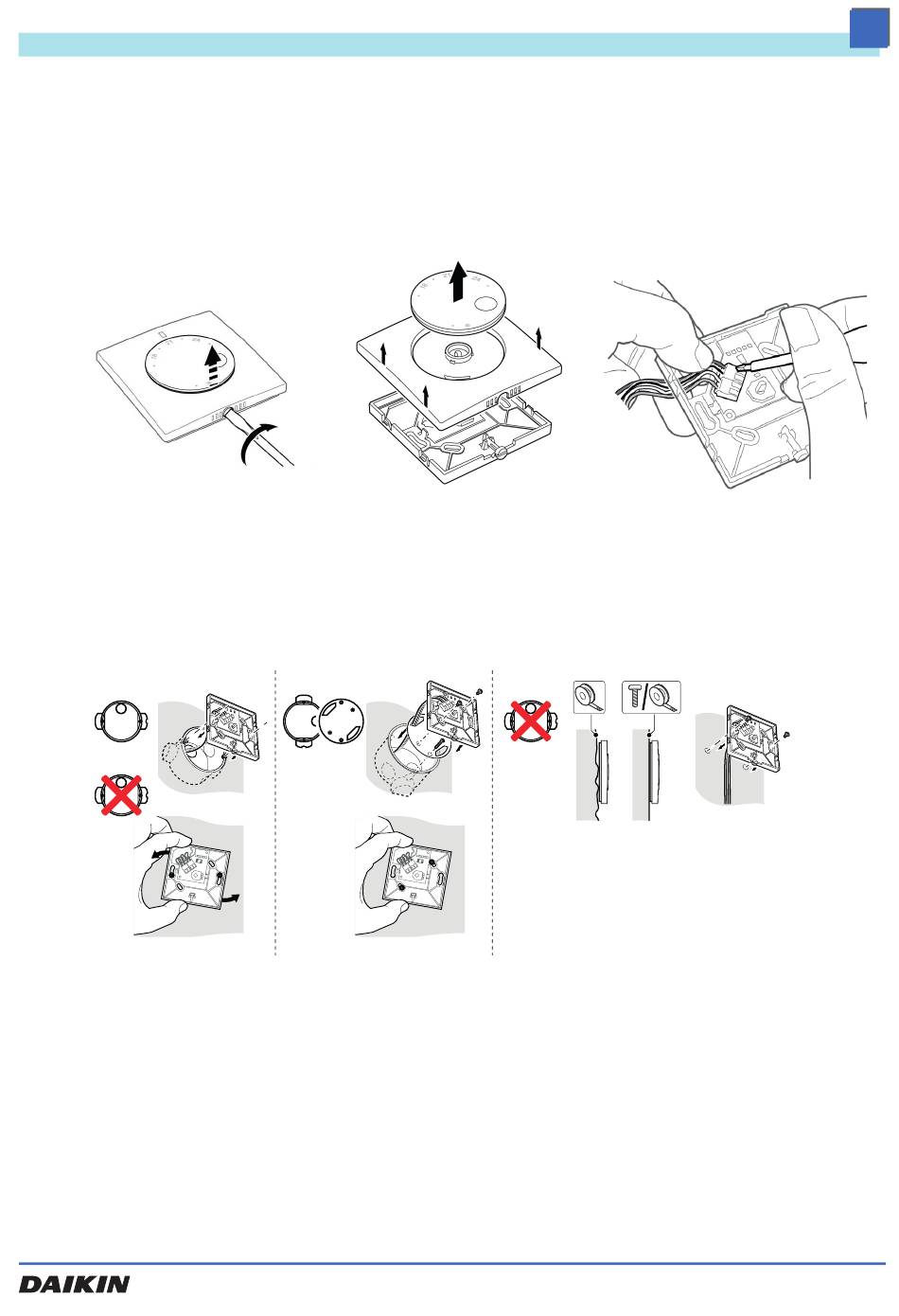

1. Turn the cam screw at the room controller clockwise by approximately 90° using a
screwdriver.
2. The rotary knob is lifted and can be removed.
3. Remove the upper part of the housing.
Fig. 5-11: Electrical connection room controller
4. Connect the wires of the cable to the terminals of the room controller (observe col-
our coding).
5. Mount the room controller.
A
C
A: Mounting to a horizontally aligned cable box.
B: Mounting to a vertically aligned cable box using the adapter plate supplied.
C: Mounting directly to the wall.
If the wall is uneven, stick the product to the wall using the adhesive dots sup-
plied.
Screw or glue the product to even walls.
Fig. 5-12: Wall mounting of room controller
RoCon UFH
Mounting
90°
