Electrical connection

ELECTRIC SHOCK
• Verify that the degree of protection against electric shock (protection class,
double insulation) is not reduced by the type of electrical installation.
Failure to follow these instructions will result in death or serious injury.
ELECTRIC SHOCK CAUSED BY LIVE PARTS
• Disconnect the mains voltage supply before performing the work and ensure
that it cannot be switched on.
• Verify that no hazards can be caused by electrically conductive objects or
media.
Failure to follow these instructions will result in death or serious injury.

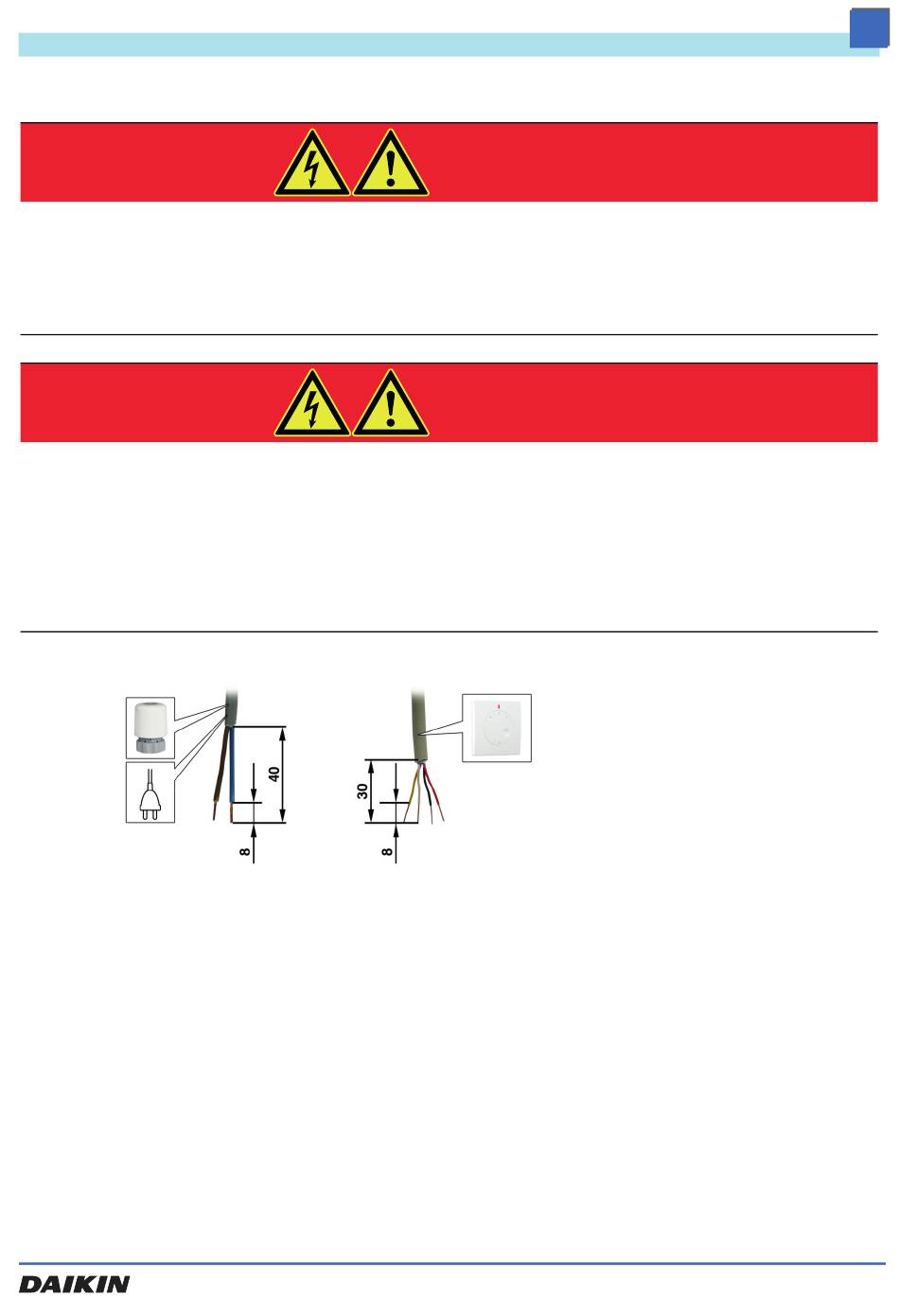

Fig. 5-6: Stripping the cables
Mounting
RoCon UFH
DANGER
DANGER
 Verify that a connection con-
cept has been created.
- Verify that the correct
 Verify that all cables are dis-
connected from power.
1. Strip the cables as shown.
assignment of the switch-
ing channels for the timer
module has been consid-
ered.
