Delba DB-870-10CZ Mode D'emploi page 46

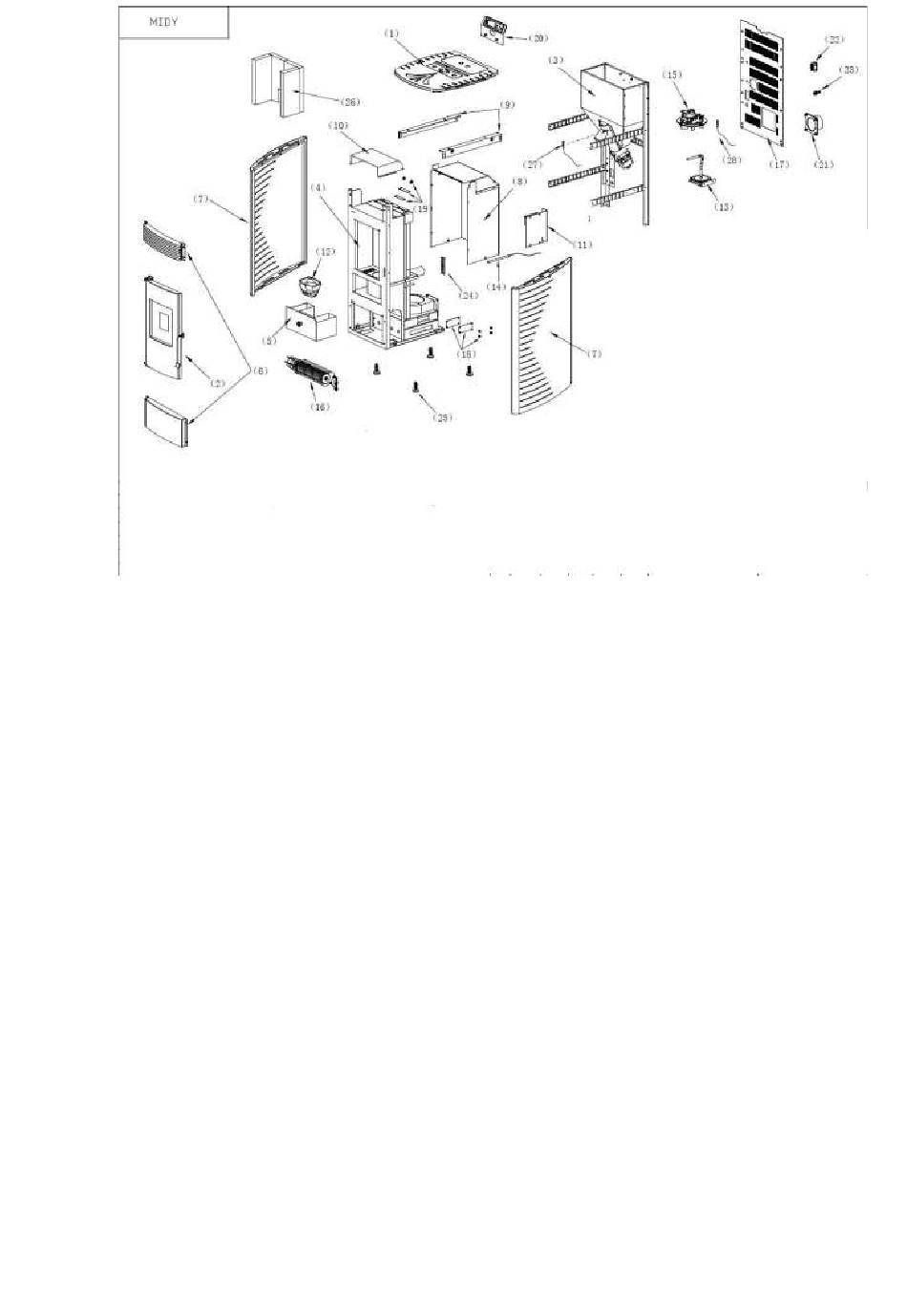

1. Top Cover; 2. Door; 3. Pellet Deposit: 4. Burning Chamber; 5. Ash
drawer; 6. Upper front grille and lower cover; 7. Side panels; 8. Isolation
chamber; 9. Gutter; 10. Hot air conductor; 11. Power board; 12. Burner;
13. Vacuum switch; 14. Ignition Resistance; 15. Combustion fan; 16. Hot
Air Fan; 17. Rear cover; 18. Ash Chamber Cover; 19. Conduits Cover;
20. Display; 21. Exhaust connection; 22. Power input socket (contains the
main fuse); 23. Ambient temperature sensor; 24. Remote Control; 25.
Stove feet; 26. Stones (optional); 27. Pellets deposit temperature sensor;
28. Gas temperature sensor
