6. Terminal assignment

1 10 ... 30 V DC
2 0 V GND
3 INP A
4 INP B
5 Reset

8. Ordering code:

6.52U.012.3X0

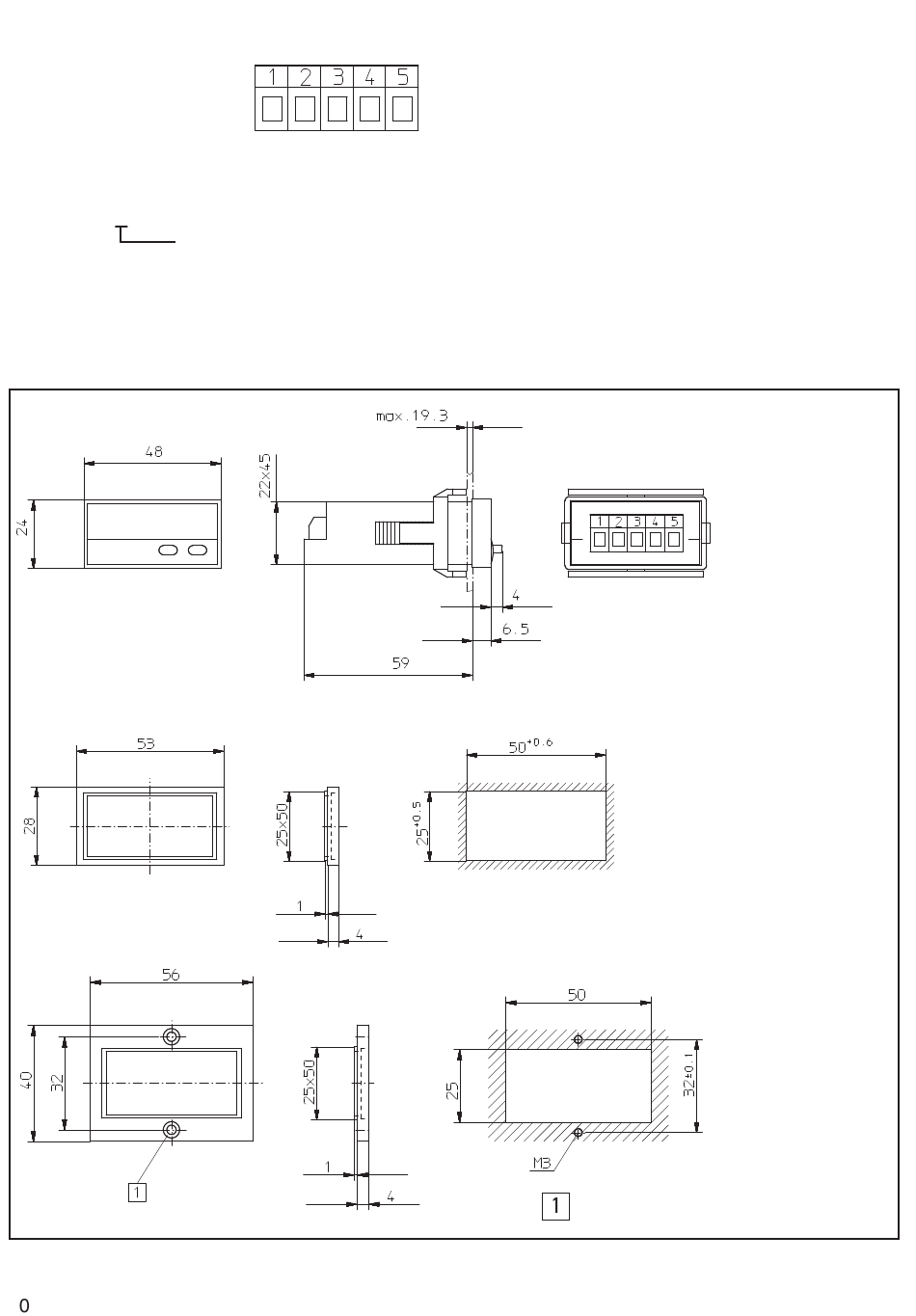

9. Dimensions:

Panel cut out:
22,2+0,3 x 45+0,6 mm
Front bezel
1
Input sensitivity
0 = Standard
A = 4 ... 30 V DC level

7. Delivery includes:

1 Digital display
1 Panel mounting clip
1 Bezel for screw mounting, panel cut out
50 x 25 mm
1 Bezel for clip mounting, panel cut out
50 x 25 mm
1 Seal
1 Multilingual operating instructions
Panel cut out:
Counter sinking Af3, DIN 74
