Commissioning

7. Loosen the screws and remove the cover
of the connection box.
8. Connect the power supply cable to the pre-
pared terminals inside the connection box.
9. Screw the cover back onto the connection
box.
10. Install the wireless thermostat "R-Tronic"
according to the corresponding operating
instructions.
7. Commissioning
7.1 Filling, bleeding and leak
testing
1. Fill the heating system.
2. Bleed the heating system (for instance at
the valve of the "Unibox T-RTL R-Tronic")..
3. Carry out a leakage test in accordance with
DIN EN 1264.
4. Refit the protection cover of the "Unibox
T-RTL R-Tronic" (see Illust. 1 on page 25)
and the front cover of the pipe conduit unit.

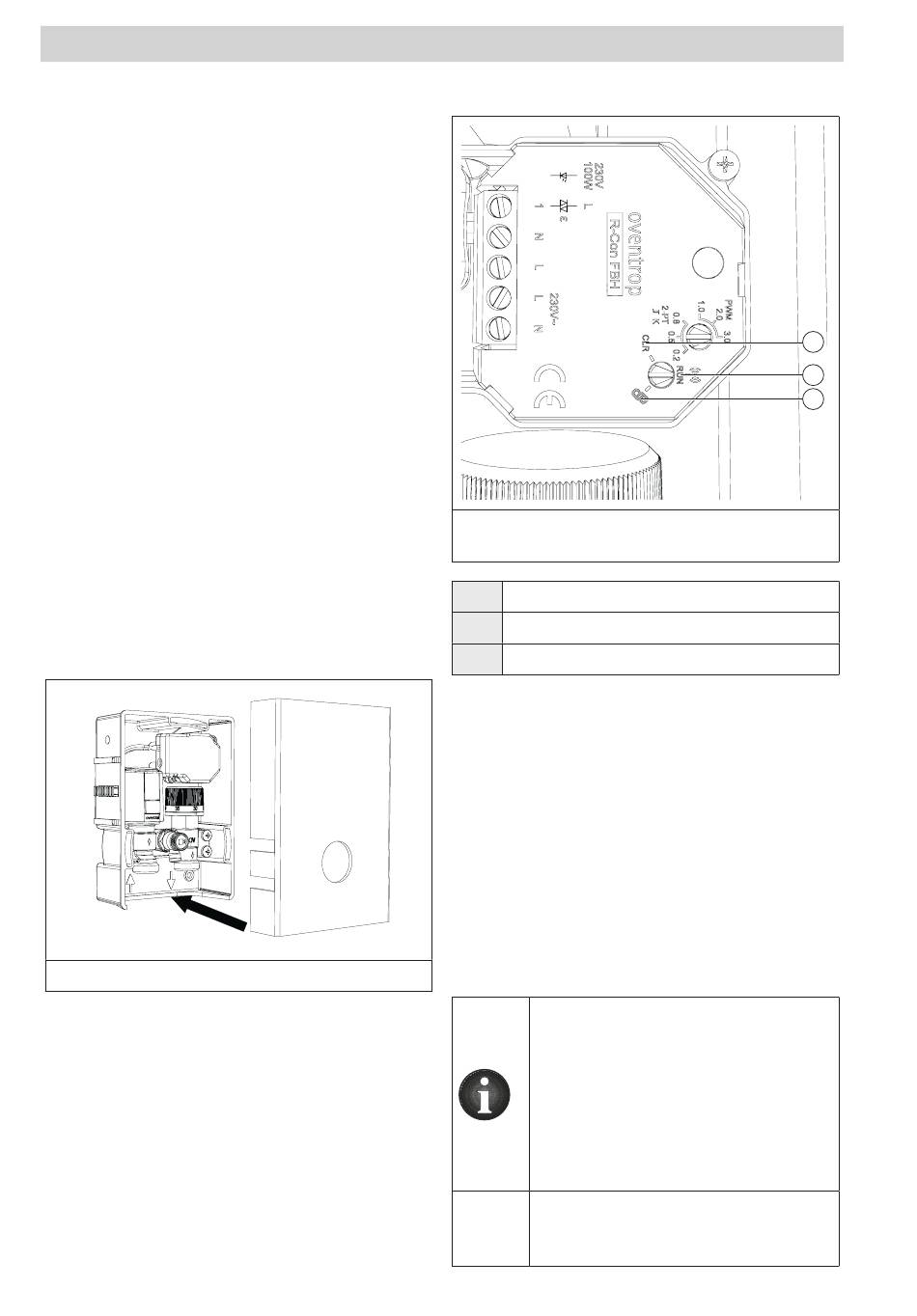

Illust. 11: Fitting of the protection cover

7.2 Adaptation

32
Unibox T-RTL R-Tronic
Illust. 12: Setting options of the wireless
receiver "R-CON FBH"
(1) Clear
(2)
RUN
(3) Connect
7.2.1 "Teaching in" of the R-Tronic
(ENOCEAN)
To connect the "Unibox T-RTL R-Tronic" to the
wireless thermostat "R-Tronic", both compo-
nents have to be "teached in". "Teaching in"
means the creation of a radio communication.
1. Set the rotary knob of the wireless receiver
"R-CON FBH" to "Connect" (see Illust. 12
on page 32 (3)). The LED starts flashing.
2. Select the menu option SETTINGS »
INSTALLATION » TEACH IN in the menu of
the wireless thermostat "R-Tronic":
Once the "teach in" process has
been completed successfully, you
have to set the date and time at the
wireless thermostat.
For further information regarding
setting, please refer to the operat-
ing instructions supplied with the
wireless thermostat.
Once the "teach in" process has
been completed successfully, the
LED stops flashing.
1
2
3
