Installation und
Inbetriebnahme
DEUTSCH
3.4
19"-Montage
Einbaubreite 450 mm
Varioträger montieren
Nach beiliegender Montageanleitung des
Herstellers montieren.

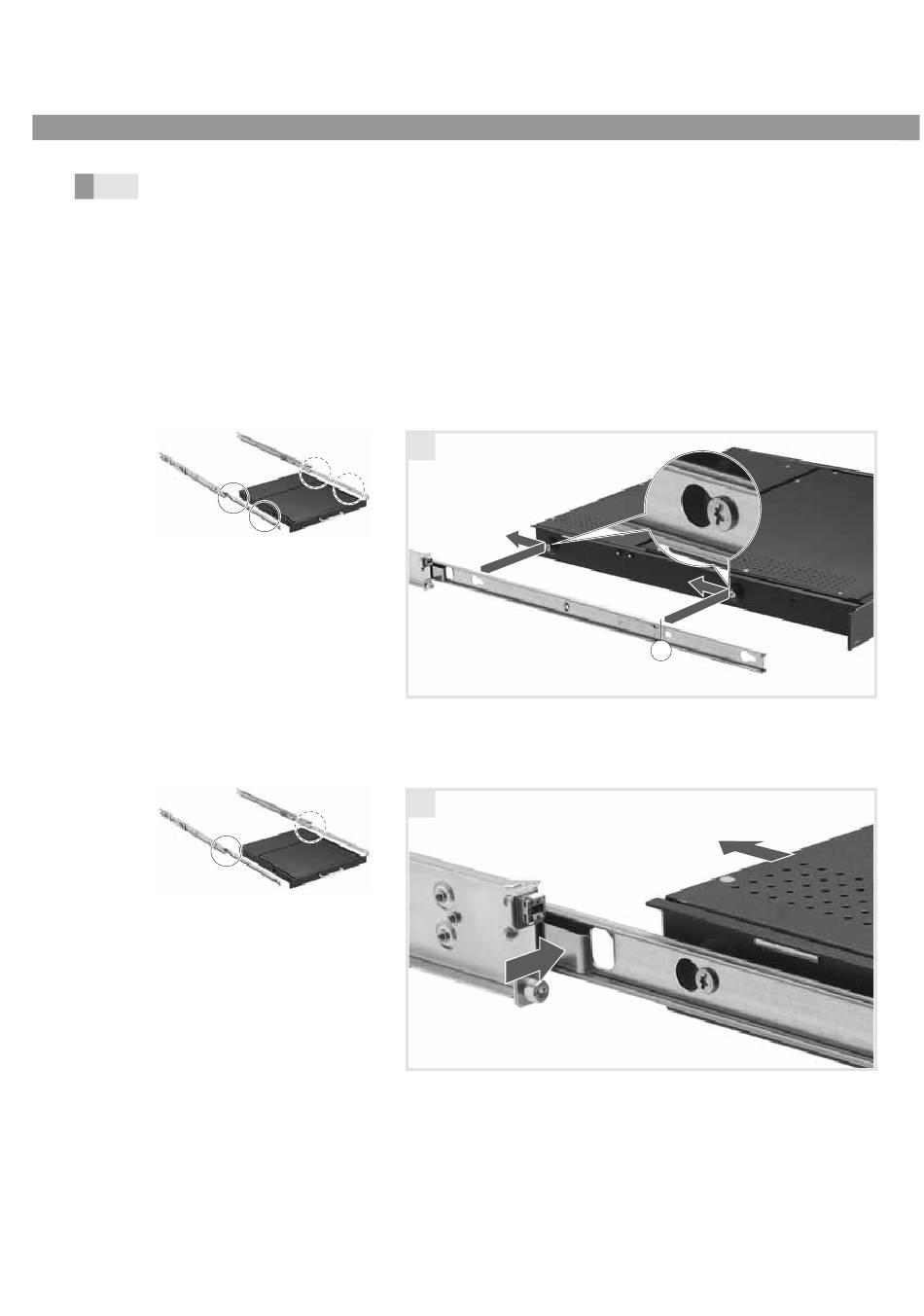

TFT-Schublade montieren
•
Teleskopschienen bis zum Anschlag
ausziehen.
•
B: Innenschiene an TFT-Schublade
montieren.
B
•
Entriegelung an der Außenseite
der Innenschienen drücken C1 und
Teleskopschienen mit TFT-Schublade
ganz einschieben C2.
C
12
Installation and
commissioning
ENGLISH
19" Installation
Installation width 450 mm
Fit the Vario support
Fit this component as described in the
installation instructions supplied by the
manufacturer.
Fit the TFT drawer
•
Extend the telescopic rails as far as
possible.
•
B: Fit the inner rail to the TFT drawer.
B
•
Press the release on the outside of
the inner rails C1 and fully slide in the
telescopic rails with the TFT drawer C2.
C
C1
Installation et
mise en service
FRANÇAIS
Montage 19"
Largeur de montage 450 mm
Montage du support variable
A monter en respectant les instructions de
montage du fabricant.
Montage du tiroir TFT
•
Retirer les rails télescopiques jusqu'à la
butée.
•
B : Montage du rail intérieur sur le tiroir
TFT.
CLICK!
CLICK!
B1
•
Appuyer sur le déverrouillage situé sur
la face externe des rails intérieurs C1 et
insérer entièrement les rails télescopi-
ques avec le tiroir TFT C2.
C2
