Step 3: Install the DPR-RDS1 in the vehicle (continued)
4. You can access the factory antenna port located on the back of the radio. If the factory
antenna cable is connected, unplug it and plug the universal antenna connector into the
receptacle. Connect +12 volt, ground and remote wire leads to their proper sources.
5. Connect the power/antenna cable and the iPod docking cable to the interface unit.
Apply cable ties to secure the cables.
6. Verify that all connections have been properly made.
7. Reconnect the car's battery. Test the unit before seating the cables and
reinstalling the panels/trim.
factory antenna connector
Note: antenna adapters sold separately
may be required with certain radios.
Phase 2: Installez le DPR-RDS1 pour véhicule(suite ...)
4) Vous pouvez accéder au connecteur d'antenne derrière la radio. Débranchez l'antenne et
branchez le connecteur universel d'antenne dans la radio. Reliez le 12V+, BATT et de REM à
leurs raccordements corrects
5) Connectez le câble d'antenne /puissance et le câble d' iPod à l'unité et fixez l'unité avec des
serres-câble
6) Inspectez que les raccordements sont corrects
7) Connectez la batterie. Test the function of unit before finish the installation of the panels

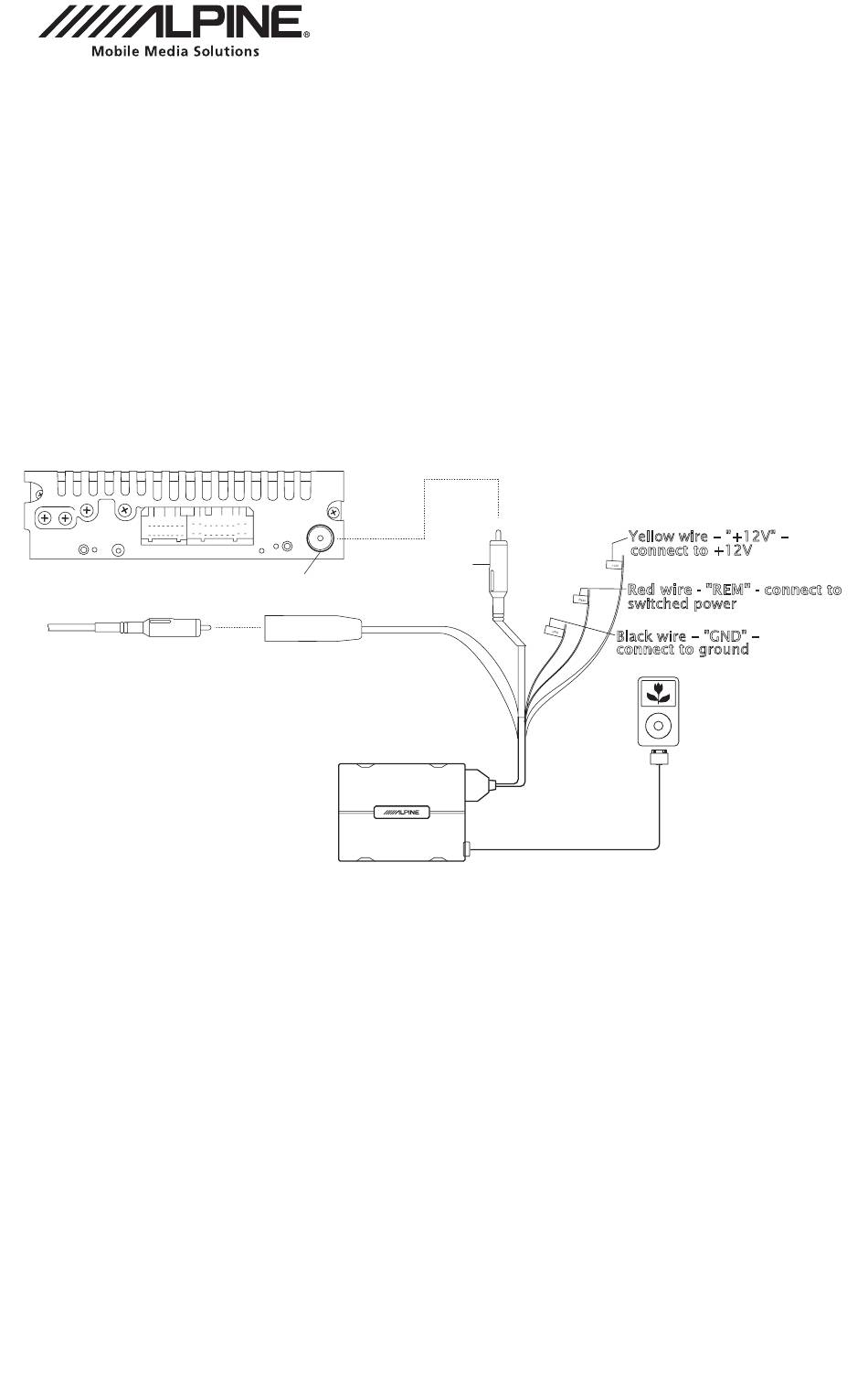

Radio antenna port
universal
antenna
connector
Yellow wire - "+12V" -
connect to +12V
Red wire - "REM" - connect to
switched power
Black wire - "GND" -
connect to ground
