Footplate Adjustment

Adjusting The Footrest
WARNING!
Do not stand on the footboard! Even if the user is sitting in
the chair, there is still a risk of tipping over and injury.
When transferring, do not stand on the footboard, there is a
risk of tipping over and injury.
Releasing the screw (1) will allow you to adjust the footrest to
correspond to the length of your lower leg and re-attach the
footrest. The angle of the footrest may be individually adjusted
by loosening screws (2). The side protection (3) on the footrest
prevents the feet slipping off accidentally. Make sure that after
any adjustment work, all screws are tightened correctly (see the
page on torque) (Fig. 4.12 - 4.13).

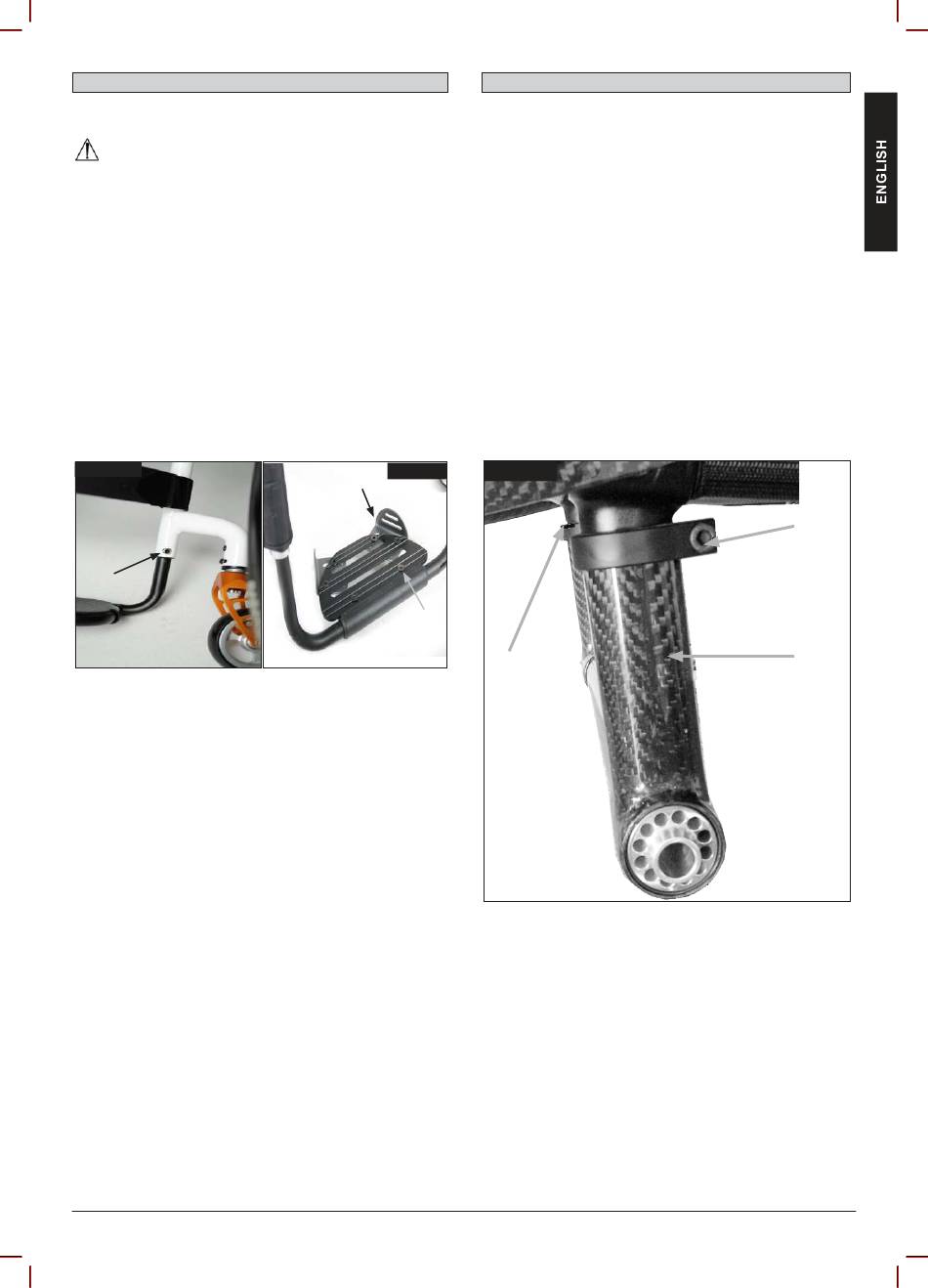

Fig. 4.12
1
Krypton R Rev.1.0

Seat

Adjusting the seat height
To adjust the rear seat height, undo the Allen screws (1) on the
axle brackets (2) on both sides of the wheelchair.
To reduce the seat height by 10 mm, remove the spacer (3).
To increase the seat height by 10 mm, insert an additional
spacer (included in the scope of delivery).
Then re-tighten both Allen screws with a torque of 7 Nm. (Fig.
4.14)
Fig. 4.13
Fig. 4.14
3
2
3
1
2
13
