Batteries with
are equipped with a Bluetooth
radio interface. Local operating restrictions (e.g.
in airplanes or hospitals) must be observed.
2.2
Warning Notices in Text
DANGER
■ This notice refers to risks which result in seri‐
ous or fatal injury.
► Serious or fatal injuries can be avoided by
taking the precautions mentioned.
WARNING
■ This notice refers to risks which can result in
serious or fatal injury.
► Serious or fatal injuries can be avoided by
taking the precautions mentioned.
NOTICE
■ This notice refers to risks which can result in
damage to property.
► Damage to property can be avoided by tak‐
ing the precautions mentioned.
2.3
Symbols in Text
This symbol refers to a chapter in this
instruction manual.
26
3

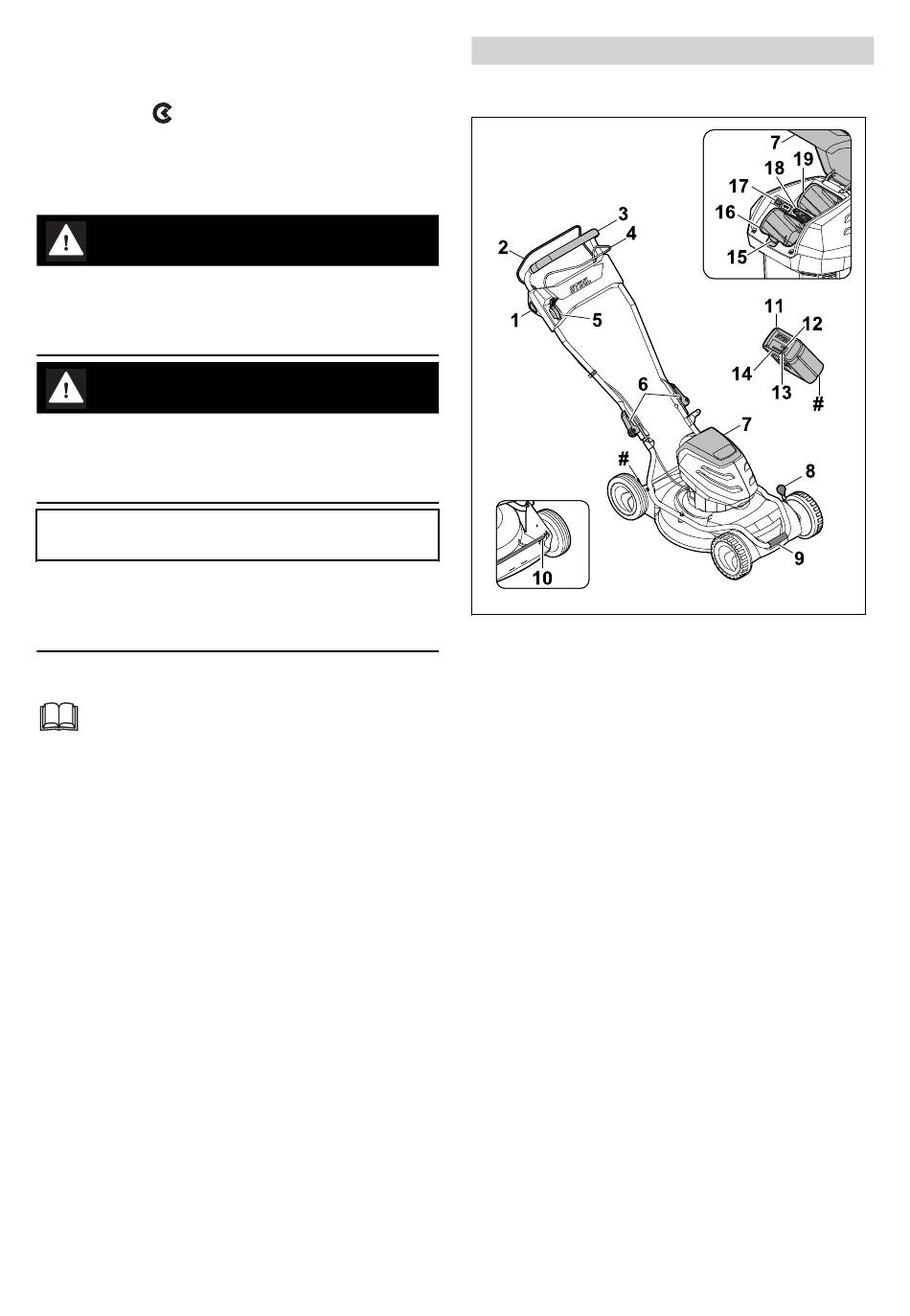

Overview
3.1
Lawn Mower and Battery
®
1 Locking button
The locking button switches the blade on and
off together with the control bar for mowing.
2 Control bar for mowing
The control bar for mowing switches the
blade on and off together with the locking but‐
ton.
3 Handlebar
The handlebar is used to hold, guide and
transport the lawn mower.
4 Control bar for self-propulsion
The control bar for self-propulsion engages
and disengages self-propulsion.
5 Lever
The lever is used to set the self-propulsion
speed.
6 Quick-clamping devices
The quick-clamping device clamps the upper
handlebar onto the lower handlebar and is
used to fold down the handlebar.
7 Flap
The flap covers the battery, the ECO switch
and the activation key and protects from soil‐
ing.
8 Lever
The lever is used to set the cutting height of
the front wheels.
3 Overview
