At this time we are in confi guration mode and it is possible to navigate and select parameters desired:
FACTORY SETTING?
FACTORY SETTING?
NO
SI
NO
SI
NO
NO
OK
MODE
<PI PRESSURE OK
OK
OK

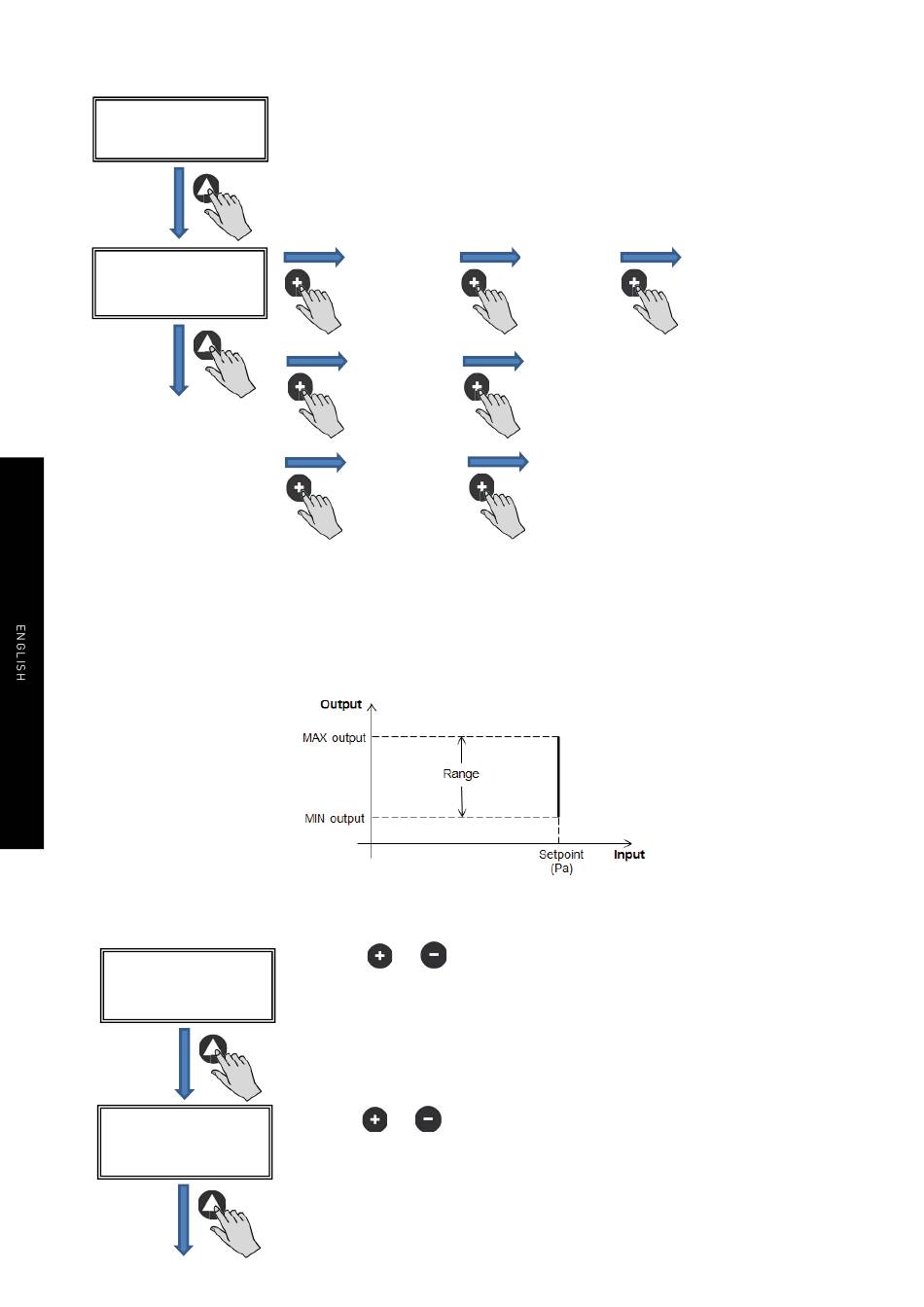

Operation: depending on mode selected, displayed parameters will be specifi c to each one. Ending "RTC" modes are only
activated in combination with programming schedule TIMER RTC accessory.

6.6.3. Operation PI PRESSURE/COP mode

In section 5 we have described that the fan comes from factory ready to work in constant pressure mode. However, it is also
possible to connect an external pressure transducer (0-10V or 4-20mA) that should be connected to J5 or J6 terminals.
After selecting the operating PI PRESSURE/COP mode, you can confi gure following parameters:
MIN-OUTPUT
<
20%
OK
OK
OK
MAX-OUTPUT
<
100%
OK
OK
OK
Pressing on "YES", it is reloaded factory settings
MODE
PI VOLUME
MODE
PIPRESS+RTC
MODE
PROP.+RTC
Operation PI PRESSURE/COP mode
Press
or
to manually modify the minimum
output parameter to the motor
Press
or
to manually modify the maximum
output parameter to the motor
44
MODE
MODE
MIN-MAX
PROPORT.
MODE
PIVOLUME+RTC
MODE
MIN-MAX+RTC
