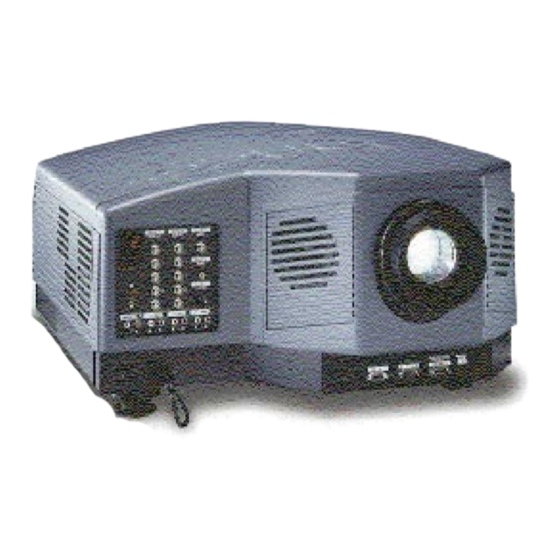

- Page 1 All manuals and user guides at all-guides.com BARCO PROJECTION SYSTEMS DATA 2100 R9001070 INSTALLATION MANUAL Date: 100696 Art. No. :R5975846 Rev. : 01 BARCO PROJECTION SYSTEMS...
- Page 2 All manuals and user guides at all-guides.com Due to constant research, the information in this manual is subject to change without notice. Produced by BARCO NV, November 1996 All rights reserved. Trademarks are the rights of their respective owners. Printed in Belgium...
-
Page 3: Table Des Matières
All manuals and user guides at all-guides.com Table of contents WARNINGS & TABLE OF CONTENTS ............................1-1 AVERTISSEMENTS & PRESCRIPTIONS DE SECURITE ......................1-1 Remarque sur la Sécurité ..............................1-2 Instructions pour l’installation ..............................1-2 Notice on safety ..................................1-3 Installation instructions ................................. -
Page 4: Warnings Avertissements
All manuals and user guides at all-guides.com Safety Instructions WARNINGS AVERTISSEMENTS Safety instructions Prescriptions de sécurite On safety sécurité On installation installation On servicing entretien et réparation On cleaning nettoyage On repacking re-emballage On illumination éclairage 5975846A BARCODATA 2100LC 200596 Safety Instructions WARNINGS AVERTISSEMENTS... -
Page 5: Remarque Sur La Sécurité
Lire ce manuel complètement avant de mettre l’appareil en fonction- nement et le conserver pour consultation ultérieure. L’installation et les réglages préliminaires devraient être faits par du personnel qualifié BARCO ou par des agents autorisés du service BARCO. 5975846A BARCODATA 2100LC 200596 Presciptions de sécurité... -
Page 6: Notice On Safety
Record these numbers in the spaces provided below. Refer international safety standards EN60950, UL 1950 and CSA C22.2 to them whenever you call upon your BARCO dealer regarding this No. 950, which are the safety standards of information technology product. -
Page 7: Presciptions De Sécurité
All manuals and user guides at all-guides.com Presciptions de sécurité ATTENTION RISQUE D'ELECTRO- CUTION NE PAS OUVRIR ATTENTION : AFIN DE REDUIRE LE RISQUE DE CHOCS ELECTRIQUES, NE PAS ENLEVER LE COUVERCLE (OU LE DOS) IL N'Y A PAS DE PIECES REPARABLES PAR L'UTILISATEUR A L'INTERIEUR LE SERVICE NE PEUT ETRE EFFECTUE QUE PAR DU PERSONNEL QUALIFIÉ... -
Page 8: Safety Instructions
All manuals and user guides at all-guides.com Safety Instructions The lightning flash with an arrowhead within a The exclamation point within a triangle is in- triangle is intended to tell the user that parts tended to tell the user that important operating inside this product are risk of electrical shock and/or servicing instructions are included in the to persons. -
Page 9: Prescriptions De Securite Générales
All manuals and user guides at all-guides.com Presciptions de sécurité toutes les mesures requises pour les amoindrir, à ses propres frais. mise à la terre. Le connecteur n’est adapté qu’à des prises de courant Instructions pour l’utilisateur : du type avec terre. Ceci est une mesure de sécurité. Si le connecteur ne s’adapte pas dans la prise, contacter votre électricien pour Si cet équipement cause des interférences de radio ou de télévision, remplacer la prise non valable. -
Page 10: General Safety Instructions
All manuals and user guides at all-guides.com Safety Instructions Instructions to the user : plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug. if this equipment does cause interference to radio or television reception, the user may try to correct the interference by one or more of the following measures : WARNING FOR THE CUSTOMERS: THIS APPARATUS MUST BE... -
Page 11: L'installation
All manuals and user guides at all-guides.com Presciptions de sécurité * Ne jamais introduire un objet quelconque dans l’appareil à travers * Les fentes et les ouvertures pourvues dans le boîtier et au dos ou les fentes du boîtier, car ils pourraient être en contact avec des sur le fond, sont destinées à... -
Page 12: On Installation
15 risk of electric shock! Refer all projector service to a qualified BARCO minutes. Then the projector may be switched off with the power service center. -
Page 13: Nettoyage
Eclairage N’utiliser que des lampes de projection indiquées par BARCO ou un agent autorisé de BARCO ou un service. Pour garantir la meilleure qualité possible de l’image projetée, il est essentiel que l’éclairage ambiant incident sur l’écran soit réduit au... -
Page 14: On Cleaning
Replacement parts - When replacement parts are required, be sure To ensure the highest optical performance and resolution, the projec- the service technician has used original BARCO replacement parts or tion lenses are specially treated with an anti-reflective coating, authorized replacement parts which have the same characteristics as therefore : avoid touching the lens. - Page 15 All manuals and user guides at all-guides.com Presciptions de sécurité Lors de l’installation du projecteur et de l’écran, il faut veiller à éviter toute exposition directe de l’écran à la lumière ambiante. Eviter tout éclairage perturbateur sur l’écran par des rayons du soleil ou des éclairages fluorescents.
- Page 16 All manuals and user guides at all-guides.com Safety Instructions When installing the projector and screen, care must be taken to avoid exposure to ambient light directly on the screen. Avoid adverse illumination on the screen from direct sunlight or fluorescent lighting fixtures.
-
Page 17: Power Connection
All manuals and user guides at all-guides.com Power Connection POWER CONNECTION 5975846 BARCODATA 2100 100696 2 - 1 Power Connection... -
Page 18: Power (Mains) Cord Connection
All manuals and user guides at all-guides.com Power Connection Power (mains) cord connection Use the delivered power cord to connect your projector to the wall outlet. Plug the female power connector into the male connector at SOURCE 5 SOURCE 4 SOURCE 1 RGBH/CV RGBH/CV... -
Page 19: Input Power (Mains) Voltage Adaptation
Power Connection Input Power (mains) voltage adaptation Attention The BARCODATA 2100 - R9001070 leaves the factory to operate on a mains (power) input of 230Vac. Adaptation of the power input of the projector from 230 Vac to 120Vac or vice versa is possible. Follow the procedure as described below. - Page 20 All manuals and user guides at all-guides.com Power Connection The switched mode power supplied is located on right side of the projector. - Remove the black protection plate by turning out the 5 screws (indicated with a white arrow) and loosening the both screws (indicated with a hand).
-
Page 21: Fuses
All manuals and user guides at all-guides.com Power Connection -Pull out the 'power selector plug' and re-insert it as illustrated, depending on the walll outlet of the room. - Close the top cover and secure with both locking screws. Fuses Warning For continued protection against fire hazard : - replace with the same type of fuse. -
Page 22: Switching On
All manuals and user guides at all-guides.com Power Connection Switching on SOURCE 5 SOURCE 4 SOURCE 1 Use the power switch to switch on. RGBH/CV RGBH/CV VIDEO When '0' is visible, the projector is switched off. When '1' is visible, the projector is switched on. SOURCE 2 VIDEO SOURCE 3... -
Page 23: Switching To Stand-By
(normal power mode). Do not use it longer. Replace always with a Operating the lamp longer than 1000 hours may damage same type of lamp. Call a BARCO authorized service technician for the projector. Please replace the lamp lamp replacement. -
Page 24: Switching Off
All manuals and user guides at all-guides.com Power Connection Switching off To switch off: - press first STANDBY key and let cool down until the fans stop blowing ( or at least 15 min). - switch off the projector with the power switch. 2 - 8 5975846 BARCODATA 2100 100696 Power Connection... -
Page 25: Password Set Up
All manuals and user guides at all-guides.com Password set up PASSWORD SET UP 5975846 BARCODATA 2100 270396 Password set up... -
Page 26: How To Enable Or Disable The Password Function
All manuals and user guides at all-guides.com Password set up How to enable or disable the password function ? The password function is enabled when the password strap on the controller module is installed. To get acces to the controller module, handle as follows : - Power down the projector and disconnect the power cord from the wall outlet. - Page 27 All manuals and user guides at all-guides.com Password set up When the strap is on the right leg and the middle leg, the password function is enabled, when the strap is on the left leg and the middle leg, the password function is disabled. Password enabled Password disabled 5975846 BARCODATA 2100 270396...
-
Page 28: How To Change The Password
All manuals and user guides at all-guides.com Password set up How to change the password ? SERVICE IDENTIFICATION Highlight Change password by pushing the control stick forward or CHANGE PASSWORD CHANGE PROJ. ADDRESS backward and press ENTER to display the Change Password menu. CHANGE BAUDRATE PC RESET LAMP RUNTIME LAMP RUNTINE HISTORY... - Page 29 All manuals and user guides at all-guides.com 100% OFF-AXIS Projection 100% OFF-AXIS PROJECTION 5975846 BARCODATA 2100 191196 100% OFF-AXIS Projection...
- Page 30 All manuals and user guides at all-guides.com 100% OFF-AXIS Projection How to modify the projector for 100% off-axis projection. Note : 100% off axis projection is only possible with the SD(1.7:1) lens. a. Mount first the 2 supporting feet extensions. Handle as follows : - Turn the projector upside down.
- Page 31 All manuals and user guides at all-guides.com 100% OFF-AXIS Projection Mount the extensions by turning them in clockwise. Turn in the plastic supporting feet in the extensions. Place the projector on its feet. Adjust the projector feet until the projector is water leveled. 5975846 BARCODATA 2100 191196 100% OFF-AXIS Projection Mount the extensions by turning them in clockwise.
- Page 32 All manuals and user guides at all-guides.com 100% OFF-AXIS Projection b. Adjust the fresnel lens to correct the keystone. To get access to the fresnel lens, handle as follows : - Turn both lock screws of the top cover with a screwdriver or coin counter clockwise and left up and pivot the top cover.
- Page 33 All manuals and user guides at all-guides.com 100% OFF-AXIS Projection - Turn slowly the lens unit to the front of the projector until the keystone distorsion is eliminated. Caution : Do not touch the lens unit with your fingers. Secure the correct position by fastening both locking screws. - Re-install the top cover.
- Page 34 All manuals and user guides at all-guides.com BARCO nv/Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Printed in Belgium...
