English
7
: It must be possible to turn the rope
rotor on another half-turn when the
rope has been drawn out
completely. If this is not possible,
the spring has been tensioned too
tightly and may break. Remove one
turn of the rope from the rotor.
: Refit the starter cover

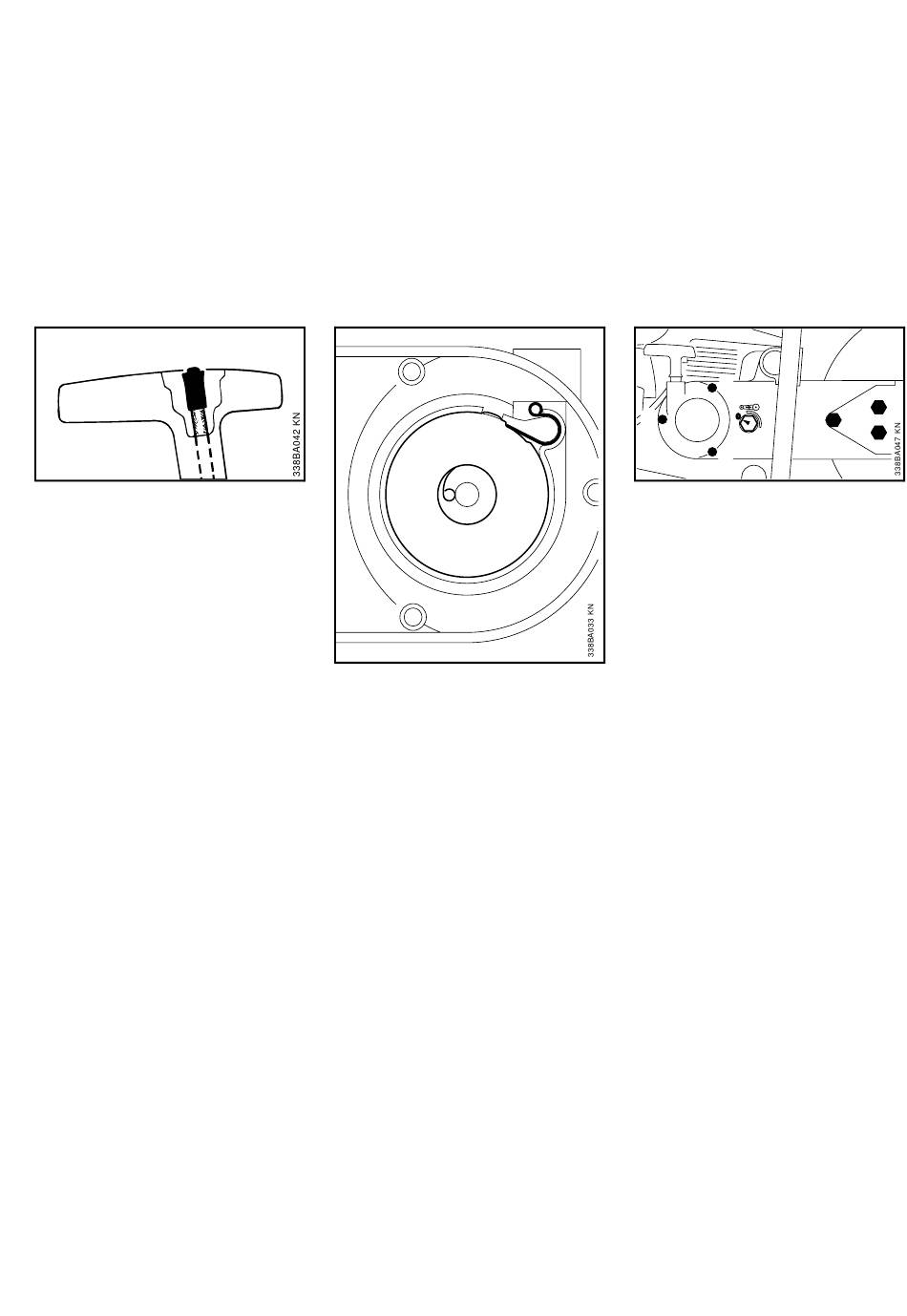

: Press the remainder of the rope into
the handle until the nipple (7) is
flush with the handle
Replacing a broken rewind spring
: Remove the rope rotor as described
for "Replacing the starter rope"
: Remove the spring housing and
spring parts
34
: Fit a new spring housing with the
bottom upwards and guide the outer
spring loop round the lug
: Refit the rope rotor
: Tension the rewind spring
: Refit the fan housing and screw it
into place
If the spring has popped out of the
spring housing:
: Replace it, working anticlockwise
from the outside inwards

Replacing the V-belt

3
3
4
3 1
: The arrow on the tensioning nut (1)
must point to "0".
: Turn the tensioning nut approx.
1/4 turn anticlockwise as far as the
stop = "0" with the combination
wrench.
: Unscrew the hexagon bolts (2)
: Remove the V-belt guard and
bearing with guard
: Undo the screws (3) in the starter
cover
: Remove the starter cover
: Remove the defective V-belt form
the cast arm
: Carefully insert the new V-belt in the
cast arm and in the V-belt pulley on
the engine
: Fit the starter cover
: Hold the bearing with guard against
the cast arm
2
TS 400
