back

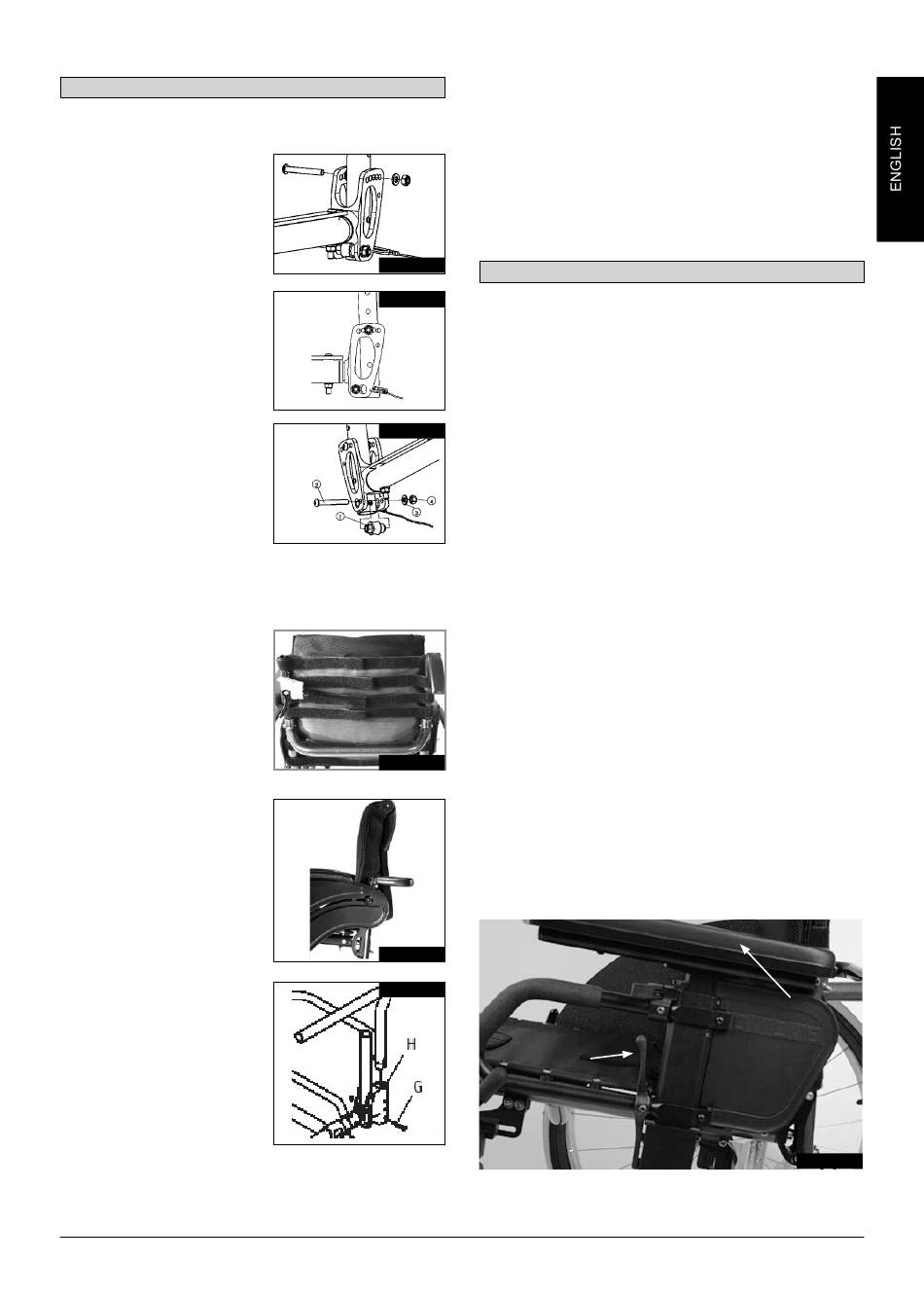

angle adjustment of the folding backrest:
1. Open the upper screws and
loosen the screw connection
(Fig.6.17).
2. The hole in the back tube must
be lined up with the hole in the
connecting part, such that you
can set the desired backrest
angle (Fig.6.18).
3. Fit the screw connection with
the nut and washer until they
are hand tight, so that there
is no lateral play between the
components. But you must still
be able to fold the back tube
down
easily.
4. Set the folding mechanism: To
do this, loosen the nuts on the
cam slightly (Fig.5.19). Set the
cam (component 1) such that the
folding mechanism locks
into place with no play (if
necessary use a 10 mm open-
ended spanner to do this). Then
hold the cam in position and
tighten the nuts (5 Nm).
5. Repeat steps 1 to 4 for the second side.
adjustable back sling
(Fig.6.20)
The adjustable back-sling can
be adjusted for tension by using
several straps.
The back-sling upholstery can be
accessed from the inside via an
opening and can be upholstered to
suit individual tastes
height adjustable backrest
(Fig.6.21)
The backrest height can be
adjusted to 5 different positions
(38–48 cm). Open and remove the
bolt (1) and move the back tube
into the desired position. Then fix
the bolt again.
standard sideguard, flip-up,
removable with short or long
arm pads
(Fig.6.22)
With the sideguard which is
stepped down at the front it is
possible to move up closer to a
table. To flip them up press the
lever (G) forwards, so that the
sideguard is released.
attentIon!
Sideguards, and the armrests are not designed to be used to lift
or carry the wheelchair.
0505/2/ST-000690645.EMS 1B
sideguard, flip-up, removable with short or long arm pads,
height-adjustable (Fig.6.23)
The arm pad can be height-adjusted in the following way. Pull
the lever (1) and adjust the arm pad (2) to the desired height.
Release the lever and push the arm pad (2) down until you hear
it click into place.
attentIon!
Sideguards, and the armrests are not designed to be used to lift
or carry the wheelchair.
Fig.6.17

armrest

Fig.6.18
quickie – height adjustable armrest
1. Fitting
a. Push the outside armrest support into the clamp which is
mounted on the chair frame.
b. The armrest will automatically lock into place.
2. Height adjustment
Fig.6.19
a. Turn the release lever to the second position.
b. Push the arm support up or down to the required height.
c. Turn the release lever back to the armrest locking position.
d. Push the arm support in until the upper armrest locks into
position.
3. Removing the armrest
a. Turn the release lever to the first position and remove the
armrest.
4. Changing the armrest
a. Push the armrest back into the clamp.
b. Turn the release lever back to the armrest locking position.
5. Adjusting the fit of the armrest receiver
To tighten or slacken the fit of the outside armrest in the
clamp:
a. Release the four bolts on the sides of the clamp.
b. Hold the armrest in the clamp and squeeze the clamp
together at the required fit.
c. Tighten up the four bolts.
Fig.6.20
6. Adjusting the fit of the inner armrest
a. The outside armrest is fitted with two stud bolts.
b. Turn stud bolts in or out as required until you have found the
desired fit.
Fig.6.21
Fig.6.22
1
2
Fig.6.23
ARGON
13
