Identification des pièces

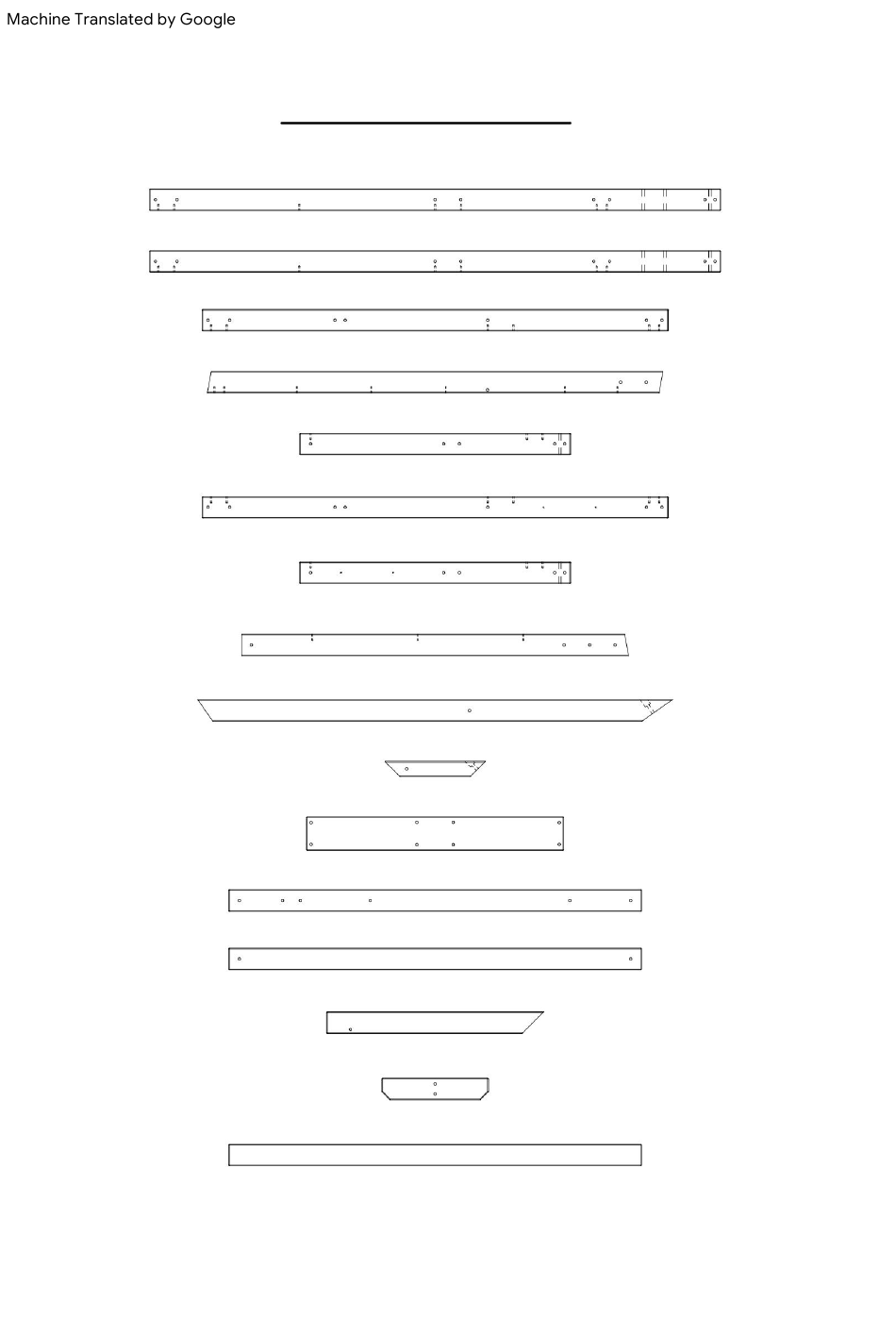

Composants en bois
(PAS À L'ÉCHELLE)
E1 - PIED DE TOUR - W4L04821
(1)
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
E2 - PIED DE TOUR - W4L04822
(1)
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
E3 - PIED DE TOUR - W4L04817
(1)
1 3/8"x3 3/8"x73 1/8" (36x86x1856)
E4 - MONTANT MONKEY BAR - W101733
(2)
1 3/8"x3 3/8"x71 3/8" (36x86x1812)
E5 - PIED CLUB HOUSE - W101490
(1)
1 3/8"x3 3/8"x42 1/2" (36x86x1078)
E6 - PIED DE TOUR - W4L04825
(1)
1 3/8"x3 3/8"x73 1/8" (36x86x1856)
E7 - PIED CLUB HOUSE - W4L04826
(1)
1 3/8"x3 3/8"x42 1/2" (36x86x1078)
E71 - RAIL MONKEY BAR - W102369
(2)
1 3/8"x3 3/8"x60 5/8" (36x86x1539)
E77 - RENFORT D'ANGLE - W4L04854
(2)
1 3/8"x3 3/8"x74 3/8" (36x86x1890)
F1 - RENFORT DE PONT - W101504
(4)
1 3/8"x2 3/8"x15 3/4" (36x60x400)
G1 - MONTAGE SUR POUTRE PIVOTANTE - W101495
(1)
1"x5 1/4"x40 3/8" (24x134x1024)
H1 - RAIL AU SOL - W4L04823
(1)
1"x3 3/8"x64 3/4" (24x86x1644)
H2 - RAIL AU SOL - W101457
(1)
1"x3 3/8"x64 3/4" (24x86x1644)
H3 - CHEVRONS DE TOIT - W101502
(4)
1"x3 3/8"x34" (24x86x864)
H4 - SUPPORT DE TABLE - W4L04818
(2)
1"x3 3/8"x16 3/4" (24x86x424)
H5 - SOLIVE DE PLANCHER - W102374
(1)
1"x3 3/8"x64 3/4" (24x86x1644)
