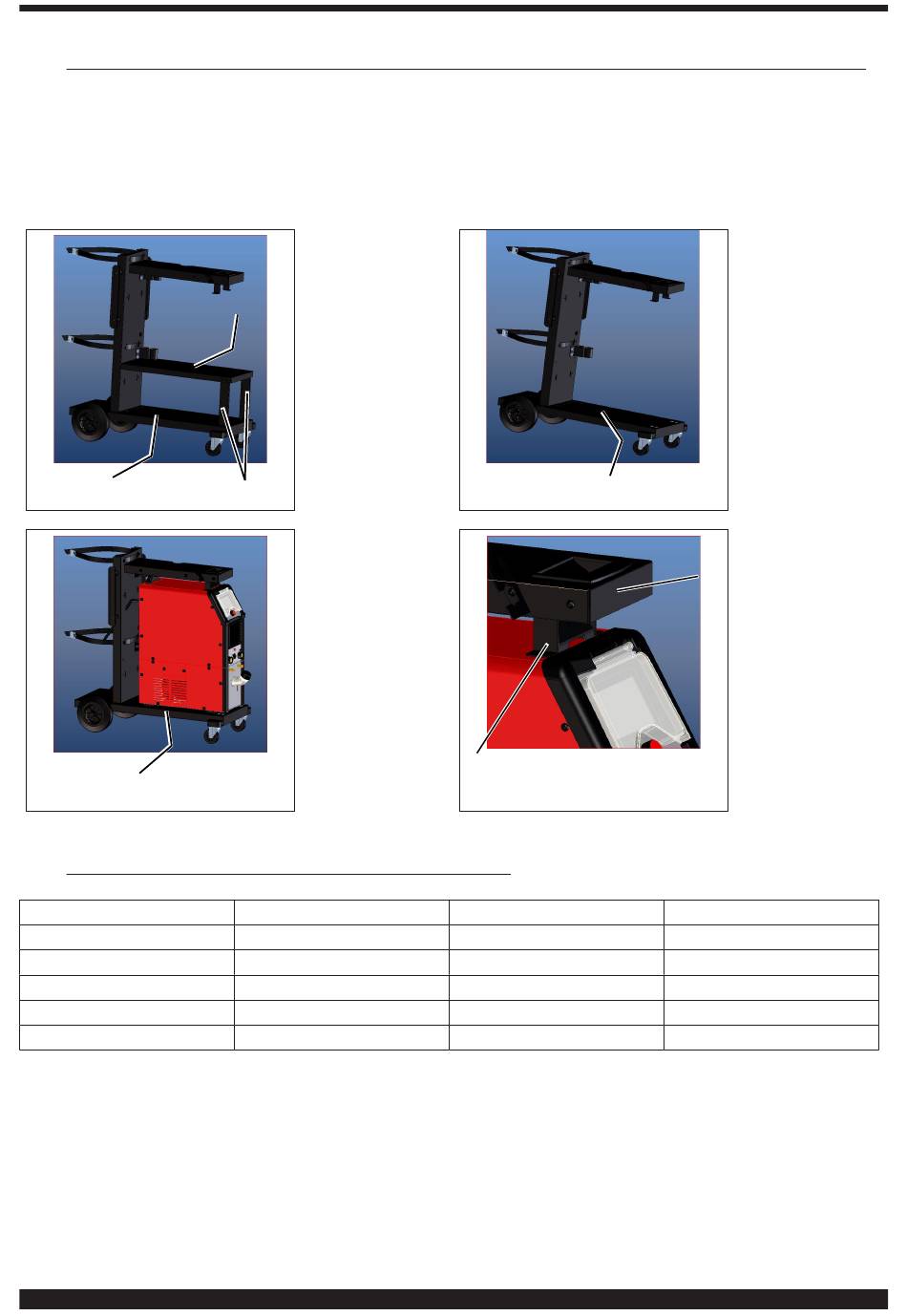

Connecting the power source, complete with cooling unit, to transport trolley Item No 1676

♦
Remove the middle panel I and the 2 supports L from the trolley (see fig.)
♦
Assemble the complete power source on the bottom M of the transport trolley, securing it with the 4 screws
provided with the cooling unit (see fig.)
♦
Secure the top of the power source to the handle support O using the bracket N (see fig.)
M
M
4

MOTORISED PUMP SPECIFICATIONS PLATE DATA

U1 230 V
Frequency
Power consumed
Current consumption
Motor RPM
Maximum pressure head
14
I
L
50 Hz
210 W
1 A
2850 RPM
3.7 bar
M
N
U1 230 V
Frequency
Power consumed
Current consumption
Motor RPM
Maximum pressure head
O
60 Hz
300 W
1.3 A
3300 RPM
4.7 bar
