09. Installation and commissioning

• Check that the scope of delivery of your oil heat-
ing unit is complete. If an accessory part is miss-
ing, please contact the Trotec customer service or
the specialist dealer from whom you purchased
the device.
• Check the oil heating unit and its connection parts
for possible damages.
• Mount the support/the handle and the wheels to
the oil heating unit.
• Make sure to comply with the requirements de-
scribed in the chapter "Installation conditions".
• Correctly connect the exhaust system of the device
to a chimney or an external wall as shown in the
chapter "Exhaust system".
• Fill the heating oil into the tank with the device
switched off and cooled down.

10. Functions and operation

The device may only be used by persons who have
been trained in operating the device.

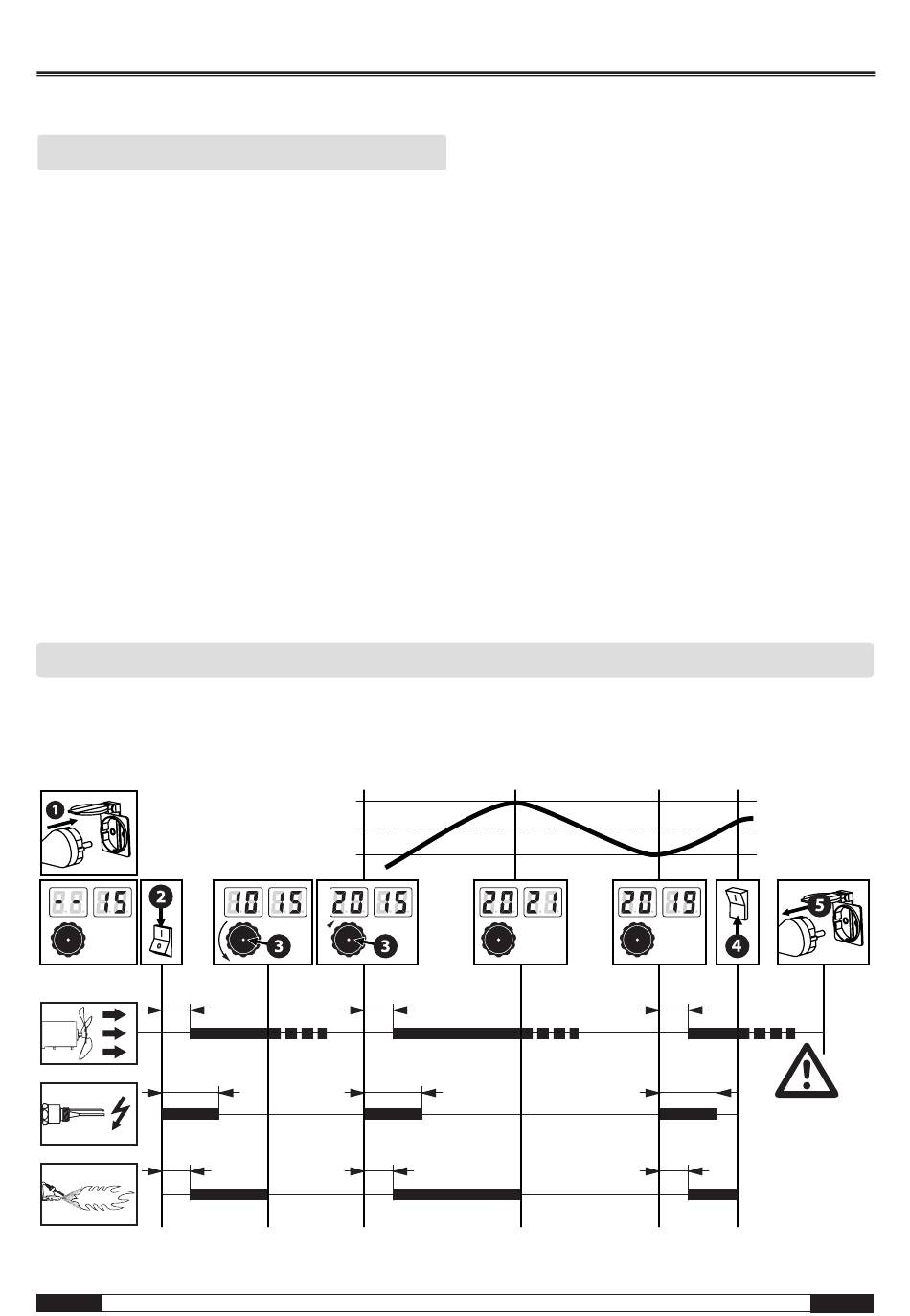

Switching on the oil heating unit

room temperature:
5s
10s
5s
EN
21°C
20°C
19°C
5s
0-60s
10s
5s
Operating Manual – IDE 20 D/ 30 D / 50 D / 70 D
• Inspect the device prior to commissioning and
check it regularly for its proper condition during
operation.
• Make sure that the characteristics of the mains sup-
ply correspond to those indicated on the rating plate.
• Each time before switching on the device, make
sure that the fan can move freely before plugging
the power plug into the mains socket.
• Connect the power supply cable to a properly se-
cured mains socket (230 V / 50 Hz / 10 A). On con-
struction sites, a residual current circuit breaker
must be connected upstream of the mains socket
according to VDE 0100/0105.
The oil heating unit is now ready for operation. Use
the device according to the functions described in
chapter 11 "Functions and operation".
0-60s
0
5s
0-60s
10s
Wait cooling-
off period!
