Assembly instructions
for drawbar Models R4, K4

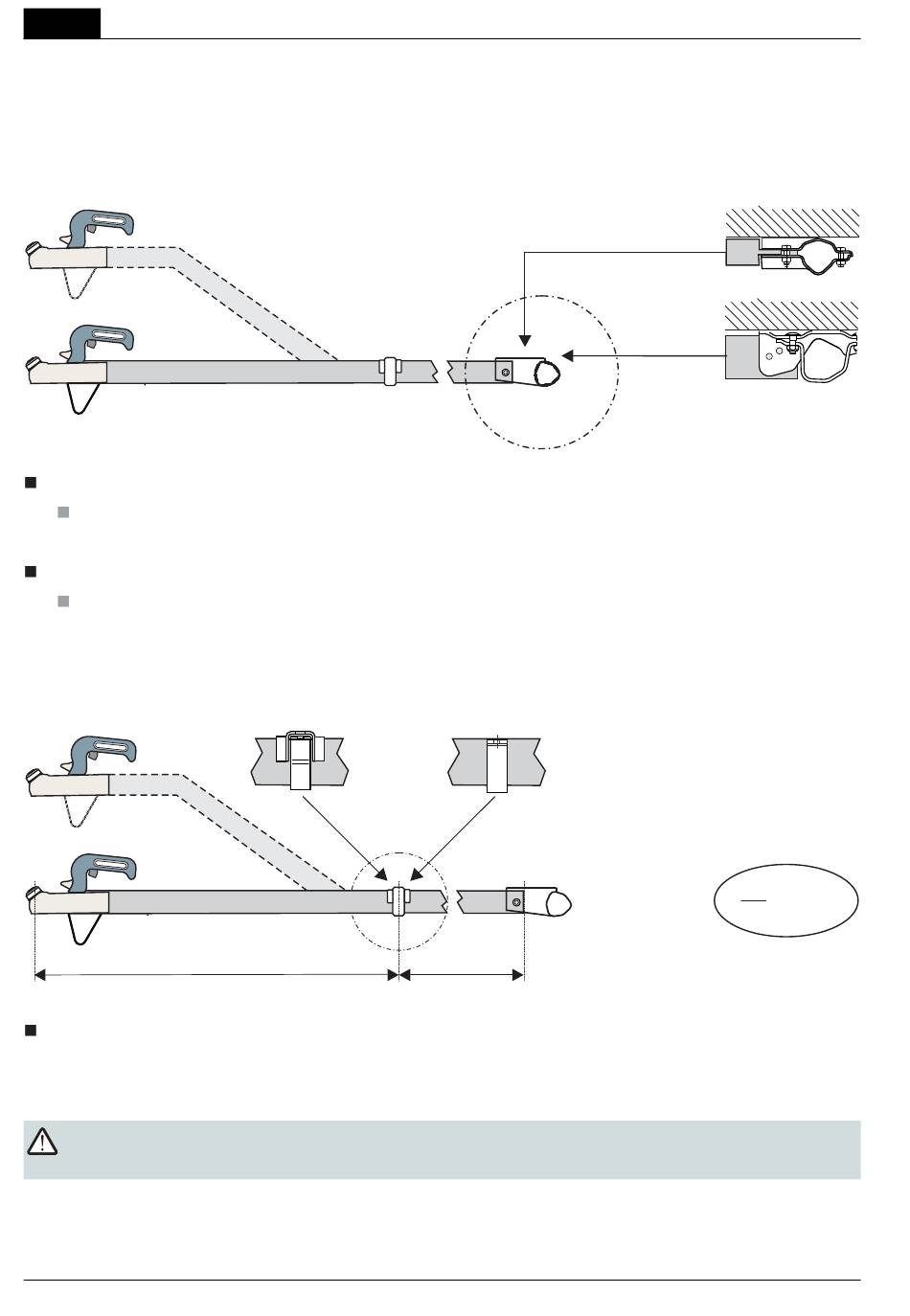

Bolting the drawbar to the axle and clamp connection
Drawbar connection profi le (a)
Fit the clamping bracket with four M12 hexagon bolts.
Drawbar connection profi le (b)
Fit the drawbar using an M12 hexagon bolt.
Bolting the drawbar to the trestle and clamping bracket
Attach the clamping bracket to the frame (front edge of the assembly) using two M12 bolts.
Assembly procedure is the same for trestle a and b.
.
Caution!
Observe the length ratio (L1 : L2 < 2.5).
4
a
L1
b
L2
Translation of original user instructions
Drawbar
a
b
L1
< 2,5
L2
