Handbrake Lever
This lever provides you with emergency stopping power.
When in motion, release the throttle control lever and
gently squeeze the handbrake lever to come to a stop.
Handbrake eff ectiveness can be modifi ed by tightening
or loosening the setscrew located on the handbrake lever.
WARNING! The handbrake is intended for
use as a supplemental braking.
LOWER TILLER (available on models 123, 124, 133,
134, 143, 144, 614, 714, 3120, 3130 and 3140 only)
Off-board Charger Port
The off -board charger power cord plugs into this port
during battery charging. The off -board charger port will be
located on the tiller. See fi gure 7.
Electrical System Fuses
For information and a complete description of the fuse
system, see fi gure 2.
Tiller Adjustment Lever or Tiller Adjustment Knob
See V. "Comfort Adjustments".
Key Switch
 Insert the key into the key switch and turn it clockwise
to power up (turn on) your scooter. See fi gure 7.
 Turn the key counterclockwise to power down (turn
off ) your scooter.
WARNING! When faced with an emergency
situation, switch off the key to power off
the scooter. Use caution. Be advised that
turning off power to the scooter may cause
the scooter to stop abruptly. To release
the emergency stop and restore driving
capability to the scooter, release the
throttle control lever and then switch on
the key to the scooter.
WARNING! If the key is turned to the "off"
position while your scooter is in motion,
the electronic brakes will engage and your
scooter will come to an abrupt stop!
Throttle Control Lever Switch
This switch dictates which throttle control lever (left or
right) will function. See fi gure 7.
 Toggle the switch up to activate the left throttle control
lever.
 Toggle the switch down to activate the right throttle
control lever.
18
I I . Y O U R S C O O T E R
IDENTIFICATION KEY
1. OFF-BOARD CHARGER PORT
2. FUSE PANEL
3. TILLER ADJUSTMENT KNOB
4. KEY SWITCH
5. *THROTTLE CONTROL LEVER SWITCH
6. WATER BOTTLE HOLDER
7. MIRROR
8. USB CHARGER
*OPTIONAL COMPONENTS AVAILABLE ON SOME
A
3
1
2
6
B
4
1
2
8

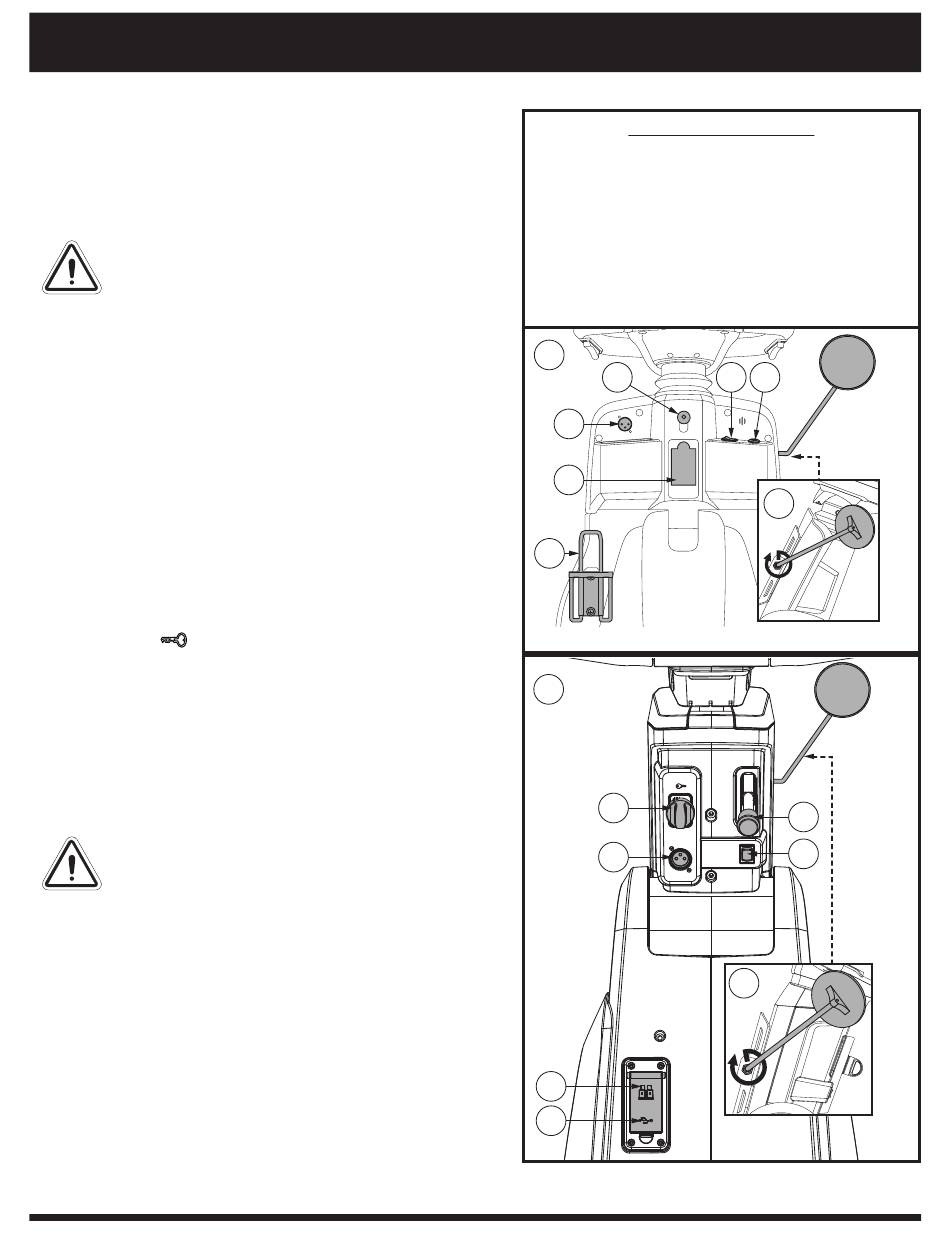

Figure 7. Lower Tiller Components
MODELS
5 4
7
*MODELS 614 OR 714
3
5
7
Full-size Scooter Series
