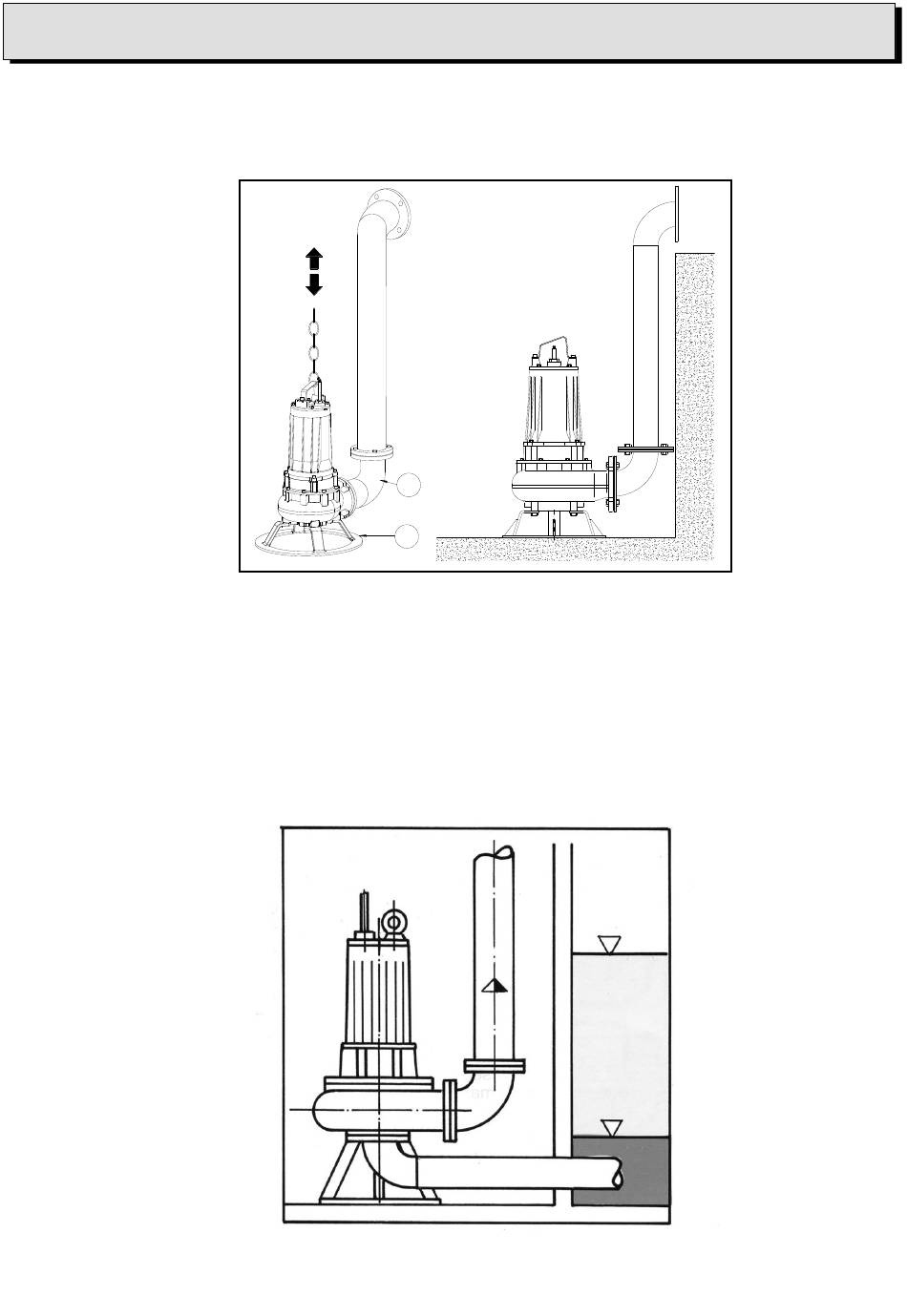

TRANSPORTABLE INSTALLATION
Assemble the support frame (1) on the pump suction and the flanged curve (2) for the connection of the main pipe on the pump
delivery by suitable fixing bolts. Eventual non-return and gate valves must be mounted on a rigid outlet pipeline. Place the electric
pump on a solid base for preventing turnover and sinking; the electric pump can work also in suspension, hooked to handle or eyebolt.
Pipes and valves must be sized according to pump performances.
2
1
DRY PIT INSTALLATION
The electric pump for dry chamber installation is supplied equipped with a special duck-foot pedestal allowing to assemble the glanged
inter curve which can be positioned and oriented according to installation requirements. It's advisable, in outlet, to mount a suitable air
valve. The same otlet can be used for connection of a manometer.
