Introduction
The Commander C200 and C300 is a simple and flexible range of drives from 0.25 kW to 132 kW in 9 frame sizes
and three input voltage ranges (100 V, 200 V, and 400 V).
This Step-by Step guide provides simple step-by-step instructions on how to mount the drive, fuse and cable
selection, wiring the drive-up, programming the drive and running the motor in analog input mode or keypad mode
on frames 1 to 4.
The following information is available for download at 'www.drive-setup.com':
• Commander C200/C300 Quick Start Guide
• Commander C200/C300 Control User Guide
• Commander C200/C300 Power Installation Guides
• Commander C200/C300 Parameter Reference Guide
• Commander C200/C300 Set-up videos
Features of the drive

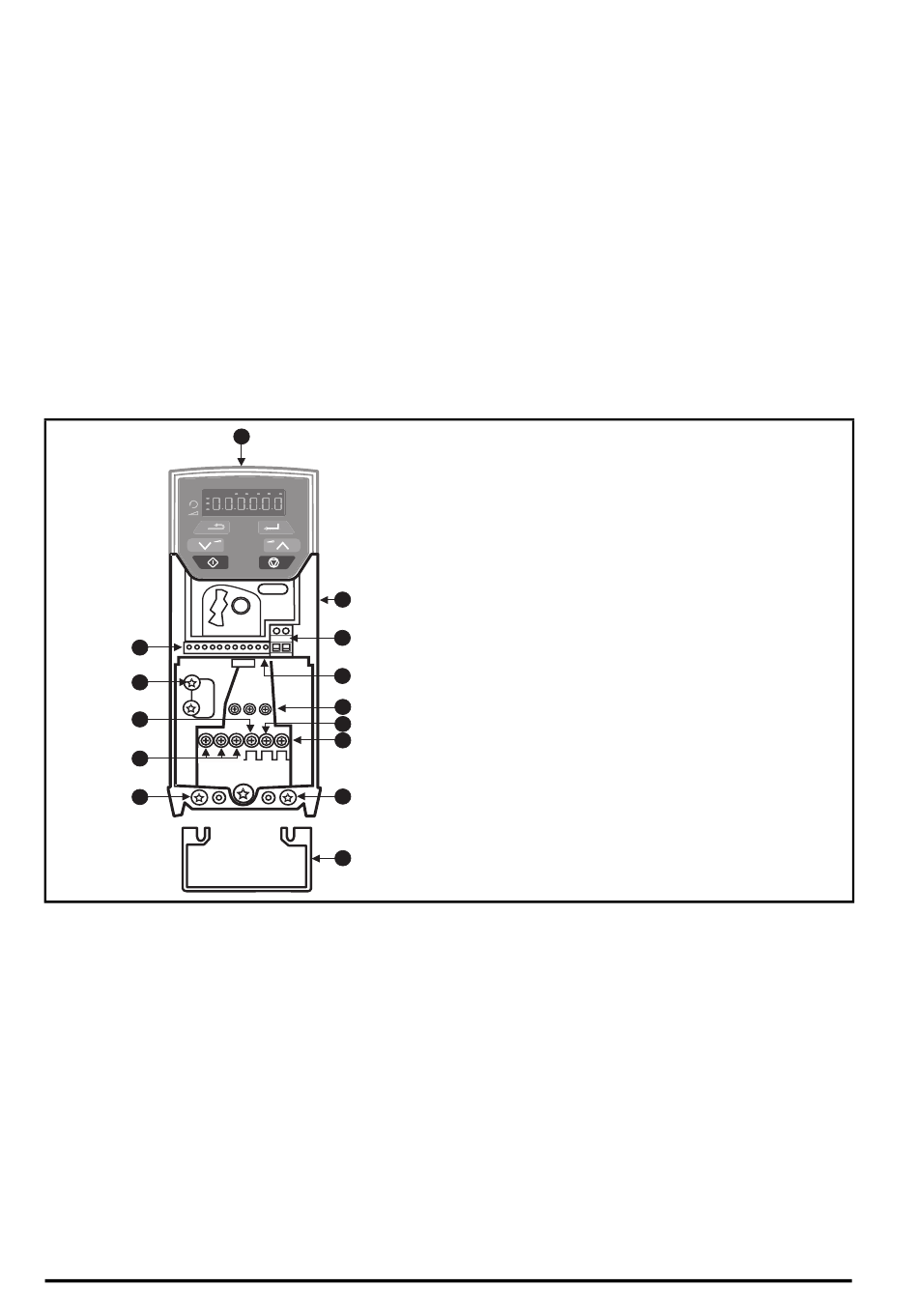

Figure 1-1 Feature diagram (size 2 shown)
+
4
EMC
6
8
MOV
9
U V
11
2
2
1
3
12
L1 L2 L3
10
7
5
W - + BR
11
13
Key
1. Rating label (on side of drive)
2. Identification label
3. Relay connections (Refer to Figure 6-3)
4. Control connections (Refer to Figure 6-3)
5. Braking terminal
6. Internal EMC filter screw*
7. DC bus +
8. DC bus -
9. Motor connections (Refer to Figure 6-1)
10. AC supply connections (Refer to Figure 6-1)
11. Ground connections (Refer to Figure 6-2)
12. Safe Torque Off terminals (STO)
(Refer to Figure 6-4)**
13. Cable bracket to screw onto ground terminals (11).
* Before removing the screw, refer to section 4.7.2 in the
Power Installation Guide.
** Commander C300 only.
