Shure SVX Wireless
Congratulations on purchasing your SVX Wireless system from Shure. Shure professional audio
products deliver legendary sound quality, stage-proven durability and hassle-free setup. The SVX
Wireless System comes with your choice of lavalier, handheld, or headset microphone making it an
ideal choice for presentation, karaoke performance, aerobics/fitness instruction or other applications
where the freedom of wireless is desired.

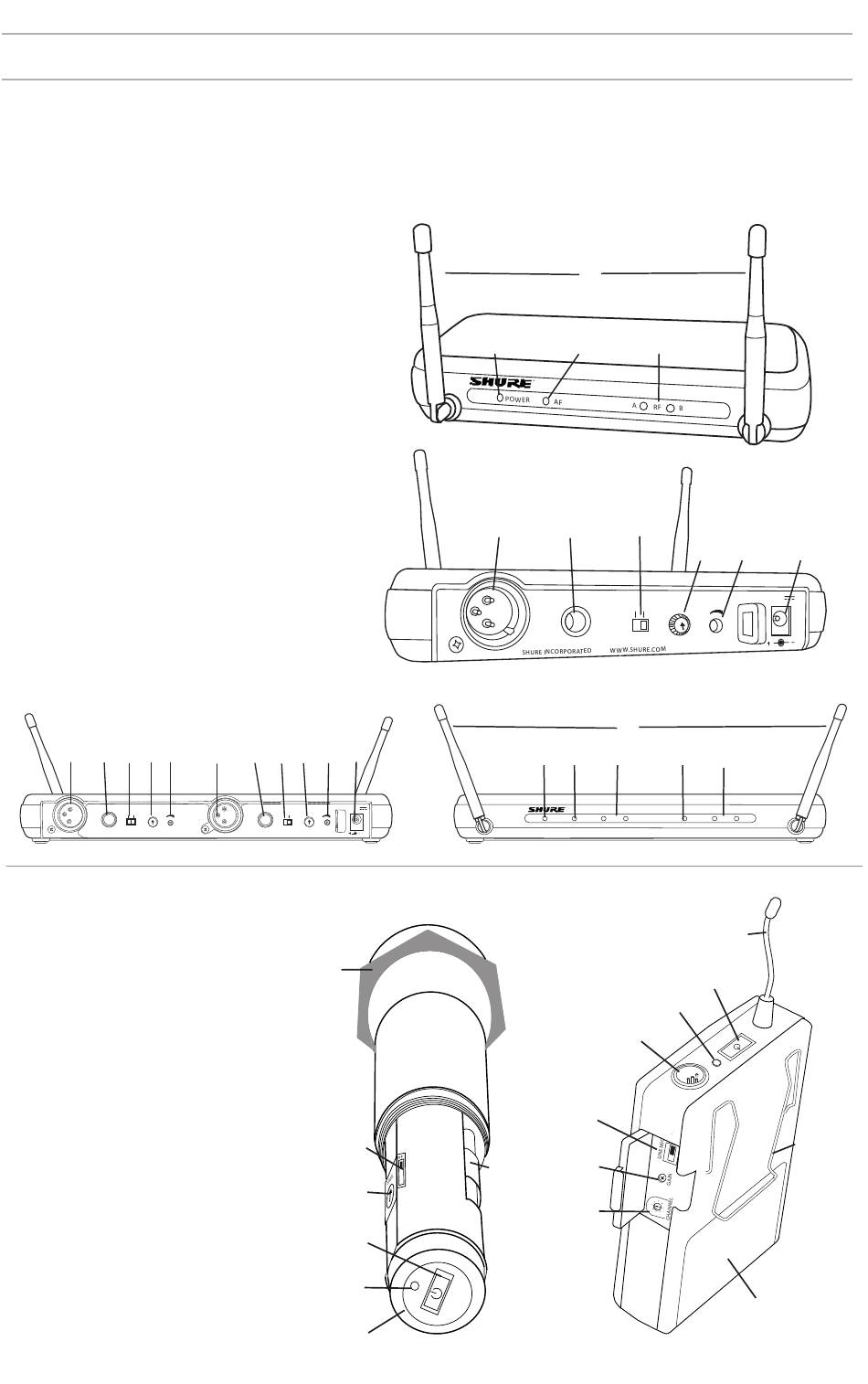

Receiver
① Power LED light
② Audio Frequency LED light
③ Radio Frequency Diversity lights
④ Balanced output (XLR connector)
⑤ Unbalanced output (6.35mm
connector)
⑥ Audio output level (line/mic) switch
⑦ Channel selection dial
⑧ Squelch dial
⑨ Power adapter input
⑩ Antennas
SVX88
④ ⑤ ⑥ ⑦ ⑧
BAL. UNBAL. CHANNEL
LINE MIC SQ
3
2 4
1 A
D B
C
Transmitter
① Power button
② Channel selection dial
③ Audio input level (line/mic)
switch
④ Battery compartment
⑤ Transmitter gain dial
⑥ Belt clip
⑦ Mic input (PG185 Lavalier or
PG30 Headworn)
⑧ Radio Frequency (RF) level
switch
⑨ Antenna
⑩ Color ID rings
⑪ Anti-roll ring
⑫ Power LED light
6
④ ⑤ ⑥⑦ ⑧ ⑨
BAL. UNBAL. CHANNEL 12-18V
500mA
LINE MIC SQ
3
2 4
1 A
D B
C
⑪
⑧
②
①
⑫
⑩
①
SVX4
④
BAL.
① ②
④
⑩
② ③
⑤ ⑥
⑦ ⑧
UNBAL.
CHANNEL
SQUELCH
LINE MIC
3
2 4
1 A
B
D
C
⑩
③ ② ③
Antenna Diversity Receiver
POWER AF A RF B AF A
①
⑫
⑦
③
⑤
②
⑨
12-18V
500mA
RF B
⑨
⑥
④
