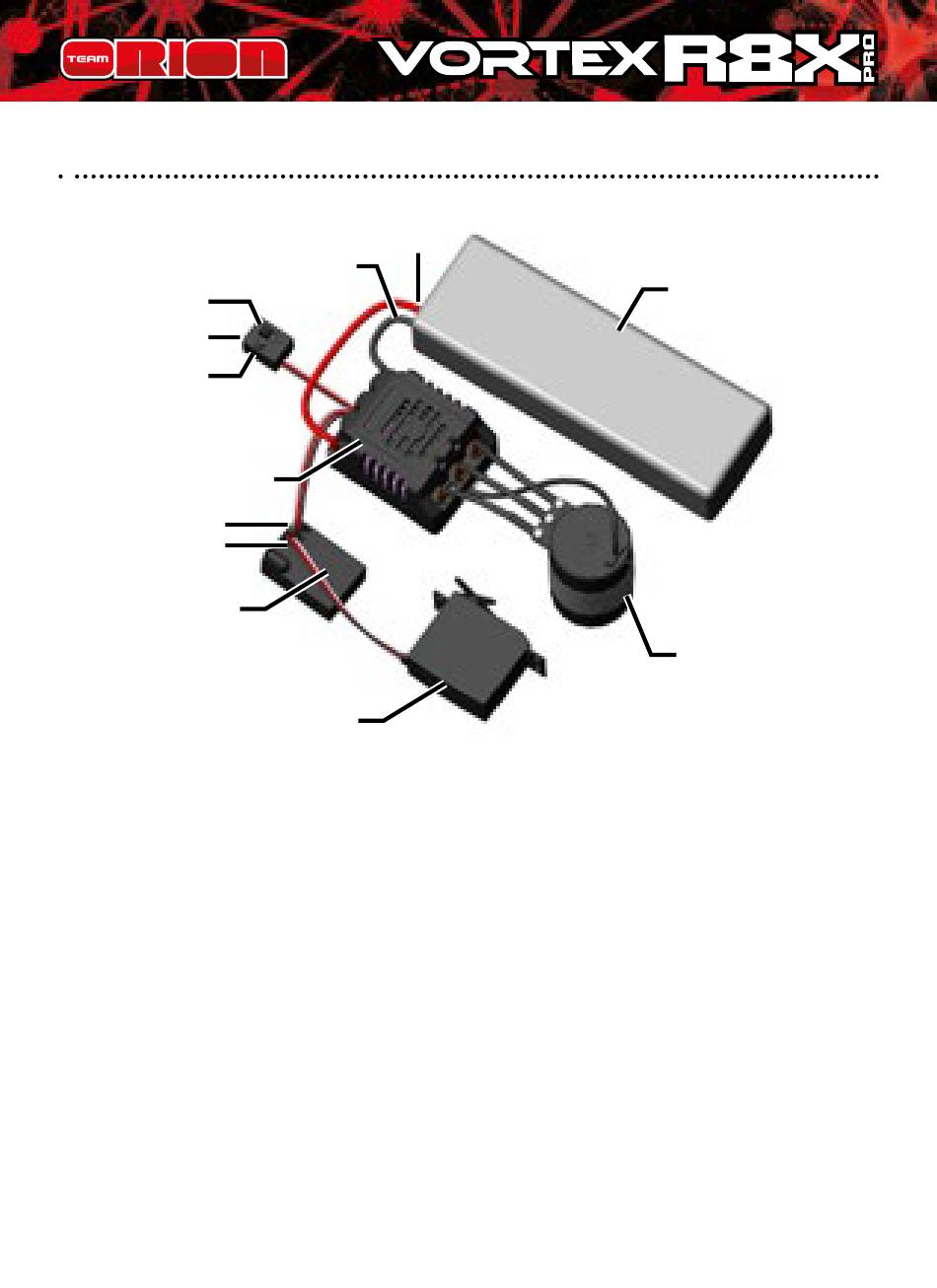

CONNECTIONS

On/Off
Switch
SET
Vortex R8X
TH/CH2
ST/CH1
Receiver
Sensorless brushless motors
When using a motor without sensors, if the motor spins in
the wrong direction, simply reverse two of the motor wires.
Sensor brushless motors
When using a motor equipped with sensors, the motor
should also be connected to the ESC via a sensor wire.
WARNING! When using sensor equipped motors, you must
respect the A-B-C wire connection order, you can't connect
the wires randomly or the motor will not spin at all!
www.teamorion.com
+ (red)
- (black)
Servo
Battery
Motor
