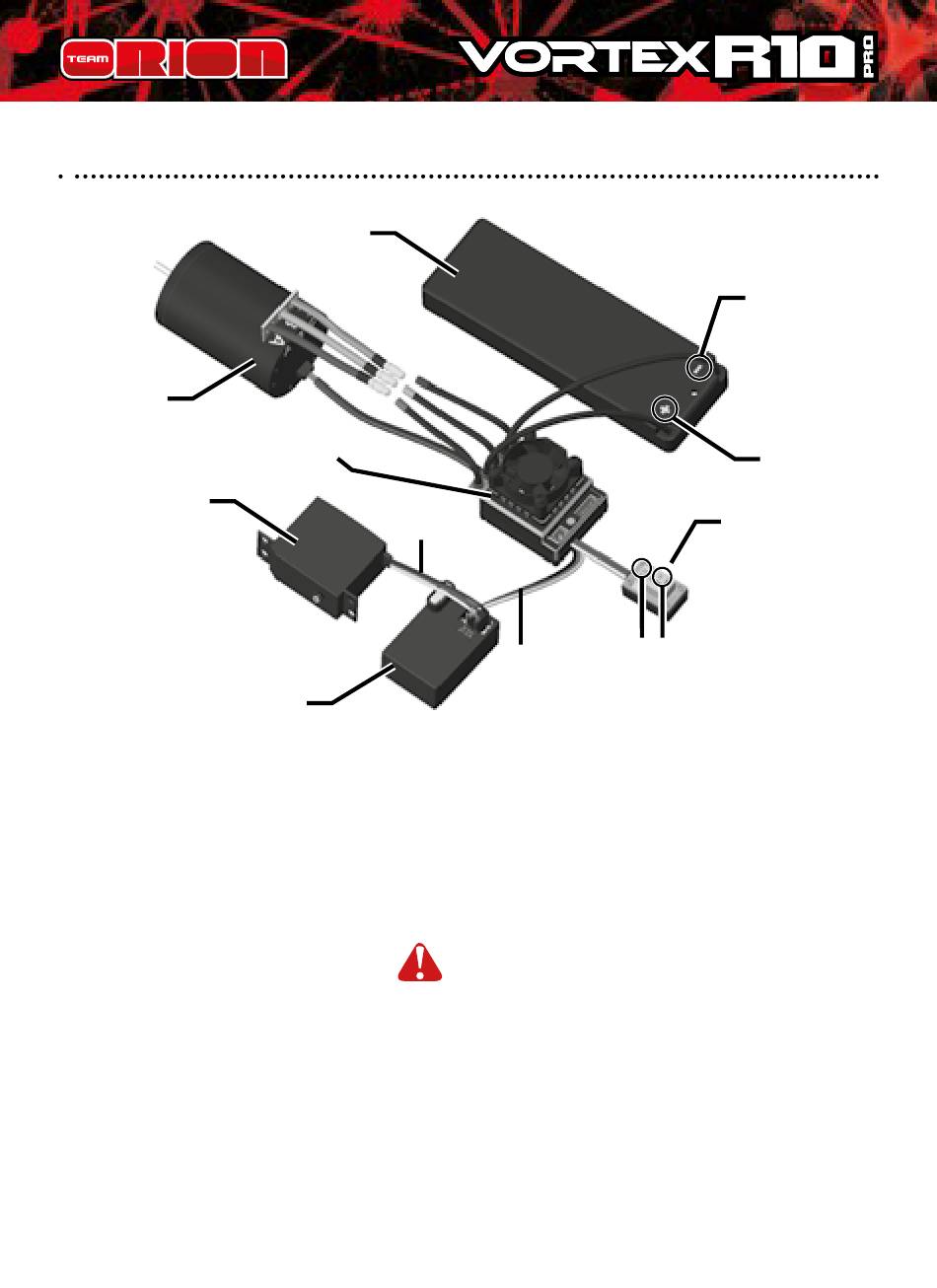

CONNECTIONS

Battery
- (black)
Motor
Vortex R10.1 Pro
+ (red)
Servo
Switch
ST/CH1
SET ON/OFF
TH/CH2
Receiver
Sensorless brushless motors: When using a motor without
sensors, if the motor spins in the wrong direction, simply
reverse two of the motor wires.
Sensor brushless motors: When using a motor equipped
with sensors, the motor should also be connected to
WARNING! When using
the ESC via a sensor wire
sensor equipped motors, you must respect the A-B-C wire
connection order, you can't connect the wires randomly or
the motor will not spin at all!
Note: The motor rotation direction cannot be changed in
the software.
