7. INSTALLING REFRIGERATOR IN
ENCLOSURE
NOTE: DO NOT install the appliance directly on car-
peting. Carpeting must be removed or protected by a
metal or wood panel beneath the appliance, which
extends at least the full width and depth of the appli-
ance.
RM 2191
RM 2193
Vent
Type
Dual Metal (inches)
Side Vents (mm)
Metal & Plastic (Inches)
Side Vents (MM)
Dual Plastic (Inches)
Side Vents (MM)
* Depth "D" Dimensions Requirement with Plastic Vent System is Dependant on Vehicle Side Wall Thickness. If the Vehicle Side Wall Thickness is less than
1,5 inches ( 38mm ), the Recessed Depth Dimensions will be required to be Increased Proportionally to the Vehicle Wall Thicknes.
A. INSTALLATION
The refrigerator must be installed in a substantial enclo-
sure and must be level. When installing the refrigerator
in the enclosure, all areas within the recess in which the
refrigerator is installed must be sealed from the living
space.
Make sure that there is a complete seal between the
front frame of the refrigerator and the top, sides and bot-
tom of the enclosure. A length of sealing strip is applied
to the rear surface of the front frame for this purpose
(FIG. 4).
The sealing should provide a complete isolation of the
appliance's combustion system from the vehicle interior.
NOTE: Be careful not to damage the sealing strip when
refrigerator is put in place.
Overall
Dimensions
Height Width Depth Height
A B C h
21-9/16 19-5/16 21-7/16 20-5/8
548 491 545 524
21-9/16 19-5/16 21-7/16 20-5/8
548 491 545 524
21-9/16 19-5/16 21-7/16 20-5/8
548 491 545 524

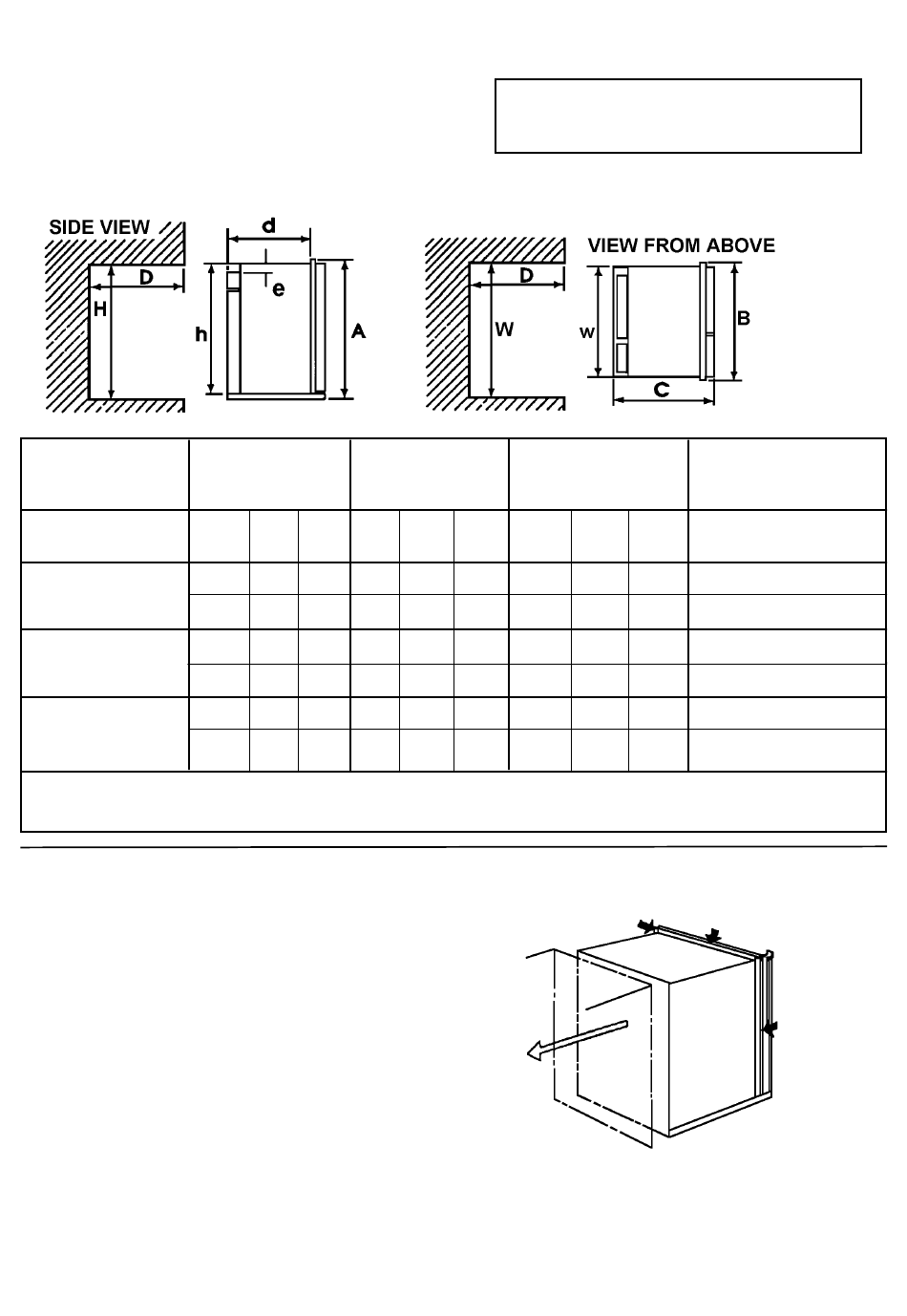

The dimensions shown in FIG.3 will give you
adequate space for service and proper
installation.
FIG. 3
Installation
Dimensions Dimensions
Width Depth Height
w d H
17-1/2 19-7/8 20-7/8
445 505 530
17-1/2 19-7/8 20-7/8
445 505 530
17-1/2 19-7/8 20-7/8
445 505 530
FIG. 4
4
Recessed Distance between
Top of condenser and
Top of refrigerator
Width Depth
W D
17-3/4 20-7/8
451 519
17-3/4 20-7/8
451 519
17-3/4 *20-7/8
451 *519
e
1/4"
6
1/4"
6
1/4"
6
