Back panel of the titrator TitroLine
Fig. 1
®

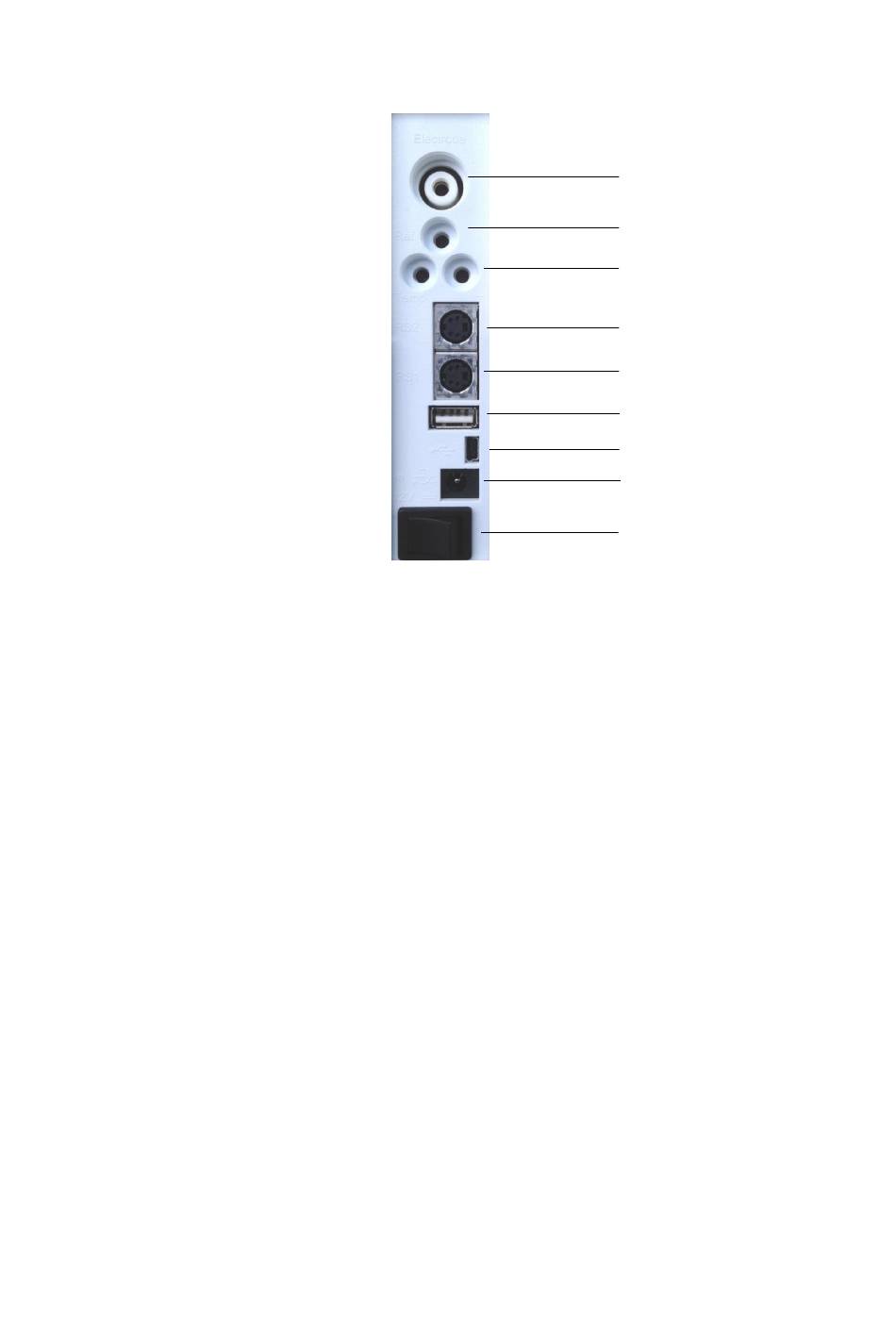

The TitroLine 5000 is equipped with the following connections:
1) Measurement input 1 (DIN or BNC through adapter) for the connection of pH, redox
and other measurement or combination electrodes
2) Measurement input for reference electrodes (Ref.)
3) Temperature measurement input for connecting Pt 1000/ NTC 30 electrodes
Two RS232 ports, 4-channel (Mini-DIN):
4) RS2 for connection of a weighing balance and other devices from SI Analytics
5) RS1 for connection to the PC
USB-A ("Master") interfaces for connecting USB devices
6)
7) USB-B interface for connection to a PC
8) Connection of the external power supply TZ 1853
9) On/Off switch
®
