3.

Wiring

•
Installation work should be performed by a qualified
electrician.
•
The fan is double insulated and must not be earthed.
•
The fan is fitted with a multi-pole switch and does not require
a pre-wired external switch.
1 Push the multi-pole switch up to position 0 – OFF.
2 The cable can be installed either along the surface using
entries A in the chassis or concealed using the B inlets in the
chassis. Both options are shown below. Use the insulating
sleeve supplied for the cable (FK).
3 If you use any of the B inlets, remove the concealed round plas-
tic cover by tapping inside the break-off notch from the inside
out to the back with a screwdriver, for example.

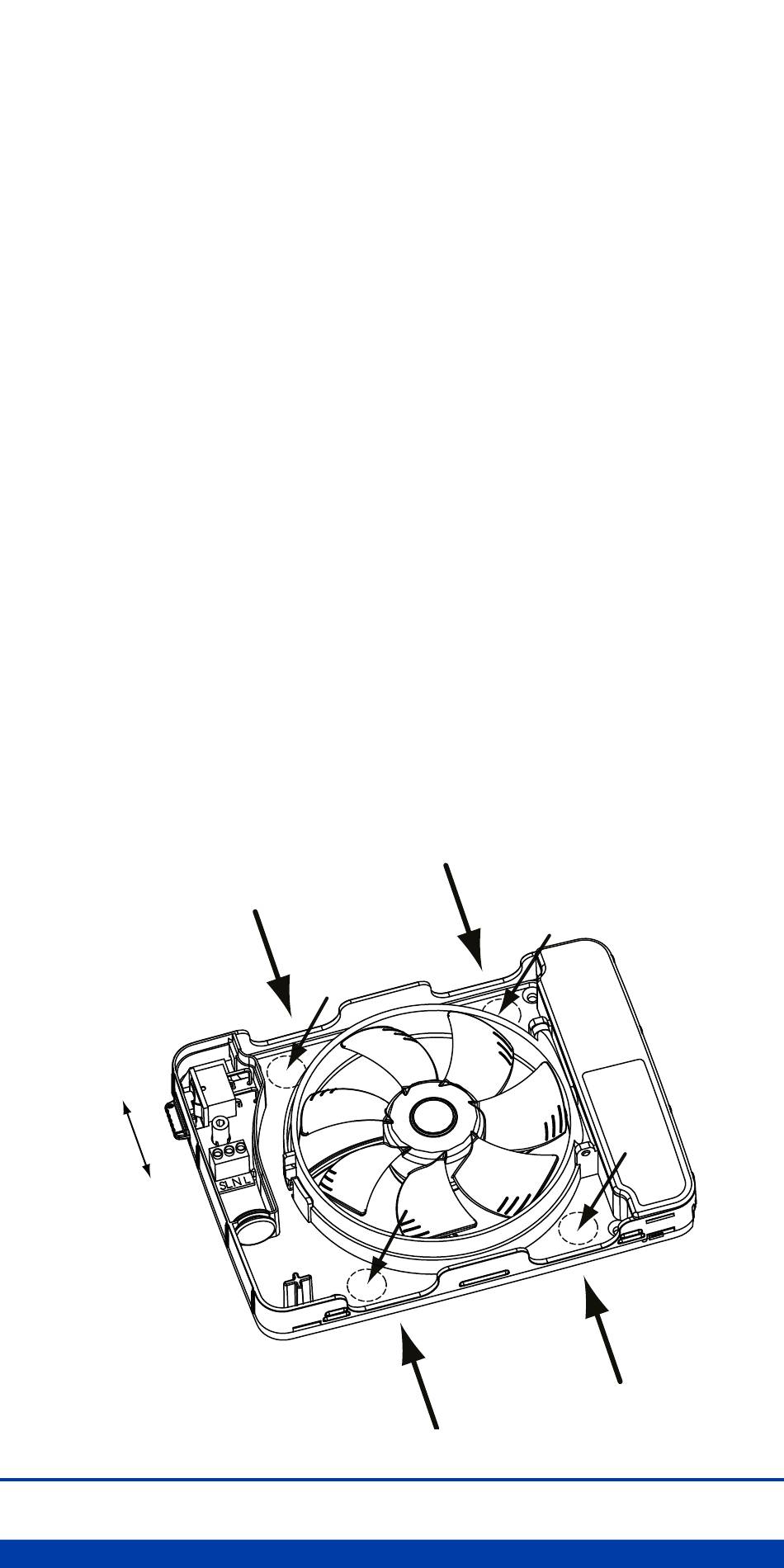

Cable entries
A=surface
B=concealed
OFF
ON
