INSTALLATION GUIDE

1.
Contents
The packaging should contain the following:
Fan
2 adapters, 1 x Ø98 mm and 1 x Ø118 mm
Manual
Accessory bag with 4 screws and plugs, a pull cord with
toggle, and insulation for the standard cable type (FK)
2.

Installation

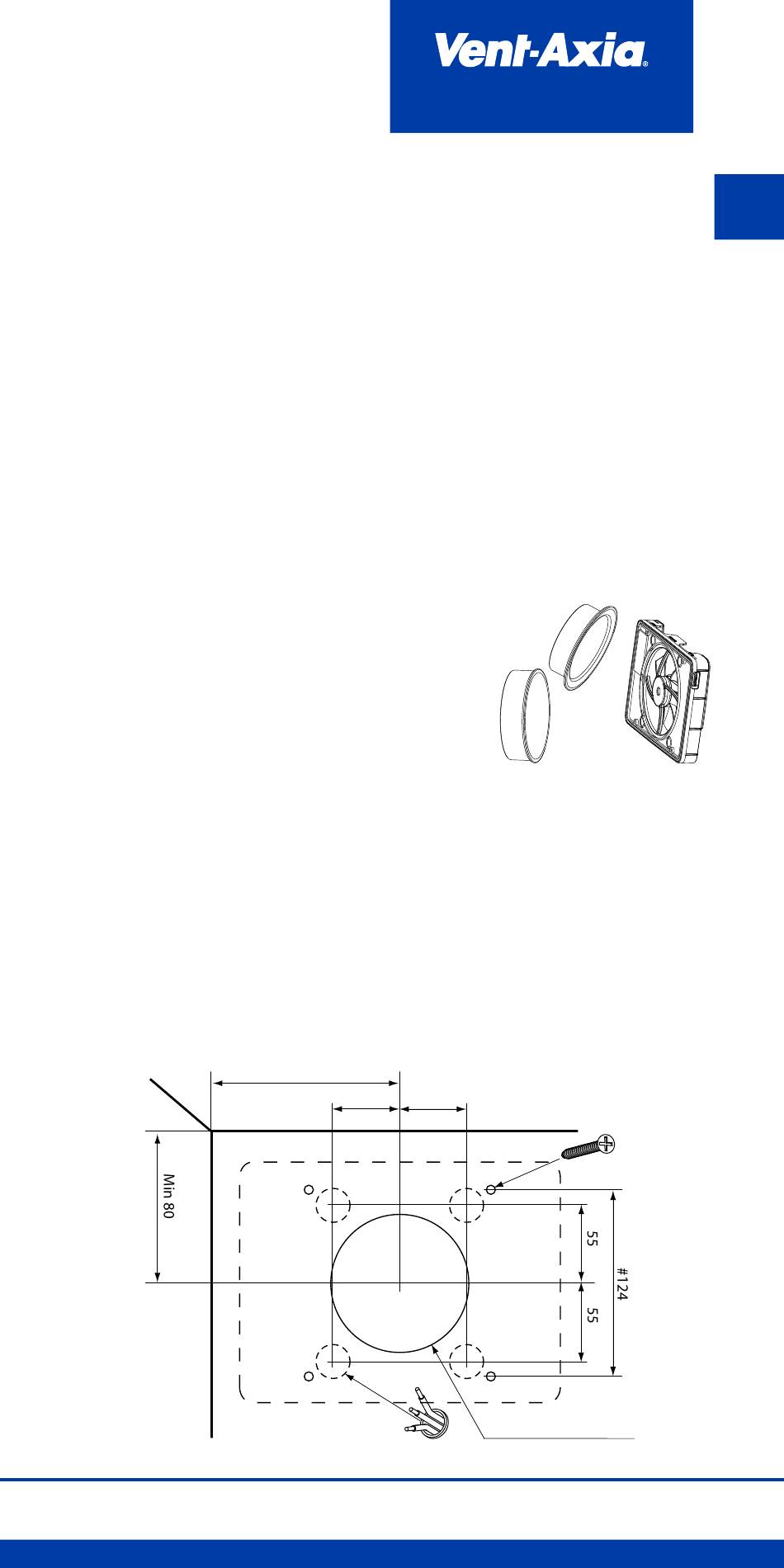

The fan can be installed on a wall or on
a ceiling. See the diagram below for
installation dimensions. The fan must not
be installed in an environment where the
temperature exceeds 50°C. Attach an
appropriate adapter to the fan's chassis,
Ø98 (1) for a Ø100 duct or Ø118 (2) for
a Ø125 duct.
The fan can also be installed and used without an adapter, so that
it is mounted completely on the surface, e.g. in the case of ducts
less than Ø98.When installing the fan, check that there is a seal
between the pipe/duct and wall/ceiling to prevent humid air from
penetrating the wall or ceiling. Use the accompanying screw and
plug, if necessary.
Min 120
45
Alt. x4
Lo-Carbon iQ Fan
1
2
45
Ø100 alt. Ø125
EN
x4
5
