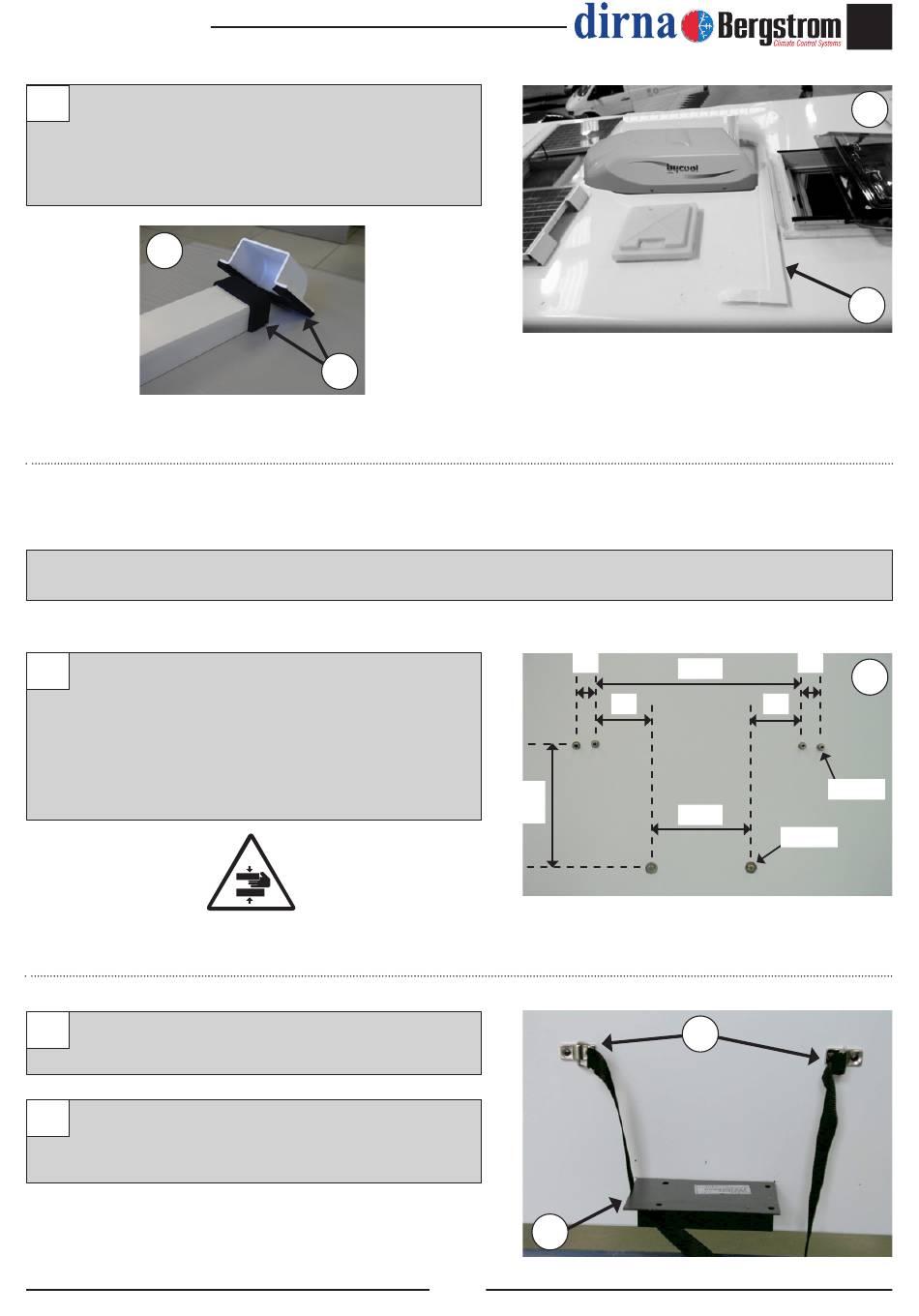

10 C- Place assembly joint.
D- Fasten grooves with Ø3.5x13 sheet thread
screws and seal all around to avoid water
from entering.
10
11 Present tank on most convenient place (inside,
in boot, etc), with lower support (in case it
can not rest on floor). Mark fastening points
(of lower support and both upper ones) and
drill holes respecting indicated diameters and
measures.
12 Fasten lower support (in case it is used) with (2)
sheet thread screws.
13 Assemble both upper supports for straps,
using (4) sheet thread screws. Place straps as
shown.
C
Water tank instructions
