CONCEPT

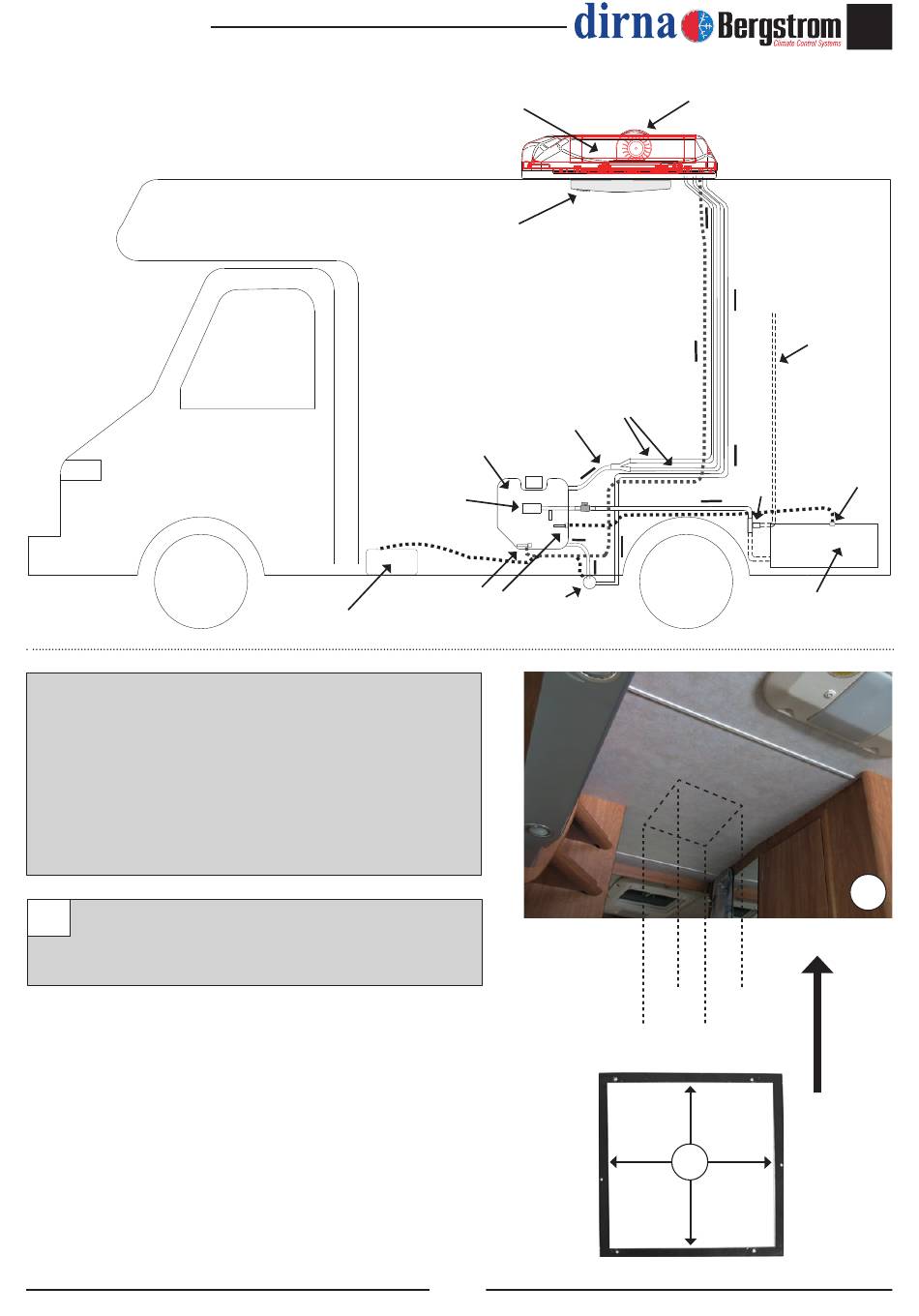

GENERAL VIEW

IF VEHICLE IS EQUIPPED WITH ORIGINAL
HATCH, THE SPACE CAN BE USED (REMOVING
HATCH) TO ASSEMBLE EVAPORATION SYSTEM,
IF NOT::
* Position evaporation system on roof, avoiding
friction with solar panels, aerials, etc. and taking
this reference, follow steps described below:
1 Present frame so that it is centred on roof (from
inside of passenger cell) and mark from inside
of outline.
FLOAT
ADDITIONAL
BATTERY
13
Air conditioning for vehicles
WET FILTER
ELECTRONIC CONTROL
- 8 air speeds
- 3 water pump speeds
- alarm clock function
- remote control
MARKED
WITH TAPE
RETURN
HOSE
BYCOOL
TANK
LEVEL WATER
SENSOR PUMP
CENTRIFUGAL BLOWER
ORIGINAL HOSE
ORIGINAL SWITCH
OF ELECTRIC VALVES
PROVIDED "T"
VEHICLE
TANK
1
