dirna Bergstrom bycool FLAT CONCEPT Instructions De Montage page 14

CONCEPT
EN
2

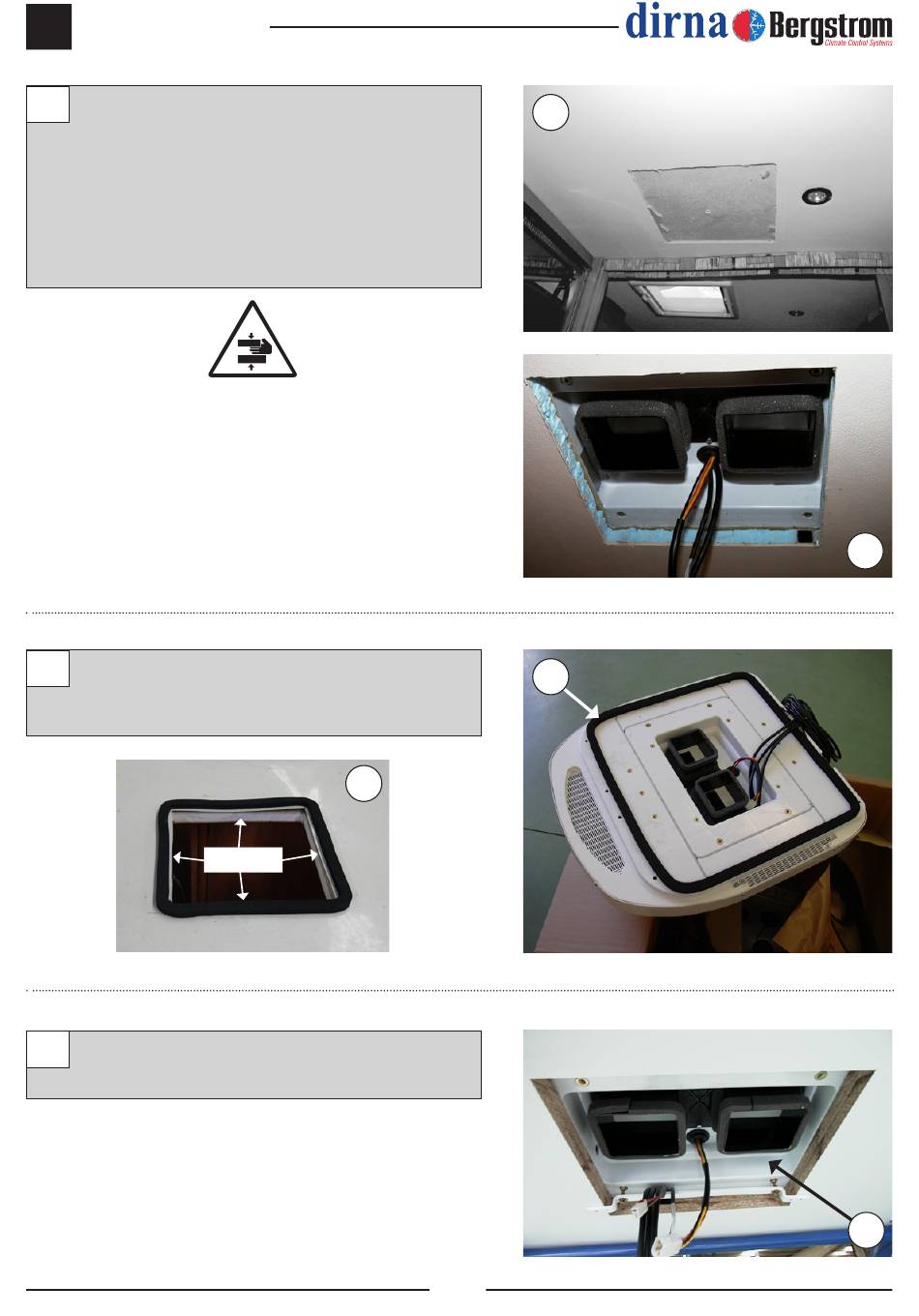

Drill (4) holes on corners of mark from inside of
vehicle and join these holes from outside. Cut
padding and false roof (using knife or cutter )
and then cut from outside with jigsaw and using
previously made mark as guide.
BE CAREFUL WHILE CUTTING, POSSIBILITY
OF FINDING CABLES PASSAGE.
3
Place assembly joint around cut and in lower part
of evaporation system, as indicated on picture.
Seal inside with silicone.
4 Assemble evaporation system from outside and
from inside, centre it on cut made in roof.
3
silicona
2
3
14
Air conditioning for vehicles
2
4
