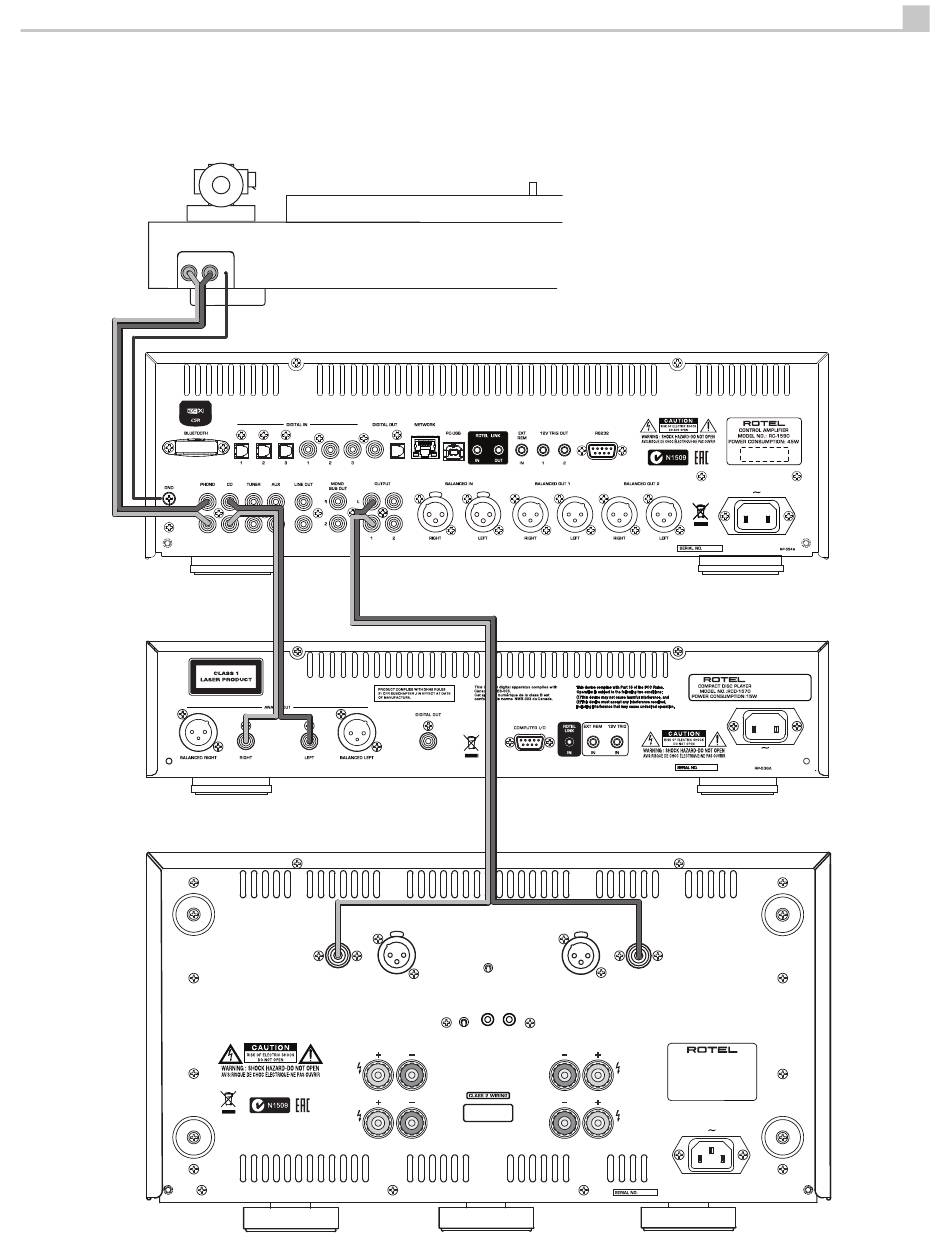

Figure 3: Analog Input and Output Connections
Branchements des entrées et sorties analogiques
Analoge Ein‑ und Ausgangsanschlüsse
Entradas y Salidas Analógicas
R
L
R
L GND
L
R
RIGHT INPUT
UNBALANCED BALANCED
RIGHT SPEAKER
Analoge ingangen en uitgangen
Collegamenti ingressi ed uscite analogici
Anslutningar för analoga in‑ och utgångar
Аналоговые входы и выходы
PH0NO
PUSH PUSH
BALANCED
PUSH
BALANCED
UNBALANCED
12V TRIGGER
ON
OFF IN OUT
LEFT SPEAKER
SPEAKER IMPEDANCE
COMBINED LOAD
4 OHMS MINIMUM
ROTEL RC-1590
ROTEL RCD-1570
ROTEL RB-1590
LEFT INPUT
UNBALANCED
PUSH
POWER AMPLIFIER
MODEL NO. : RB -1590
POWER CONSUMPTION : 800W
RP-553
