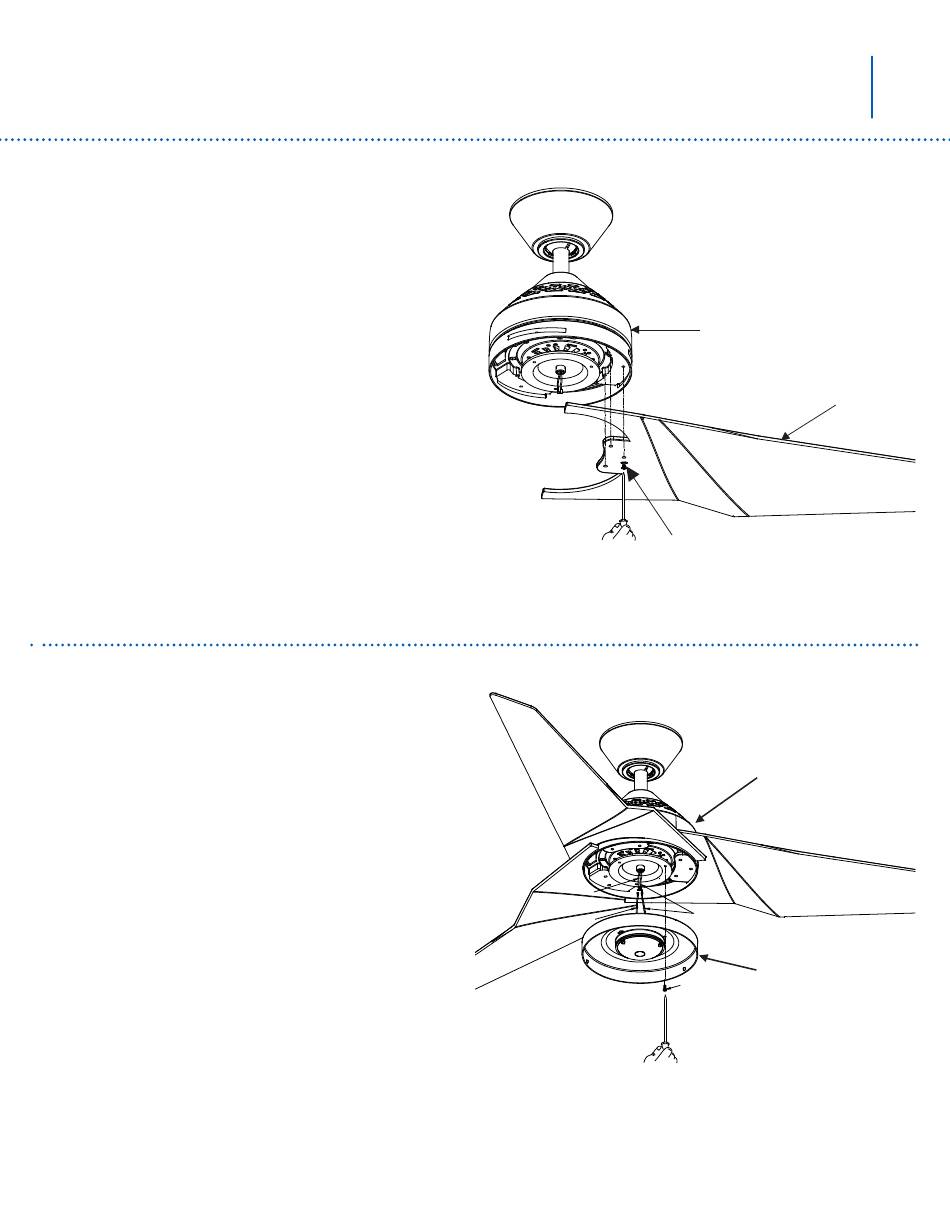

9. ATTACHING THE FAN BLADES

Step 1. Attach a blade to the fan motor assembly
by first inserting the blade into the slot in the side
of the fan motor assembly.
Step 2. Insert a screw into the bracket. Repeat for
the two remaining screws.
Step 3. Tighten each screw securely.
Step 4. Repeat these steps for the remaining
blades.

10. INSTALLING THE LIGHT FIXTURE

Step 1. Remove one screw from the black
bracket below the fan motor assembly. Loosen,
but do not remove the other two screws.
Step 2. Connect the blue wire exiting the bottom
of the fan motor assembly with the black wire
from the top of the light fixture.
Step 3. Connect the white wire exiting the bottom
of the fan motor assembly with the white from the
top of the light fixture.
Step 4. Attach the light fixture to the fan motor
assembly by securing with the two screws
loosened in first step. Push the light fixture up to
engage the screw heads in the screw slots and
turn to secure. Tighten each screw firmly.
